5 Pcs Silicone Thermal Pad 100x100x0.5mm High Conductivity 1.5W/m-K CPU/GPU Heat Transfer Sheet for Electronics, LED, Heat Sink Cooling

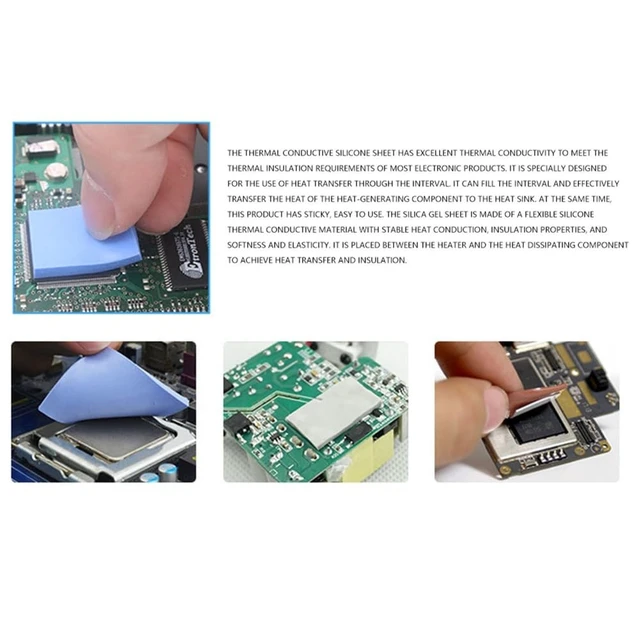

Silicone thermal conductivity pads designed for efficient heat transfer in electronic devices. These pads measure 100 x 100 x 0.5mm with a thermal conductivity coefficient of 1.5W/m-k

Suitable for various applications including graphics card cooling, high-speed hard drives, power supply units, and LED industry components. The flexible material allows easy installation without additional adhesives

Specifications:

Item Type:Thermal Conductive Pad

Size:100 x 100 x 0.5mm / 3.94 x 3.94 x 0.02in

Color:Blue

Thickness Tolerance:0.2+-0.01

Continuous Using Temperature:250

Conductivity Coefficient:1.5W/m-k

Volume resistivity:5*10^12(ohm-cm)

Breakdown voltage:10KV

Hardness:30±5 Shore A

Proportion:2.4

Tensile strength:0.34Mpa

Dielectric Constant:5.5

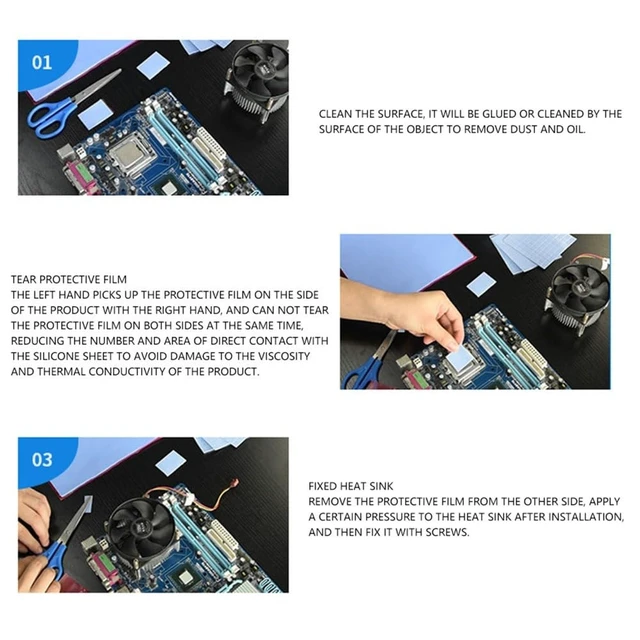

Users Manual:

1.Clean the surface

Clean the surfaces of the objects to be bonded, removing dust, oil grease, etc

2.Tear off the protective film

Hold the product with the left hand and tear off the protective film on one side of the product with the right hand. Do not tear off the protective films on both sides at the same time. Reduce the frequency and area of direct touch with the silicone sheet to avoid damage to the adhesiveness and thermal conductivity of the product.

3.Fix the heat sink

Tear off the protective film on the other side, apply a certain pressure to the heat sink after installation, and then fix it with screws

Package List:

5 x Thermal Conductivity Pad

Note:

1. Due to the difference between different monitors, the picture may not reflect the actual color of the item

2. Please allow slight dimension difference due to different manual measurements. Thank you for your understanding
