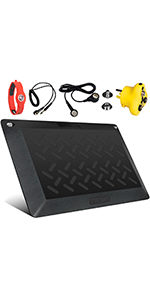

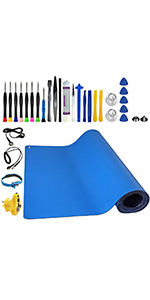

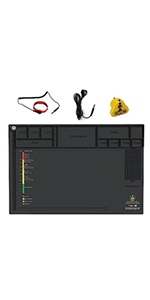

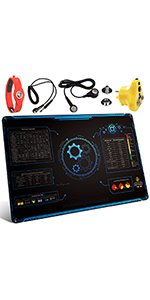

 Anti Static Rubber Mat |  ESD Floor Anti-Fatigue Mat |  ESD Soldering Mat Silicone |  Anti Static Table Pad Kit |  Large Grounding Mat | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — no data | — no data | — no data | — no data |
| Surace R.S. | 10E3-10E5 Ohms | 10E6-10E9 Ohms | 10E3-10E5 Ohms | 10E6-10E9 Ohms | 10E3-10E5 Ohms |
| ESD Plug | OK | OK | OK | OK | OK |
| Wrist Strap | Silicone | Silicone | Silicone | Fabric | Silicone |
| Grounding Cord | 10Ft | 10Ft | 10Ft | 10Ft | 10Ft |
| Applications | For Table, Repair,Soldering, PC Building EPA&Cleanroom | For Floor, Anti-Fatigue, EPA&Cleanroom | For Table, Repair,Soldering EPA&Cleanroom | For Table and Floor Repair,Soldering, PC Building EPA&Cleanroom | For Human Grounding Improve Sleep,Eliminate Static, Release Anxiety |
About KooMall
KooMall is a brand focused on producing anti-static products. We can not only protect your electronic components from static damage, but also protect your harm from static electricity
INSTRUCTION

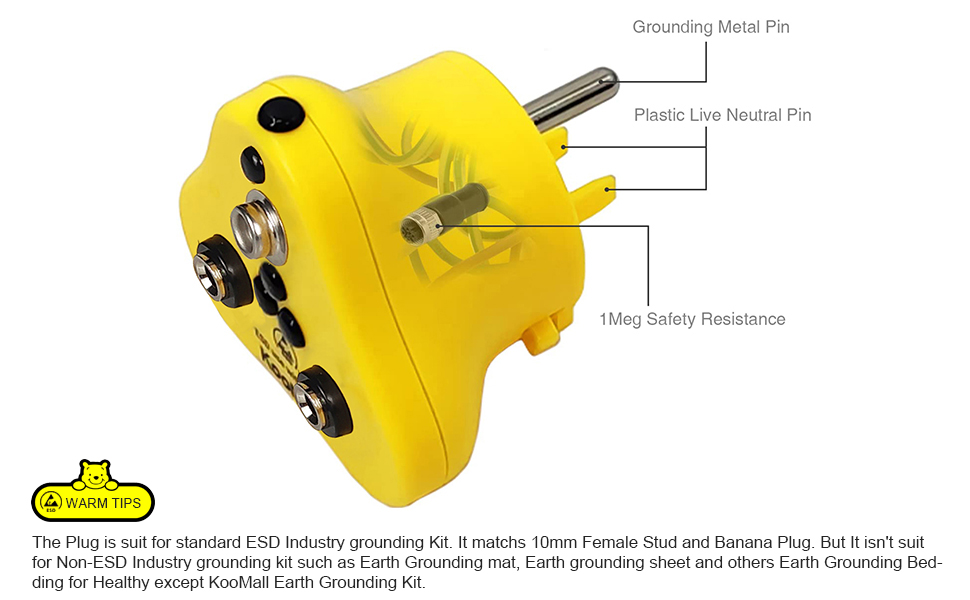

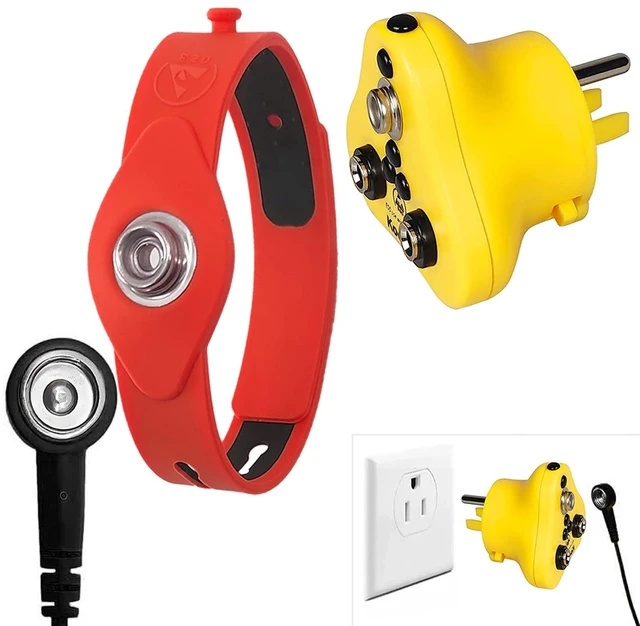

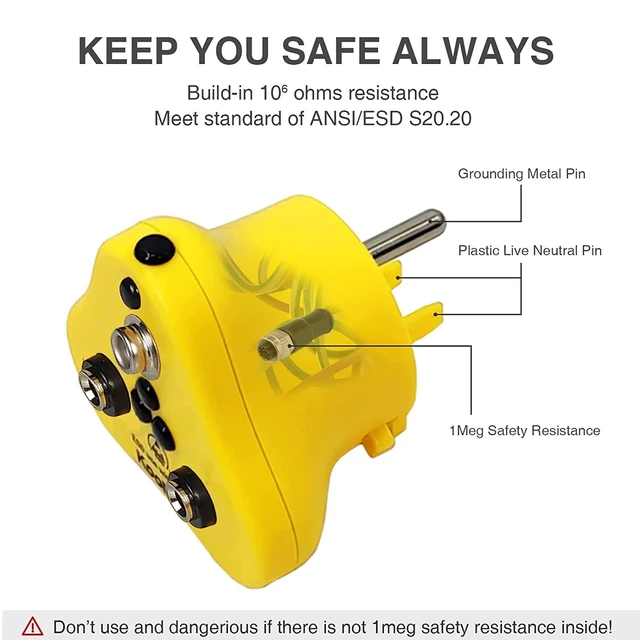

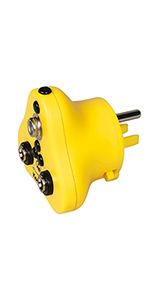

The plug fits directly in to the mains supply socket, connecting with only the earth conductor. Live and Neutral pins have been molded in insulating plastic, fitting into the supply socket but completely dormant.
The 1M Ohm resistor to each connector offer protection in the event the workstation becomes live. That protection would limit the current to less than 0.3mA at 240 volts. Should the fault current continue the resistor will open circuit.

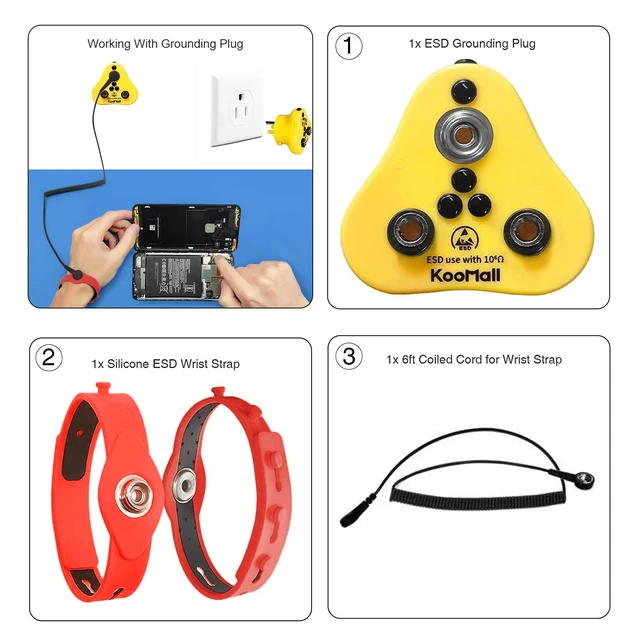

IInsert the plug into the supply socket making sure it is fully home, then connect the various elements of the EPA...such as ESD wrist strap,ESD Mat, Grounding Cord,Equipment and so on. This ensures that the EPA is at the same earth potential. As generally the workstation has more than one plug socket it is possible to use more than one EBP if more connections are required
The EBP is sealed and cannot be opened for repair. To test each connection use a multi-meter from the connector to the earth pin. The reading should be between 0.9 and 1.1M Ohms. As each connection point has its own 1M Ohm resistor, the resistance between two connectors should be approximately 2M Ohms. All EBP's are tested and then packed.
Applications

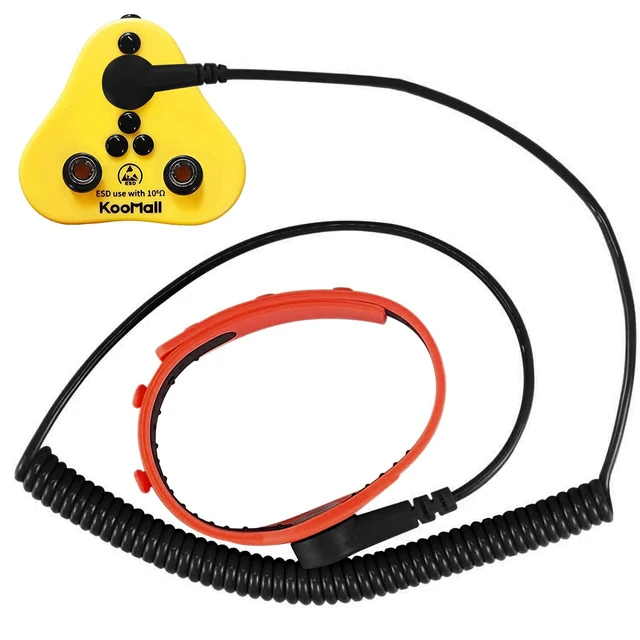

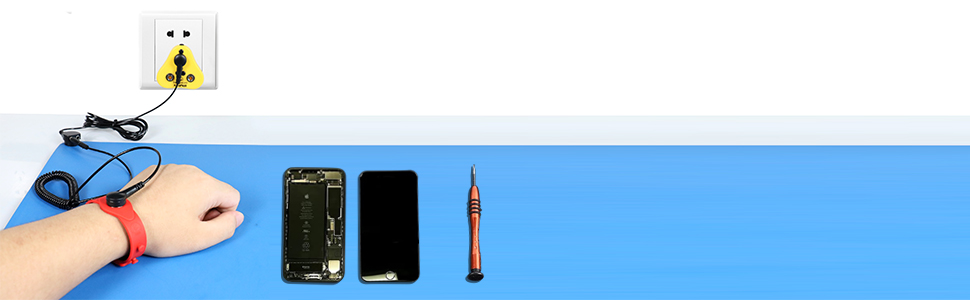

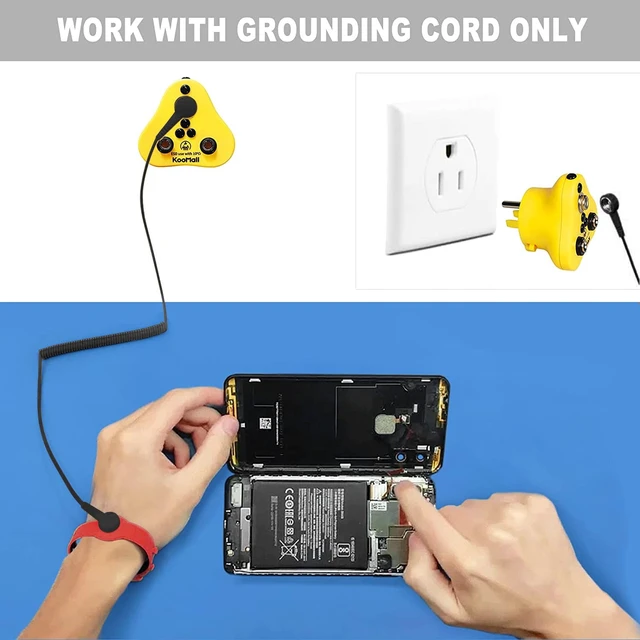

Work with Wrist strap

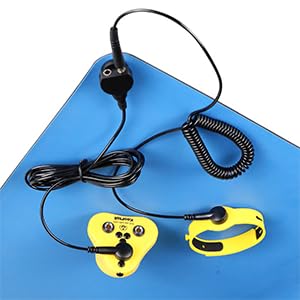

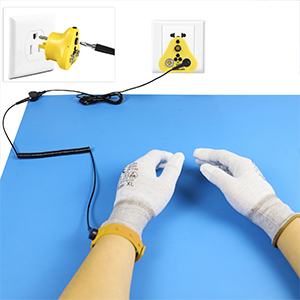

Work with ESD Mat

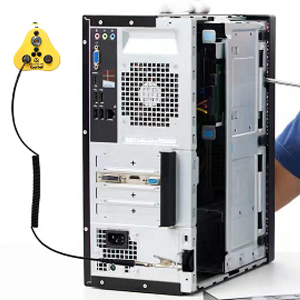

Work with Equipment

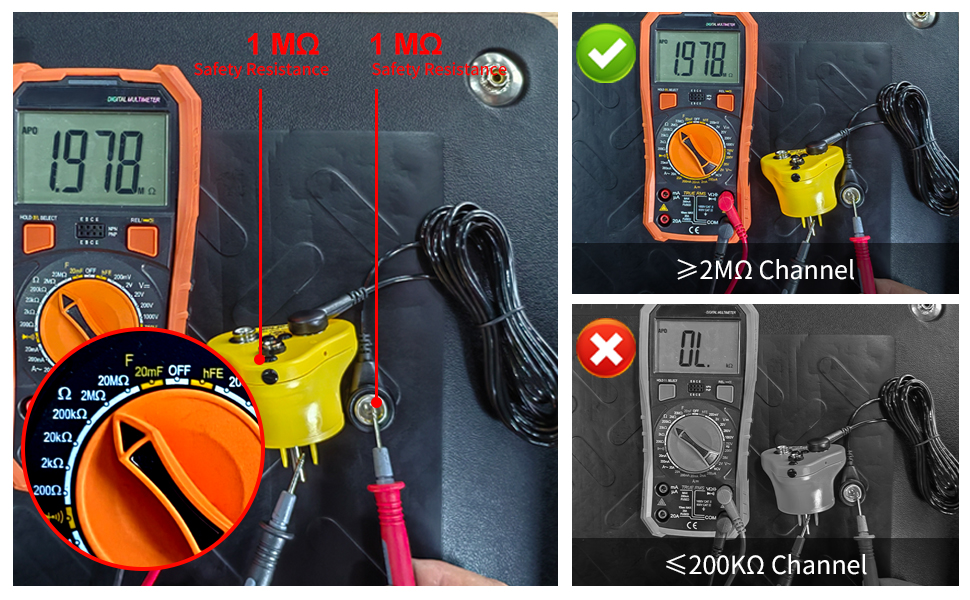

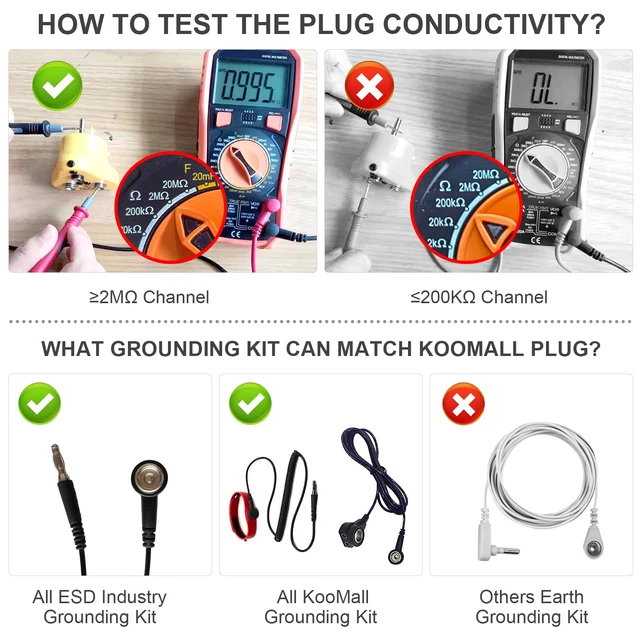

How To Test The Conductivity
KooMall ESD kit system resistant is 1-3M Ohms. There is 1M Ohms Safety Resistor in each grounding part. That is, there is 1M ohms in ESD Plug, ESD Wrist Strap Coiled Cord and Grounding Cord. So, when you test any part of conductivity by multimeter. You need to choose the right channel which resistance is more than 2M Ohms. Otherwise, there is not any value in multimeter.

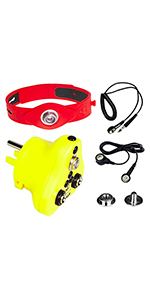

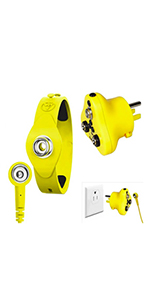

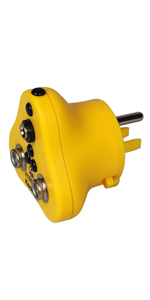

 ESD Plug |  ESD Plug |  ESD Wrist Strap kit |  ESD Wrist Strap kit |  ESD Grounding kit |  ESD Grounding kit | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — no data | — | — no data |
| ESD plug | 1xStud + 2xBanana Jacks | 2xStud + 1xBanana Jacks | 1xStud + 2xBanana Jacks | 1xStud + 2xBanana Jacks | 1xStud + 2xBanana Jacks | 2xStud + 1xBanana Jacks |
| Built-in 1M Ohms | YES | YES | YES | YES | YES | YES |
| ESD Wrist Strap | NO | NO | 1PCS | 1PCS | 1PCS | 2PCS |
| Grounding Cord | NO | NO | NO | NO | YES 10Ft | YES 10Ft |
| 10mm Stud | NO | NO | NO | NO | YES | NO |
