Black conductive rubber
Blue conductive ribbon
Blue dissipative rubber

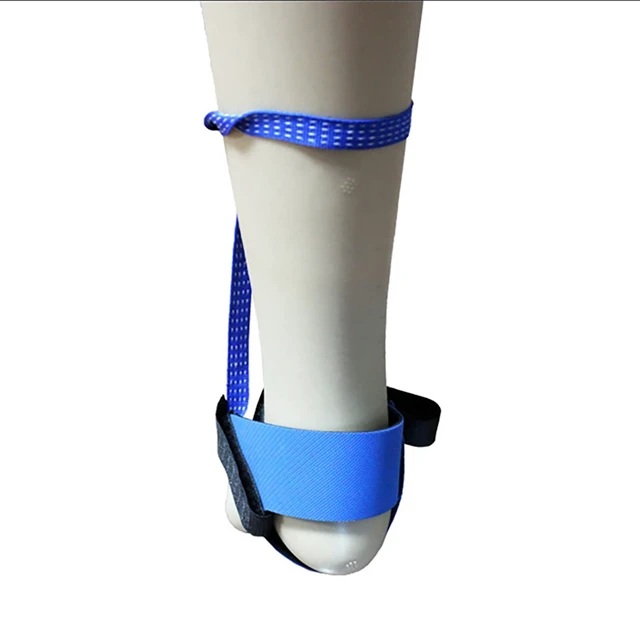

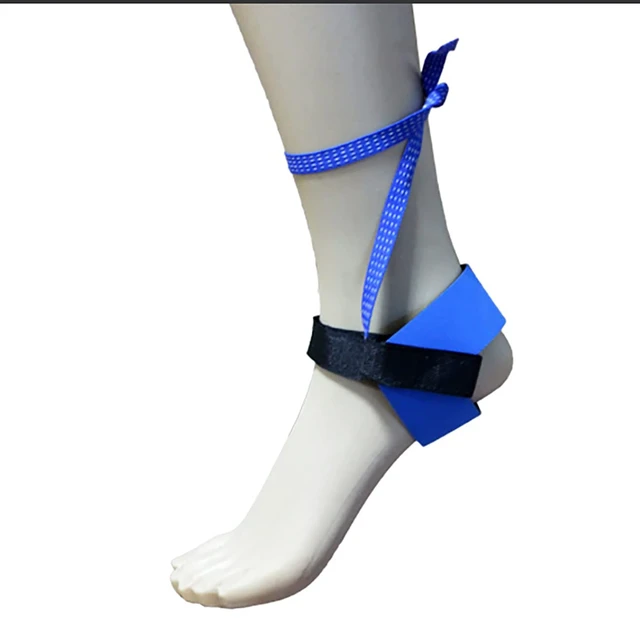

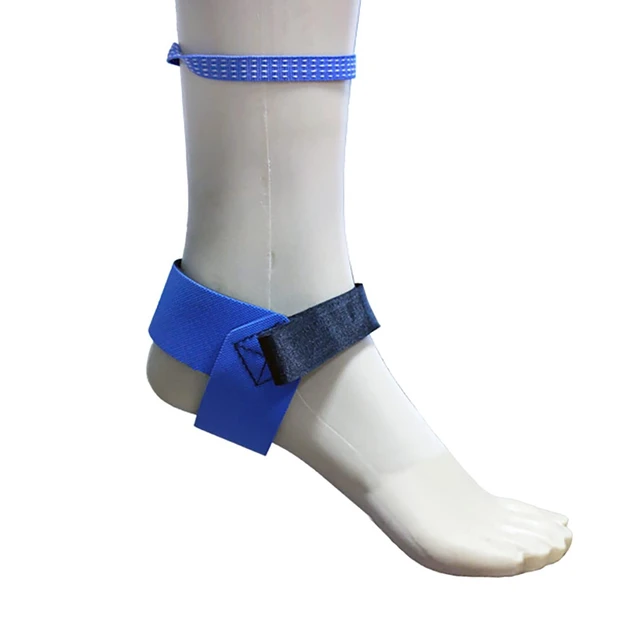

- 1. ESD heel straps allow freedom of movement around the EPA environment without the restriction of a wrist strap ground cord leashing you to a bench.
- 2. The nylon ribbon should make contact with skin, or at minimum, with the sweaty moisture in your shoes in order to provide a path to ground for the static electricity.
- 3. Anti-static foot grounder avoids the earthing line when walking in the range of conductive area and is the best choice of workshop and garage.
- 4. The principle is that the earthing line in socks will remove static of body through earthing foot grounder, conductive mat and the earthing line. So the earthling line must contact with skin.
- 5. The user should wear the two-foot grounder and avoid walking on the area without static protection.
Features:

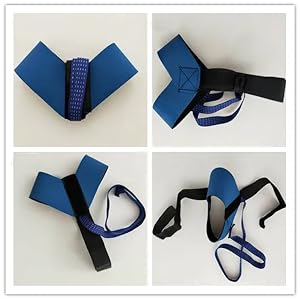

- 1. Size adjustable velcro across foot

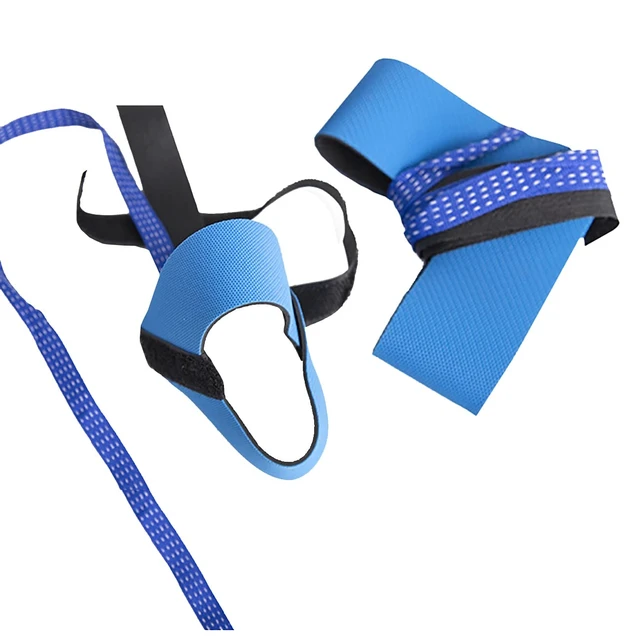

- 2. Two-layer durable rubber leather with anti-slip texture grounder
Bottom layer towards floor, in blue dissipative rubber 10*6O - 10*9 O
Top layer towards shoes, in black conductive rubber 10*3 O - 10*5 O
- 3. A buried meg ohm resistor
- 4. Blue 30cm conductive ribbon 10*3 O
- 5. Application:Product line, CMOS chip, microprocessor, semiconductor, dish drivers, LCD screen product, circuit product line, precision instrument, optics part and so on
Specifications:

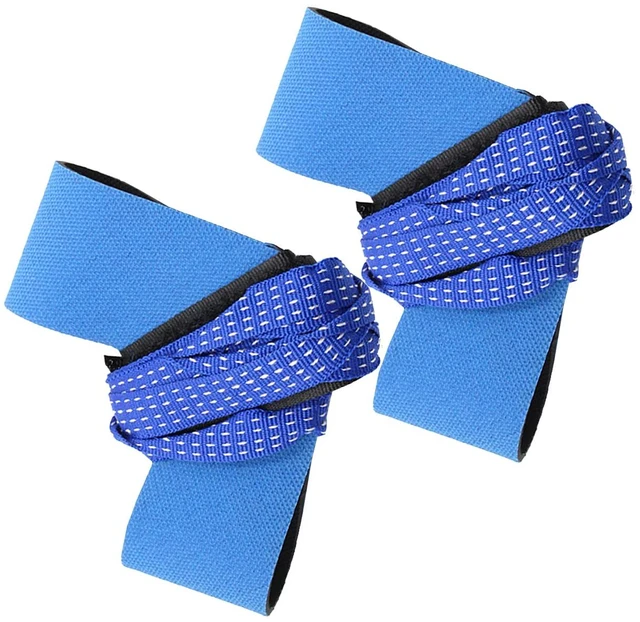

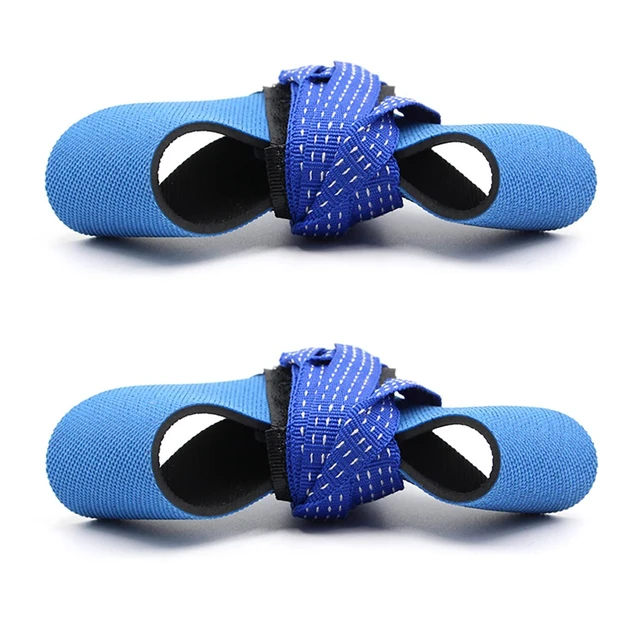

- Product Name: ESD Heel Strap
- Resistor: 1 Meg ohms
- Charge Decay: < 0.1 Sec
- Material: 2-layer rubber + conductive ribbon
- Ribbon Size: 15mm width, 300mm long

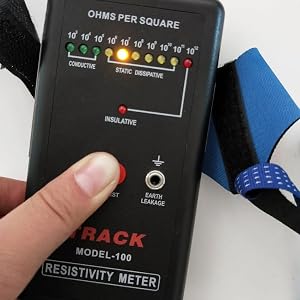

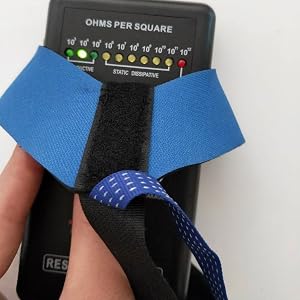

- Surface Resistance:
- blue dissipative rubber: 10*6O - 10*9 O
- black conductive rubber: 10*3 O - 10*5 O
- conductive ribbon: 10*3 O
