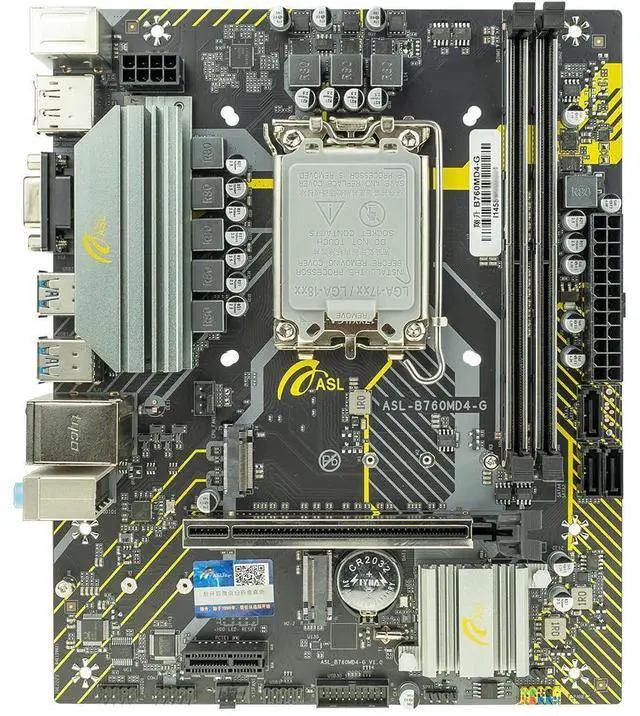

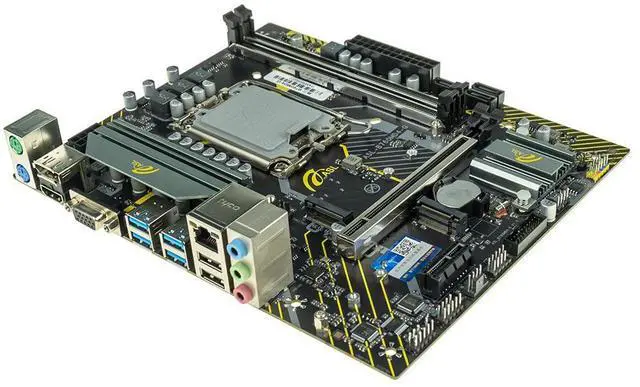

ASL B760MD4-G Motherboard - Supports 12/13th Gen LGA1700, 2×DDR4 64GB, DP/HDMI/VGA, 2.5G LAN, 2×M.2 + 3×SATA3.0

Product Model: ASL B760MD4-G

Chipset Platform: Intel B-series Desktop High-Speed Chipset

Form Factor: M-ATX

Dimensions: 180 x 220 mm

Processor:

Supports Intel 12th Gen Core/Pentium/Celeron processors based on LGA1700 socket

Supports Intel 13th Gen Core/Pentium/Celeron processors based on LGA1700 socket

Memory Slots:

2x DDR4 DIMM dual-channel memory slots

Maximum support: 64GB

Memory frequency support depends on motherboard/processor

Video Output Ports:

Requires integrated graphics functionality from the processor

Rear 1x DisplayPort video output port

Rear 1x HDMI video output port

Rear 1x VGA video output port

Audio:

Integrated Realtek audio chip

Supports High Definition Audio technology

Rear 3-jack audio ports

Supports 5.1 surround sound

Network:

Integrated Realtek network chip

Supports 2.5Gbps

Rear 1x RJ45 Ethernet port

Storage:

3x SATA 3.0 6.0Gb/s hard drive interfaces

1x M.2 SSD interface (PCIe 4.0 x4, NVMe protocol only, marked M2-3, below CPU socket)

1x M.2 SSD interface (PCI-E3.0 x4, NVMe/SATA protocol adaptive, marked M2-2, left of battery)

Expansion Slots:

1x PCIe x16 slot

1x PCIe x1 slot

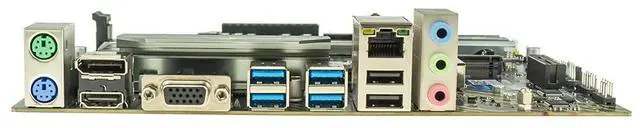

Rear Panel Connectors:

1x PS/2 keyboard/mouse port

1x DisplayPort video output

1x HDMI video output

1x VGA video output

4x USB 3.2 ports

2x USB 2.0 ports

1x RJ45 Ethernet port

1x 3-jack audio port

Internal Pins/Connectors:

1x 24-pin motherboard power connector

1x 8-pin CPU power connector

1x 4-pin CPU fan header

1x 4-pin system fan header

1x COM port header

1x Front audio header

1x Front USB 2.0 header

1x Front USB 3.0 Pin Header

1x 4-Pin External Buzzer Pin Header

1x 2-Pin CMOS Clear Pin Header

1x Front Audio Pin Header

1x Front Panel Pin Header
