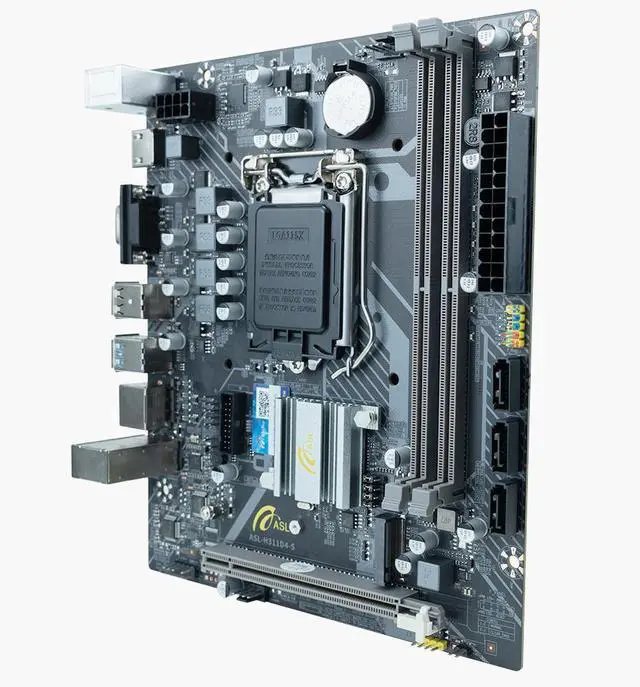

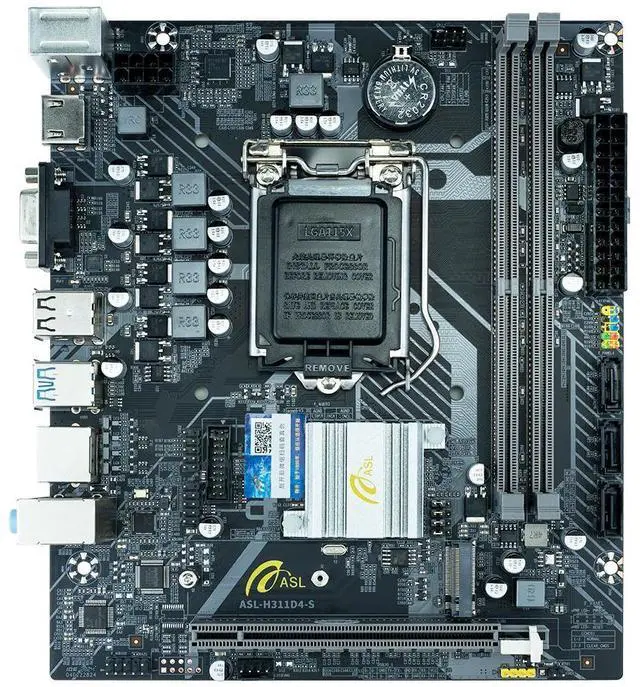

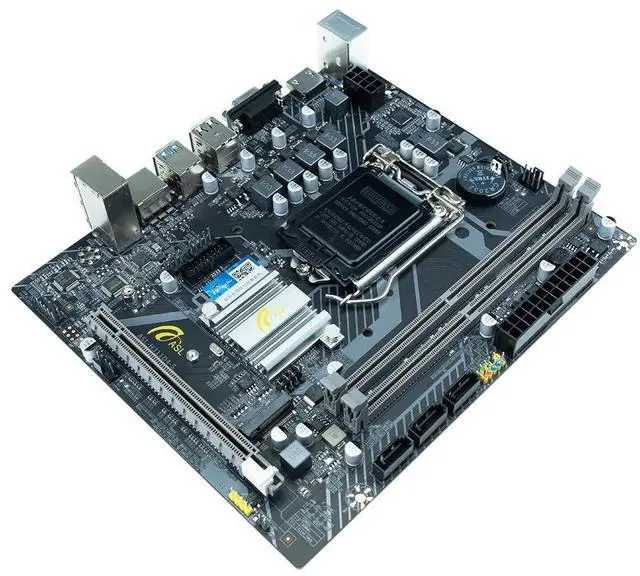

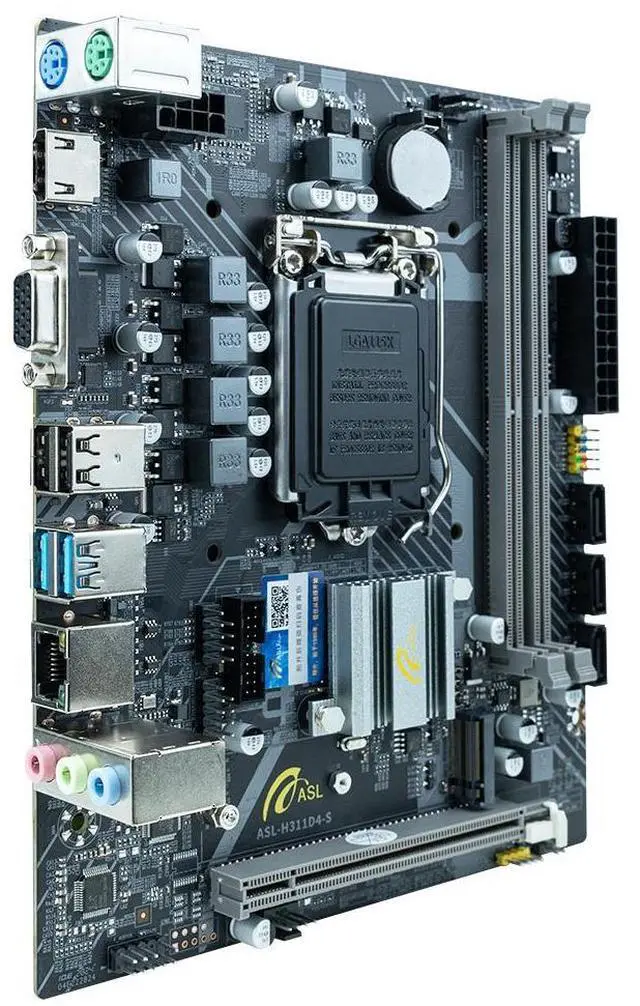

ASL H311D4-S M-ATX Motherboard - Supports 6-9th Gen LGA1151, 2×DDR4 16GB, HDMI+VGA, 3×SATA3 + M.2, Gigabit LAN
Limited time offer, ends 01/31 By STELLAR
- 1.CPU Compatibility: Supports 6th to 9th generation LGA1151 processors (including Core/Pentium/Celeron series)
- 2.Memory Specifications: 2×DDR4 dual-channel, up to 16GB with auto-adapting frequency
- 3.Video Output: HDMI + VGA dual interfaces (requires processor-integrated graphics)
- 4.Storage Expansion: 3×SATA 3.0 + 1×M.2 (supports protocol jumper switching)
- 5.Network Capability: Integrated 1000M gigabit Ethernet controller, ensuring stable connectivity
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Model: ASL H311D4-S
Chipset Platform: Intel H-series High-Speed Chipset
Form Factor: M-ATX
Dimensions: 170 x190 mm
Processor:
Supports Intel LGA1151 processors
Supports Intel 6th, 7th, 8th, and 9th generation processors
Supports Intel Core / Pentium / Celeron series processors
Memory Slots:
2x DDR4 DIMM dual-channel memory slots
Supports up to 16 GB
Memory frequency support depends on motherboard/processor
Video Output Ports:
Requires processor-integrated graphics functionality
Rear 1x HDMI video output port
Rear 1x VGA video output port
Audio:
Integrated Realtek audio chip
Supports High Definition Audio technology
Rear 3-jack audio ports
Supports 5.1 surround sound
Network:
Integrated Realtek network chip
Supports 1000M
Rear 1x RJ45 Ethernet port
Storage:
3x SATA 3.0 6.0Gb/s hard drive interfaces
1x M.2 SSD interface (protocol switchable via jumper)
Expansion Slots:
1x PCI-E x16 slot
Rear Panel Ports:
1x PS/2 keyboard/mouse port
1x HDMI video output port
1x VGA video output port
2x USB 2.0 ports
2x USB 3.0 ports
1x RJ45 Ethernet port
1x 3-jack audio port
Internal Pins/Connectors:
1x 24-pin motherboard power connector
1x 8-pin CPU power connector
1x 4-pin CPU fan header
1x 4-pin system fan connector
1x Front audio connector
1x M.2 SSD protocol switch jumper
1x Front USB 3.0 connector
1x Front USB 2.0 connector
1x 4-pin external speaker connector
1x 2-pin CMOS clear jumper
1x Front panel connector
