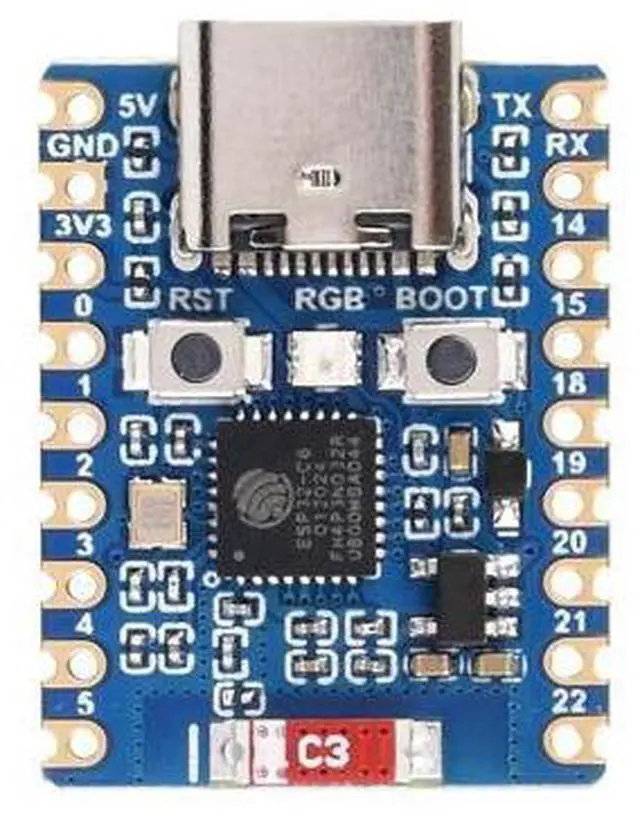

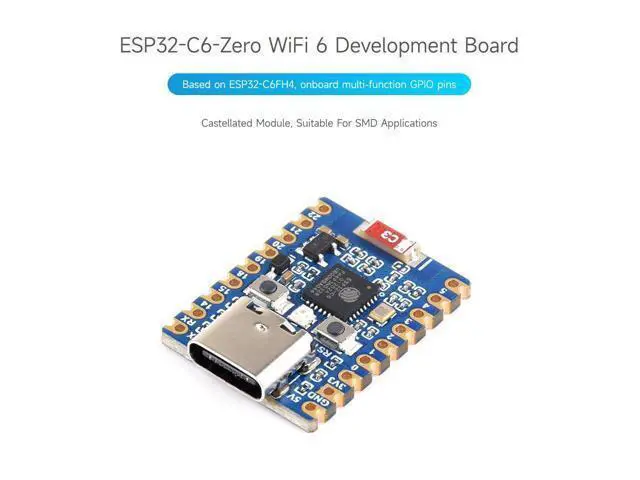

ESP32-C6 Mini Development Board, Based On ESP32-C6FH8, Dual Processors, 160MHz Running Frequency, 2.4GHz WiFi 6 & Bluetooth 5, ESP32 Development Board

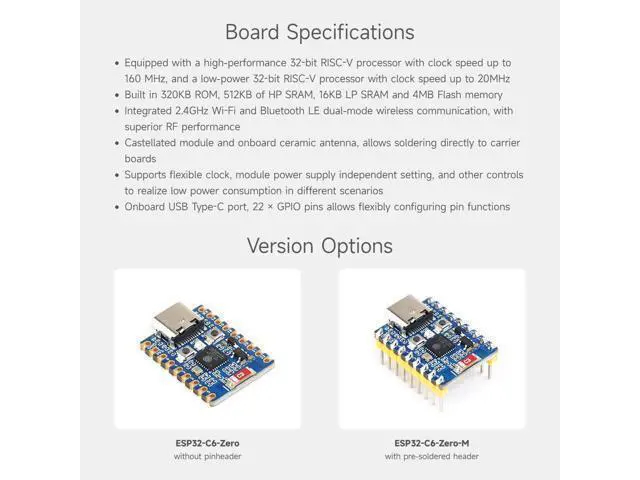

- Equipped with a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz, and a low-power 32-bit RISC-V processor with clock speed up to 20MHz; Built in 320KB ROM, 512KB of HP SRAM, 16KB LP SRAM and 8MB Flash memory; Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance; Castellated module and onboard ceramic antenna, allows soldering directly to carrier boards; Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios; Onboard USB Type-C port, 22 × GPIO pins allows flexibly configuring pin functions
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Equipped with a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz, and a low-power 32-bit RISC-V processor with clock speed up to 20MHz; Built in 320KB ROM, 512KB of HP SRAM, 16KB LP SRAM and 8MB Flash memory; Integrated 2.4GH z Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance; Castellated module and onboard ceramic antenna, allows soldering directly to carrier boards; Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios; Onboard USB Type-C port, 22 × GPIO pins allows flexibly configuring pin functions
