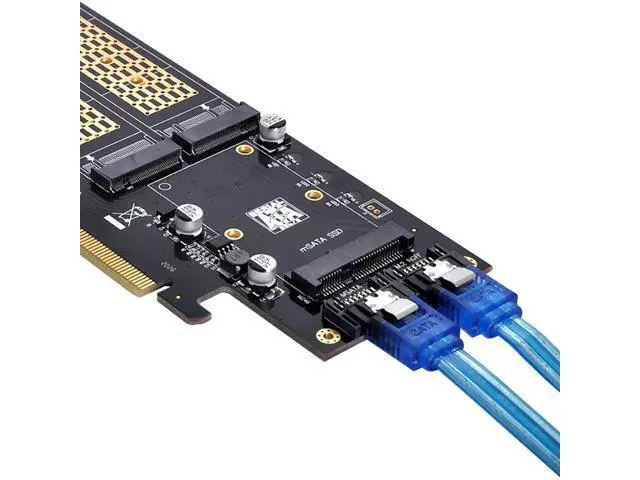

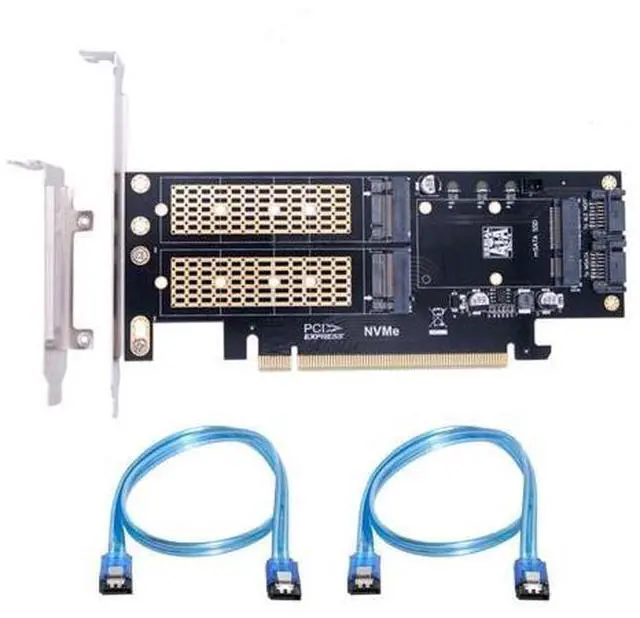

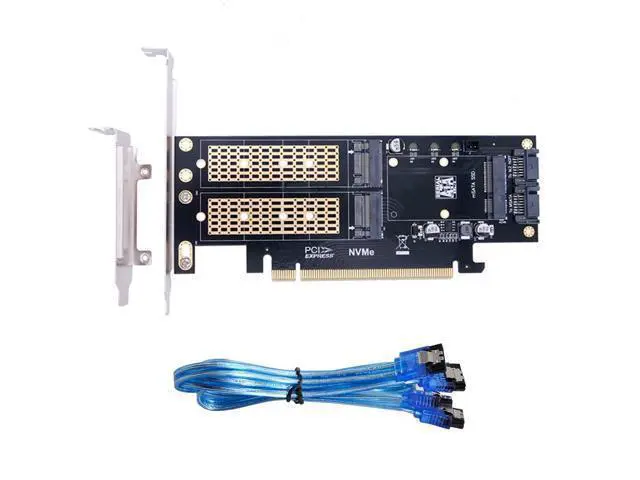

3 in 1 M.2 NVME/NGFF/mSATA SSD to PCIe 3.0/4.0 X16 Motherboard SSD Upgrade Expansion Card Adapter

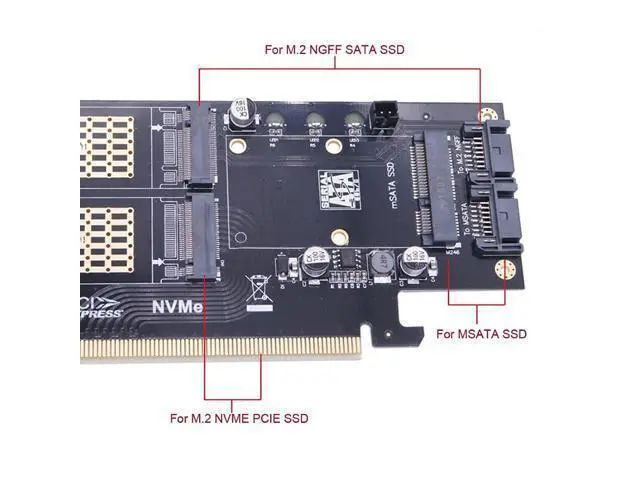

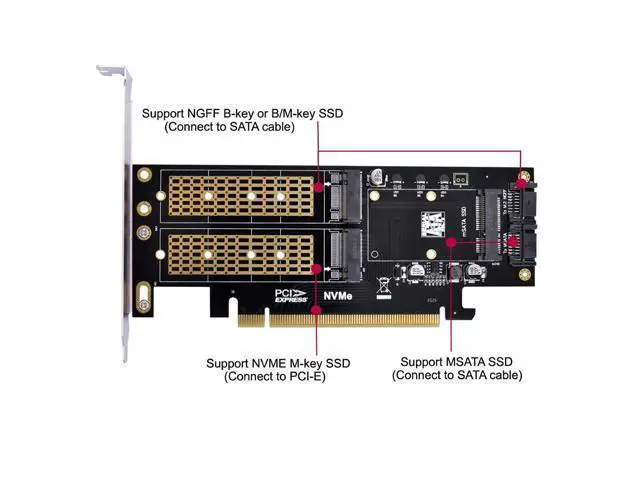

- 1) Note: M.2 SATA and mSATA SSDs (1 and 2 in the diagram) need to be connected to the motherboard via a SATA cable to transfer data; the PCI-E interface only provides power.; 2) Note: M.2 NVMe protocol SSDs (3 in the diagram) directly use PCI-E for both data transfer and power supply.; 3) The three SSD Can work at same time.Transfer to the operating system and does not require any software drivers.; 4) The three solid-state drives are all powered by PCI-E interfaces, no additional power supply is required, and they support 2230/2242/2260/2280mm M.2 solid-state drives and 30/50mm mSATA solid-state drives.; 5) System requirements: Motherboard: Z97 or higher; Operating system: Windows 10 or higher.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
1)

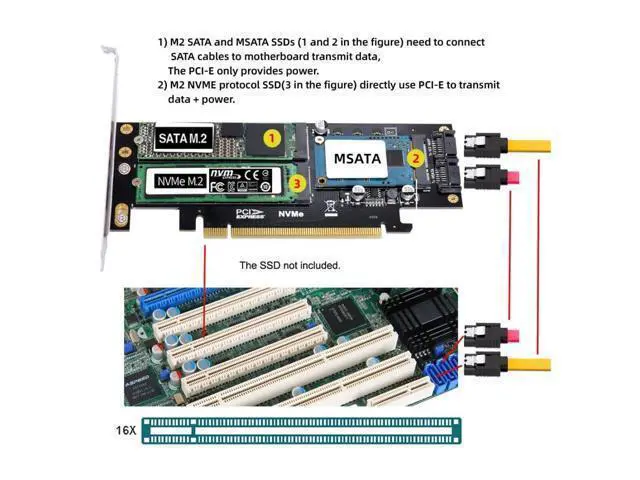

Note: M. 2 SATA and mSATA SSDs (1 and 2 in the diagram) need to be connected to the motherboard via a SATA cable to transfer data; the PCI-E interface only provides power.;
2) Note: M. 2 NVMe protocol SSDs (3 in the diagram) directly use PCI-E for both data transfer and power supply.; 3) The three SSD Can work at same time. Transfer to the operating system and does not require any software drivers.; 4) The three solid-state drives are all powered by PCI-E interfaces, no additional power supply is required, and they support 2230/2242/2260/2280mm M. 2 solid-state drives and 30/50mm mSATA solid-state drives.;
5) System requirements:
Motherboard: Z97 or higher;
Operating system: Windows 10 or higher.
Note: M. 2 SATA and mSATA SSDs (1 and 2 in the diagram) need to be connected to the motherboard via a SATA cable to transfer data; the PCI-E interface only provides power.;
2) Note: M. 2 NVMe protocol SSDs (3 in the diagram) directly use PCI-E for both data transfer and power supply.; 3) The three SSD Can work at same time. Transfer to the operating system and does not require any software drivers.; 4) The three solid-state drives are all powered by PCI-E interfaces, no additional power supply is required, and they support 2230/2242/2260/2280mm M. 2 solid-state drives and 30/50mm mSATA solid-state drives.;
5) System requirements:
Motherboard: Z97 or higher;
Operating system: Windows 10 or higher.
