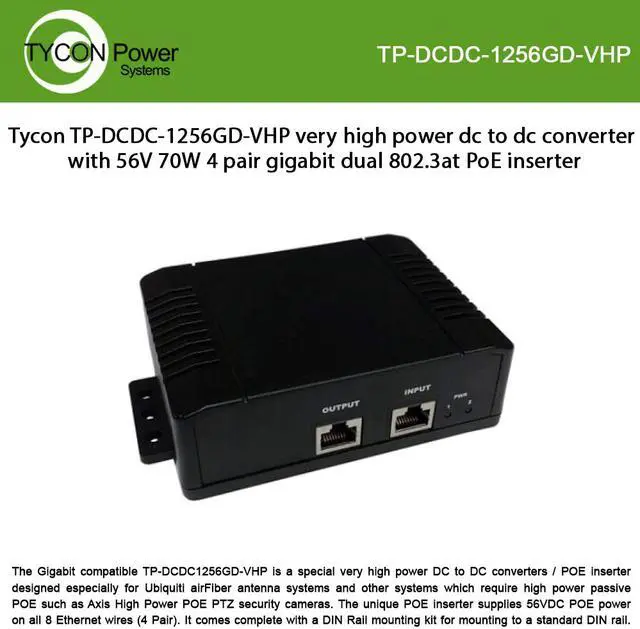

Tycon Power Systems TP-DCDC-1256GD-VHP very high power dc to dc converter with 56V 70W 4 pair gigabit dual 802.3at PoE inserter
- 56V 70W 4pair Gigabit Dual 802.3at PoE Inserter
- 10-60VDC Wire Terminal Input
- PoE Pinout: 3,4,5,6V+ ; 1,2,7,8V-
- High Power Output to 70W
- Applications: 12VDC / 24VDC Remote Power Systems; 48VDC or -48VDC Remote Power Systems; Ubiquiti airFiber™ Antennas; Axis Q6032-E, Q6034-E and Q6035-E PTZ Security Cameras; High PoE 4 Pair Powered Cameras and Radio’s
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The Gigabit compatible TP-DCDC1256GD-VHP is a special very high power DC to DC converters / POE inserter designed especially for Ubiquiti airFiber antenna systems and other systems which require high power passive POE such as Axis High Power POE PTZ security cameras. The unique POE inserter supplies 56VDC POE power on all 8 Ethernet wires (4 Pair).
The wide input voltage range (10VDC to 60VDC) makes it universal in battery powered applications. The input and output is isolated so they work in a negative ground of positive ground system. It has two DC inputs for connecting 2 power sources, like a primary and backup power source. Also have various protections for surge, short circuit and overload. Comes complete with a DIN Rail mounting kit for mounting to a standard DIN rail.
Specifications
• Input Voltage +/- 10VDC to 60VDC
• DC Input Connector Removeable Screw Type Compression Wire Terminal, 5 Pin (12 AWG Max)
• POE Specification IEEE 802.3at (4 Pair) Compatible
• Output Voltage (+/-2.5%) 56VDC
• Data in & Data/POE Output Connector RJ45 (Shielded)
• Output Current (max) 1.25A Total
• Output Power (max) 70W Total
• Self-Consumption Power 2W
• Efficiency 80% Min (10VDC to 60VDC Input)
• Line Regulation, Ripple, Noise 1%
• Load Regulation 5%
• EMC Standards FCC Class B EN55022 Class B
• Safety Standards UL1950, CSA 22.2 &TUV EN60950
• Operating Temperature -40 to +70°C (-40 to +158°F)
• Operating Humidity (RH) 5% - 90%
• Storage Temperature -40 to +85°C (-40 to +185°F)
• Dimensions (LxWxH) 90 x 118 x 40mm (3.5 x 4.6 x 1.57”)
• Weight 335g (11.8oz)
The wide input voltage range (10VDC to 60VDC) makes it universal in battery powered applications. The input and output is isolated so they work in a negative ground of positive ground system. It has two DC inputs for connecting 2 power sources, like a primary and backup power source. Also have various protections for surge, short circuit and overload. Comes complete with a DIN Rail mounting kit for mounting to a standard DIN rail.
Specifications
• Input Voltage +/- 10VDC to 60VDC
• DC Input Connector Removeable Screw Type Compression Wire Terminal, 5 Pin (12 AWG Max)
• POE Specification IEEE 802.3at (4 Pair) Compatible
• Output Voltage (+/-2.5%) 56VDC
• Data in & Data/POE Output Connector RJ45 (Shielded)
• Output Current (max) 1.25A Total
• Output Power (max) 70W Total
• Self-Consumption Power 2W
• Efficiency 80% Min (10VDC to 60VDC Input)
• Line Regulation, Ripple, Noise 1%
• Load Regulation 5%
• EMC Standards FCC Class B EN55022 Class B
• Safety Standards UL1950, CSA 22.2 &TUV EN60950
• Operating Temperature -40 to +70°C (-40 to +158°F)
• Operating Humidity (RH) 5% - 90%
• Storage Temperature -40 to +85°C (-40 to +185°F)
• Dimensions (LxWxH) 90 x 118 x 40mm (3.5 x 4.6 x 1.57”)
• Weight 335g (11.8oz)
