Harness your vehicle s battery to efficiently power office equipment on the road. Continuously spplies up to 150 watts of 12V AC power to a single AC outlet from any 12V battery or automotive DC source. Convenient cigarette lighter DC input jack with 3 cable provides 1-stop installation. Portable and compact the inverter s design is among the most rugged available thanks to its lightweight metal casing.
MODEL: PV150
VENDOR: TRIPPLITE
FEATURES: 150 Watt Power

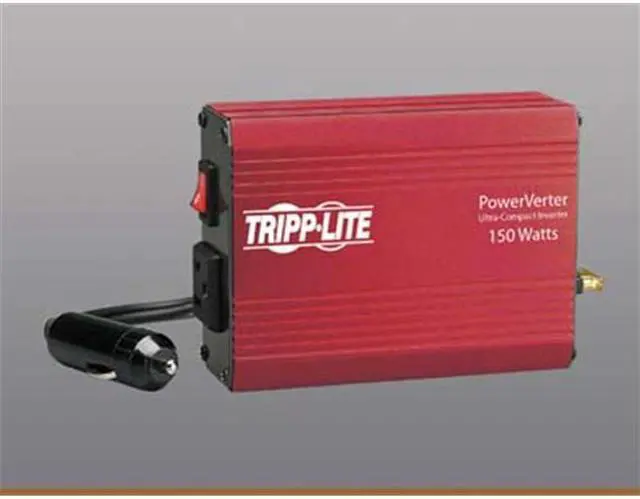

Verter Ultra-Compact Inverter Harness your vehicle s battery to efficiently power office equipment on the road. Continuously supplies up to 150 watts of 120V AC power to a single AC outlet from any 12V battery or automotive DC source. Convenient cigarette lighter DC input jack with 3-ft. cable provides 1-step installation. Portable and compact the inverter s design is among the most rugged available thanks to its lightweight metal casing. Allows users to run AC appliances from any 12V cigarette lighter socket. Converts 12V DC battery power to 120V AC power 150 watts continuous output; 300 watts peak output power 1 outlet 3-ft. cord with cigarette-lighter plug Ultra compact lightweight design with all-metal housing Low battery alarm with auto-shutoff prevents deep battery discharge 20-amp fuse protects inverter from overload Lighted power switch
SPECIFICATIONS: OUTPUT -
Output watt capacity (watts): 150 watts continuous supports peak output up to 300 watts for up to 500 milliseconds
Output nominal voltage: 120V nominal
Output voltage regulation: Maintains PWM sine wave output voltage of 115 VAC (+/- 8 VAC)
Output frequency regulation: 60 Hz (+/- 3 Hz)
Outlet quantity/type: Includes 1 NEMA 5-15R output receptacle
Overload protection: Via 20A automotive input fuse INPUT -
Maximum input amps/watts: Full continuous load - 14A at 12VDC No load - 0.4A at 12VDC
Input connection type: 12VDC cigarette lighter input plug connection
Input cord length: 3 ft. hardwire input cable 16 gauge 2 wire HOUSING- Aluminum/sheet metal Metallic red finish
COOLING- Convection
SIZE - 3.75" w x 1.75" h x 5.75" d WT. - 1.2 lbs.
MANUFACTURER WARRANTY: 1 YEAR
