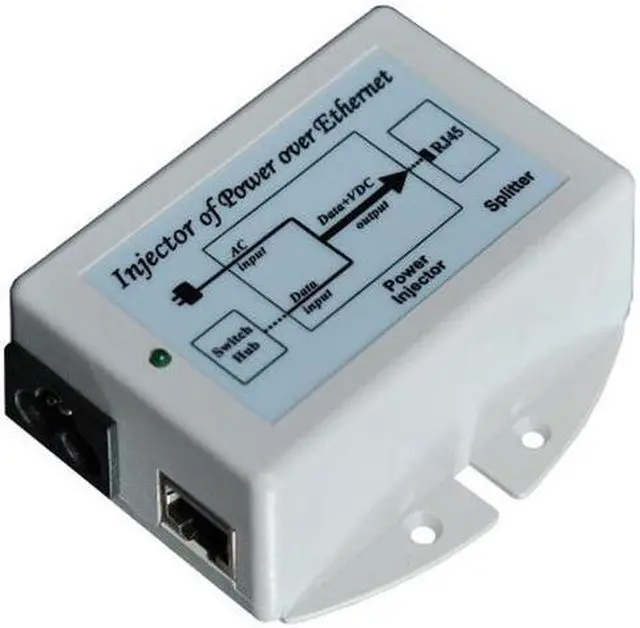

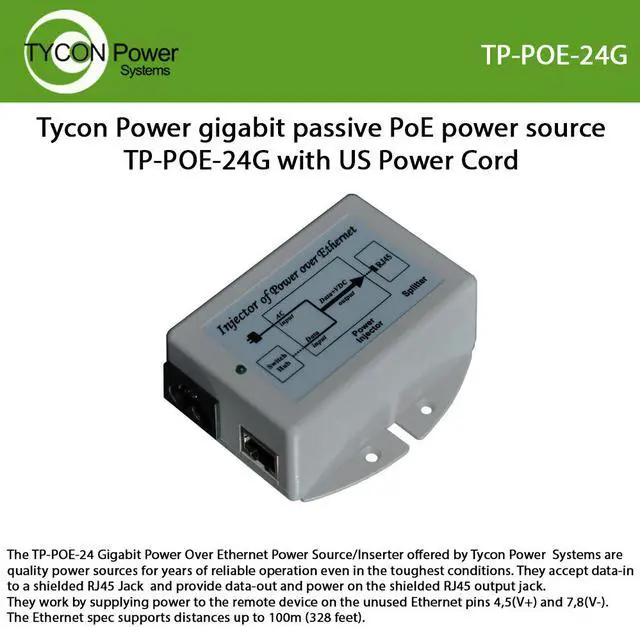

Tycon Systems TP-POE-24G 24W Gigabit POE Power Inserter - US Power Cord, 24V

The TP-POE Power Over Ethernet Power Sources offered by Tycon Power Systems are quality midspan power sources for years of reliable operation even in the toughest conditions. They accept data-in to a shielded RJ45 Jack and provide surge protected data-out and power on the shielded RJ45 output jack. They work by supplying power to the remote device on the unused Ethernet pins 4, 5(V+) and 7, 8(V-).

• Remotely power equipment thru cat5 cable up to 100m
• Built in Ethernet and ac surge protection
• Autoranging switching power supply
• Short circuit, over current and over voltage protection
• High temperature industrial operation
• Compact size - floor / desktop / wall mount

• AC Input - 90-264VAC, 47-63Hz
• Max Inrush Current (120VAC) - 30A
• Efficiency - 85%
• Line / Load Regulation - 1% / 5%
• Ripple / Noise - 1% / 2%
• Protections - Over-Voltage, Short Circuit, Over-Current
• Operating Temperature - 30 to +60°C
• Operating Humidity - 5% - 90%
• Storage Temperature - 40 to +80°C
• POE Output Voltage - 24V
• Output Current - 0.8A
• Output Power - 19W
• POE Type - Passive
• Surge Protected, US Power Cord
