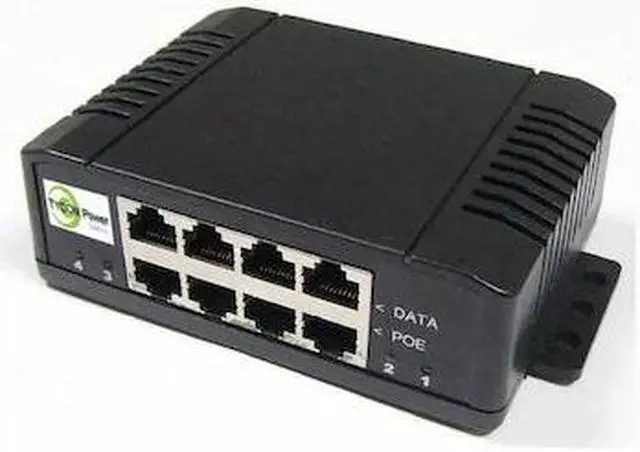

Tycon TP-MS4G-VHP 4 port PoE Gigabit Midspan Univolt Injector

Tycon systems lead the advancement of information access technology solutions throughout the world. With dedicated passion for knowledge and invention- we focus on providing the tools to move the clients to a promising future with quality- reliability- and sustainability of products and services. We design turnkey remote power systems utilizing solar and wind power systems and accessories including a variety of unique PoE and power conversion devices.

The TP-MS4G-VHP mid span PoE power sources are used for supplying PoE and data to multiple devices from a central location such as an operations room or equipment cabinet. The PoE devices feature a separate data-in port coupled with a data out/PoE port. The PoE function is considered 4 Pair Passive PoE which is sometimes referred to as “High PoE”. The units support Gigabit Ethernet and are backward compatible to 10/100MB.

The Midspan features Universal Voltage (UniVolt) PoE outputs where the PoE voltage equals the input voltage. All ports will have the same PoE voltage. The Midspan features Universal Voltage (UniVolt) PoE outputs where the PoE voltage equals the input voltage. All ports will have the same PoE voltage. PoE DC Voltage (20V-60V) is supplied on pins 1-2 (V-)- 3-6 (V+) and 4-5 (V+) and 7-8 (V-). The unit can accept + or - voltage on input however the design is a non-isolated design. Maximum power output per port is 1.8A. The individual outputs are overcurrent- over/under voltage and short circuit protected. The midspan is DIN Rail mountable with the included DIN Rail brackets.
Features
Very High Power- Gigabit 4 Port Midspan POE Injector
Up to 1.8A per Individual Port
Universal POE Voltage 20VDC to 60VDC.
Powers Passive PoE Devices using 4 pair power
DIN Rail Mountable - Includes DIN Rail adapters.
