MikroTik - RBSXTSQ5HPND - SXTsq 5 High Power Dual Chain 5GHz 802.11a/n Radio with 16dBi Integrated Antenna, 600MHz CPU,

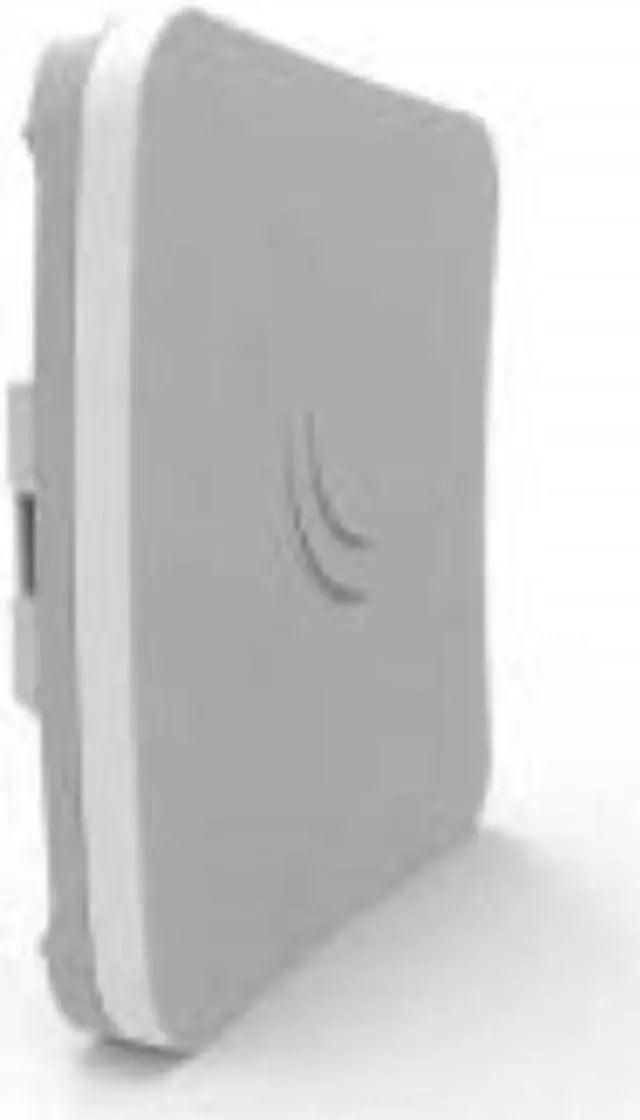

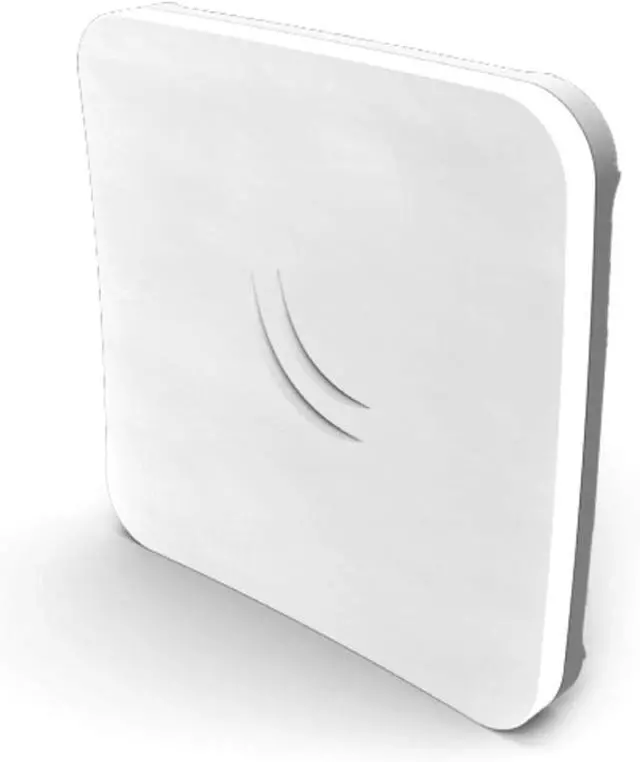

The MikroTik SXTsq 5 is a compact and lightweight outdoor wireless device with an integrated antenna, perfect for point-to-point links or as a CPE unit. RBSXTsq5HPnD (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations). The SXTsq 5 is a compact and lightweight outdoor wireless device with an integrated antenna. It has a 16dBi High Power antenna, and high output power (up to 28dBm) which allows to reach longer distances than the SXTsq Lite5 model. The enclosure includes slots for directly attaching a hose clamp mount in three different mounting places, with ability to be mounted on horizontal railings. The device includes one 10/100 Mbit ethernet port. There is also grounding connection easily accessible for lightning protection. Product Specifications: • CPU: Single Core 600Mhz AR9344 • RAM: 64MB • Storage: 16MB Flash • 10/100 Ports: 1 • Wireless: Dual chain 802.11a/n (AR9344) • Antenna Gain: 16dBi • Antenna beam width: 23° • PoE in: Yes • OS: Router OS Level 4 • Max Power Consumption: 7W Product Includes: 1 x MikroTik RBSXTsq5HPnD CPE 1 x 24V 0.38A Power Supplu 1 x Metal Ring 1 x PoE Injector 1 x Quick Start Guide Product Data Sheet MikroTik RBSXTsq5HPnD data sheet Specifications RBSXTsq5HPnD Product code RBSXTsq5HPnD (International), RBSXTsq5HPnD-US (USA) CPU AR9344 CPU nominal frequency 600 MHz CPU core count 1 Size of RAM 64 MB Storage 16 MB Flash 10/100 Ethernet ports 1 Wireless bands 5 GHz radio Wireless regulations Specific frequency range may be limited by country regulations Operating frequency International 5150 - 5875 MHz USA 5170 - 5250 MHz 5725 - 5835 MHz Protocols 802.11a/n Chains 2 Antenna gain 16 dBi Antenna beam width 23° Wireless chip model AR9344 PoE in Yes Supported input voltage 10 V - 28 V, passive PoE Dimensions 129 x 129 x 34 mm; package: 255 x 180 x 45 mm Weight Unit: 295 g; package: 492 g Operating temperature -40 to 70° C License level 3 Operating System RouterOS Max Power consumption 7 W Wireless specifications RATE (5 GHz) Tx (dBm) Rx (dBm) 6MBit/s 28 -96 54MBit/s 25 -80 MCS0 28 -96 MCS7 24 -75
