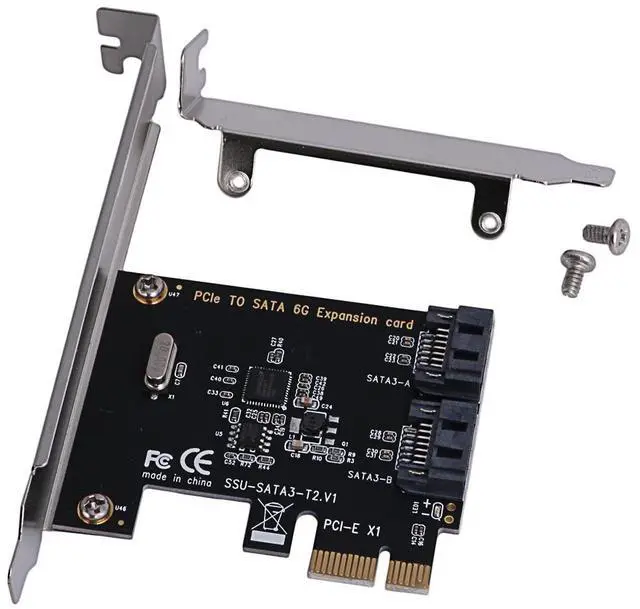

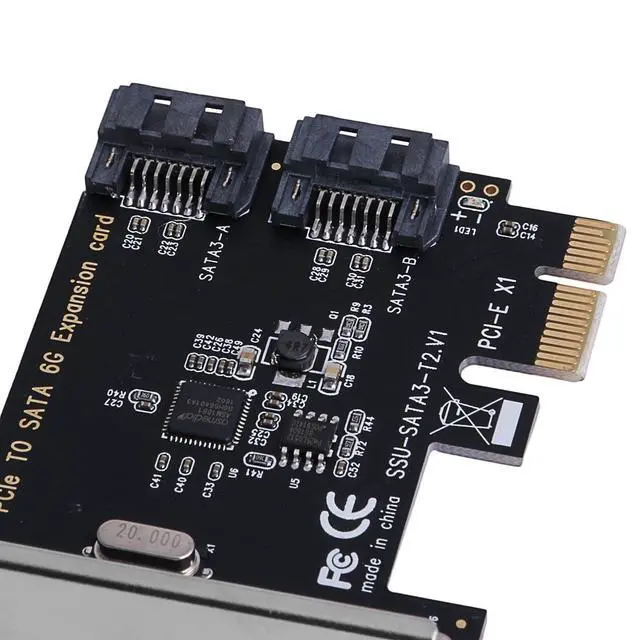

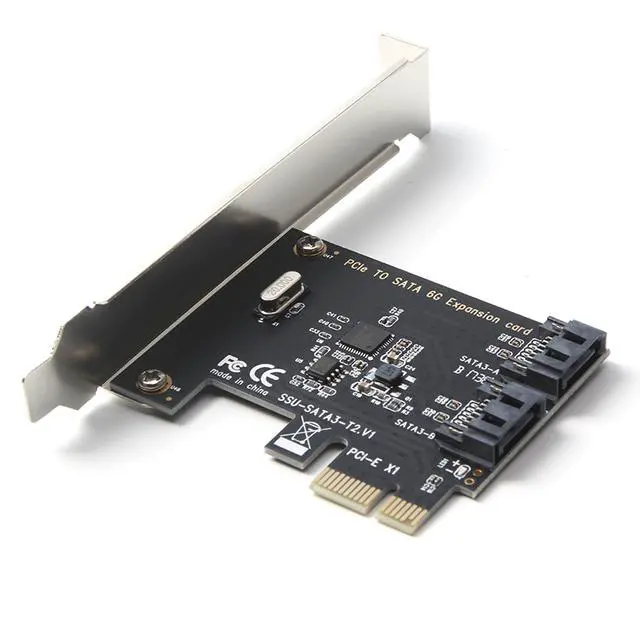

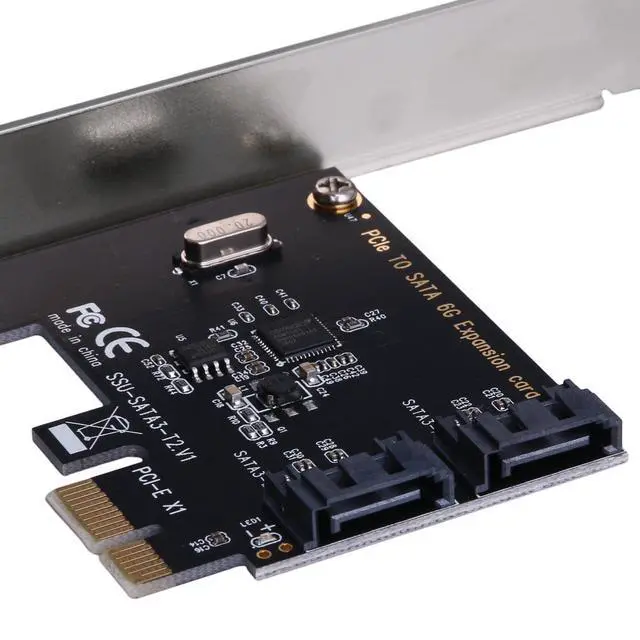

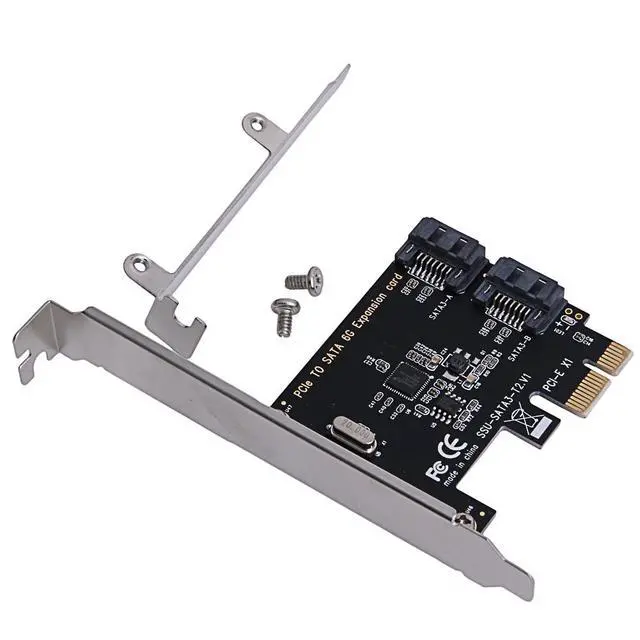

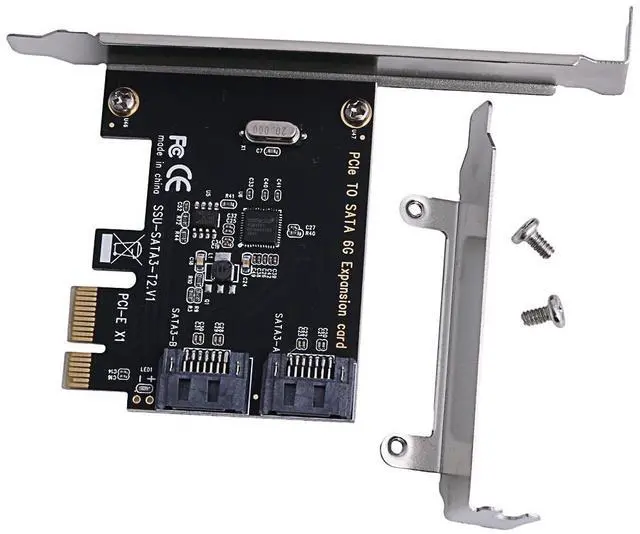

PCI-E to SATA 6G Expension card,PCIe PCI Express to SATA3.0 2-Port SATA III 6G Controller Expansion Card Adapter

Board size:(L*W)6.70*5.60cm/2.64"*2.20"<
Comliant with Serial ATA Specification
Supports two SATA Ports
Supports Port Multiplier FIS based switching or command based switching
System Support: PCI Express-enabled system with on avaliable PCI Express slot Windows 8/7(32/64bit)/Vista(32/64bit)/XP/Server 2003/2008

Product description
100% brand new and high quality
Comliant with Serial ATA Specification 3.0,Compliant with PCIe 2.0 specifications.
Supports communication speeds of 6.0Gbps,3.0Gbps and 1.5Gbps
Supports programmable transmitter signal levels
Supports Gen 1i,Gen 2i,Gen 2m, Gen 2x and Gen 3i
Applicable Slot: PCI-E (1X 4X 8X 16X)
Supports two SATA Ports
Supports AHCI 1.0 and IDE programming interface
Supports Native Command Queuing(NCQ)
Supports Port Multiplier FIS based switching or command based switching
Supports Partial and Slumber Power Management states
Supports Hot Plug and Hot Swap
Compatible with SATA 6G,3G and 1.5G Hard Drives
Large chassis / small chassis can be used.
Bus Interface:PCI-Express x1
Connectors: 2x SATA
System Support: PCI Express-enabled system with on avaliable PCI Express slot Windows 8/7(32/64bit)/Vista(32/64bit)/XP/Server 2003/2008
Board size:(L*W)6.70*5.60cm/2.64"*2.20"
Bracket size(L*W):8.00*2.20cm/3.15"*0.87" ; 12.00*2.20cm/4.72"*0.87"
