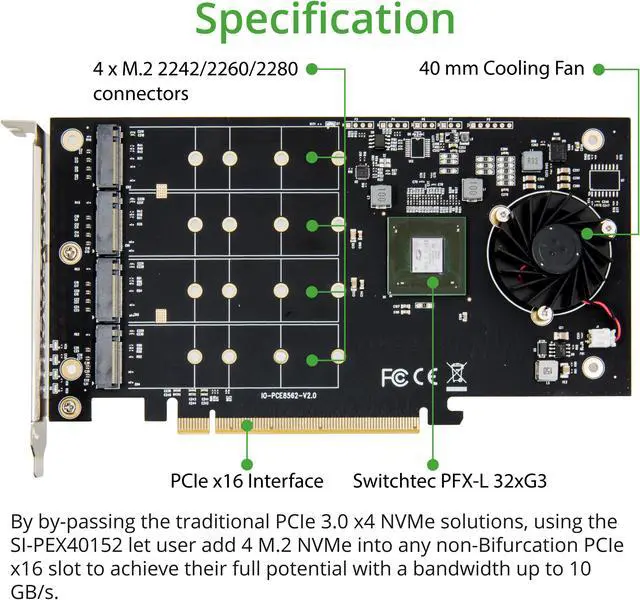

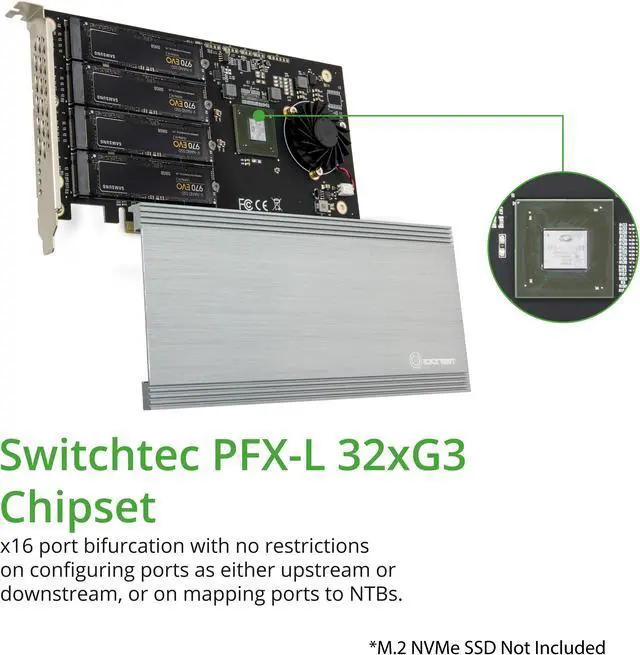

Quad M.2 NVMe Ports Non-RAID to PCIe 3.0 x16 Bifurcation Riser Controller - Support Non-BiFurcation Motherboard - Switchtec PFX-L 32xG3 Chipset

The IO CREST SI-PEX40152 is a great accelerated secondary storage solution for any workstation with true PCIe 3.0 x16 bandwidth. It has 4 M.2 NVMe ports to accept 4 NVMe M.2 SSDs, so each NVMe M.2 SSD has dedicated PCIe 3.0 x4 bus bandwidth. It delivers transfer speeds 20 times faster than SATA SSDs. By by-passing the traditional PCIe 3.0 x4 NVMe solutions, using the SI-PEX40152 will allow user add 4 M.2 NVMe into any non-Bifurcation PCIe x16 slot to achieve their full potential with a bandwidth of up to 10,500 MB/s.

Unlike onboard DMI 3.0 based NVMe solutions or Single NVMe PCI-e x4, which are forced to share a single PCIe 3.0 x4 lane with the motherboard’s data ports, the SI-PEX40152 combines 4 - M.2 drives to be able to run on PCIe 3.0 x16 lane. This unique architecture allows the drive to interface directly with the platform’s CPU, which provides PCIe x4 bandwidth for each NVMe SSD!
