4+2 Port POE switch 10/100Mbps Full/Half Duplex VLAN Network Ethernet Switch af/at for IP POE CCTV Camera
- 4+2 Port POE switch 10/100Mbps Full/Half Duplex VLAN Network Ethernet Switch af/at for IP POE CCTV Camera
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

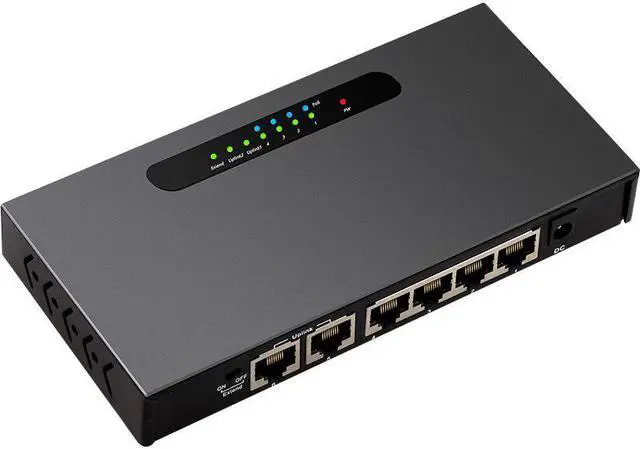

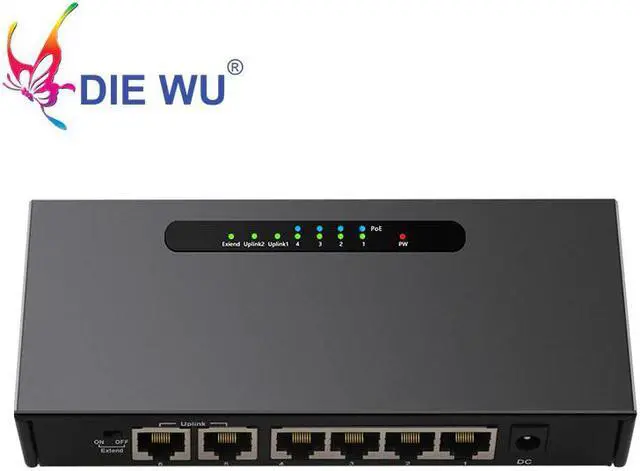

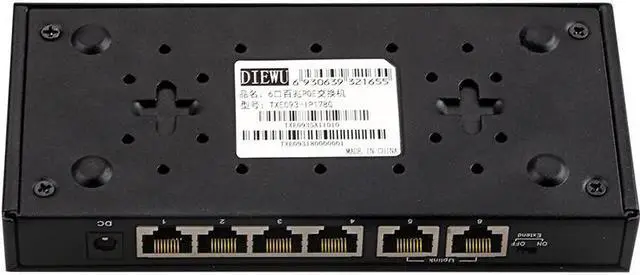

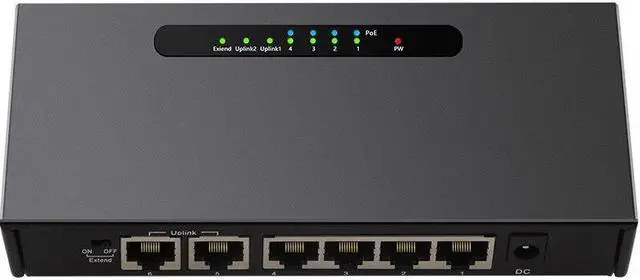

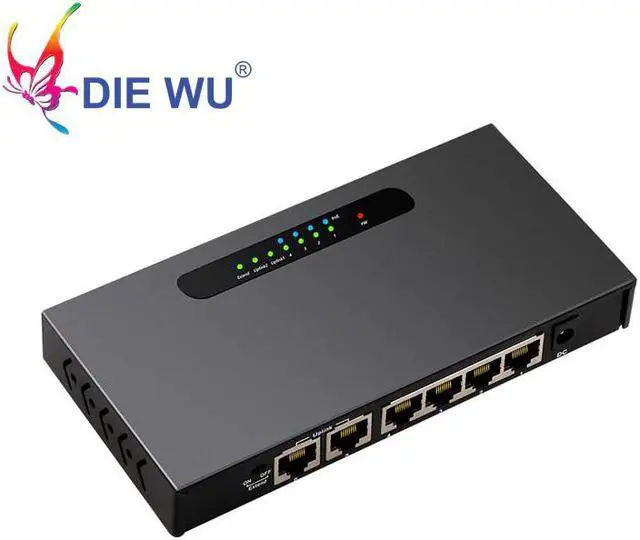

4+2 Port POE switch 10/100Mbps Full/Half Duplex VLAN Network Ethernet Switch af/at for IP POE CCTV Camera
Model number: TXE093
Chipset: ICPlus/IP178G
Port number: 4 POE + 2 Uplink
Size: 160*72*24mm
Power supply: 52V 1.25A or 52V 0.92A
Power over Ethernet
PoE Standard
IEEE 802.3 af Power over Ethernet/PSE
IEEE 802.3 at Power over Ethernet Plus/PSE
PoE Power Supply Type
End-span + mid-span
Power Pin Assignment
1/2(+), 3/6(-),
PoE Power Output
Per Port max. 15.4 watts (IEEE 802.3 af)
Per Port. max. 30 watts (IEEE 802.3 at)
PoE Power Budget
60 watts
Number of PDs, 7 watts
4
Number of PDs, 15.4 watts
4
Number of PDs, 30 watts
2
Standard Conformance
EMI Safety
FCC, CE
Standard Compliance
IEEE 802.3 Ethernet
IEEE 802.3 u Fast Ethernet
IEEE 802.3 x Flow Control
IEEE 802.3 af Power over Ethernet
IEEE 802.3 at Power over Ethernet Plus
Model number: TXE093
Chipset: ICPlus/IP178G
Port number: 4 POE + 2 Uplink
Size: 160*72*24mm
Power supply: 52V 1.25A or 52V 0.92A
Power over Ethernet
PoE Standard
IEEE 802.3 af Power over Ethernet/PSE
IEEE 802.3 at Power over Ethernet Plus/PSE
PoE Power Supply Type
End-span + mid-span
Power Pin Assignment
1/2(+), 3/6(-),
PoE Power Output
Per Port max. 15.4 watts (IEEE 802.3 af)
Per Port. max. 30 watts (IEEE 802.3 at)
PoE Power Budget
60 watts
Number of PDs, 7 watts
4
Number of PDs, 15.4 watts
4
Number of PDs, 30 watts
2
Standard Conformance
EMI Safety
FCC, CE
Standard Compliance
IEEE 802.3 Ethernet
IEEE 802.3 u Fast Ethernet
IEEE 802.3 x Flow Control
IEEE 802.3 af Power over Ethernet
IEEE 802.3 at Power over Ethernet Plus
