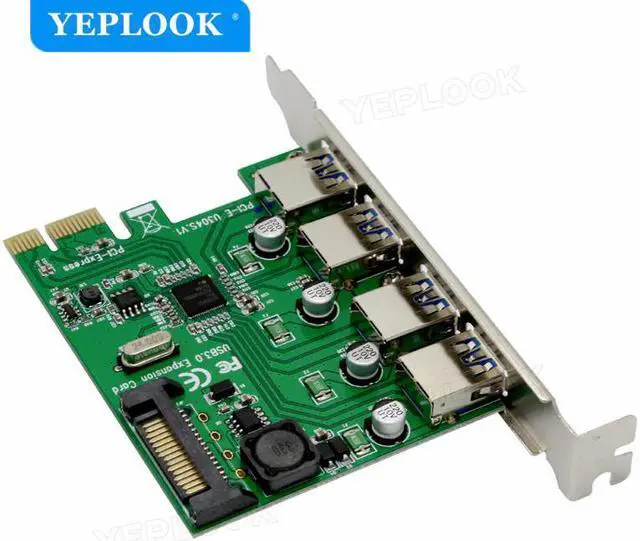

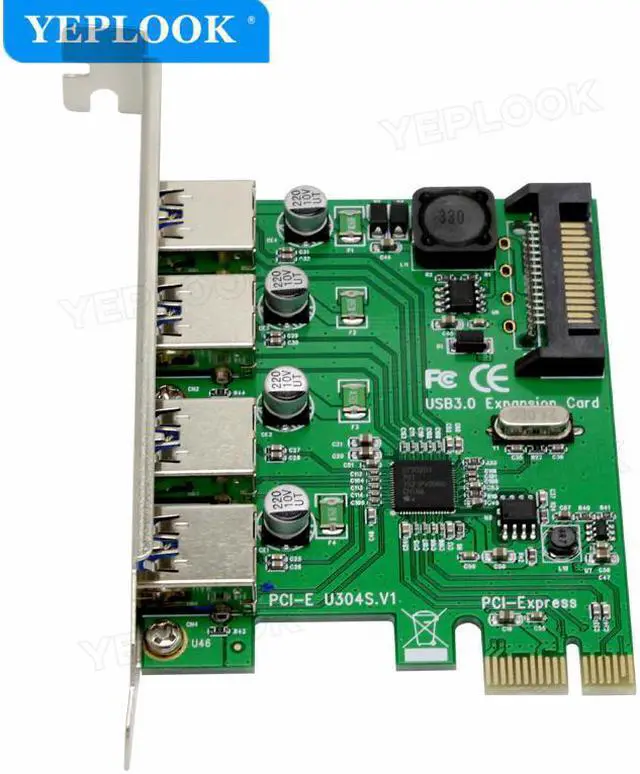

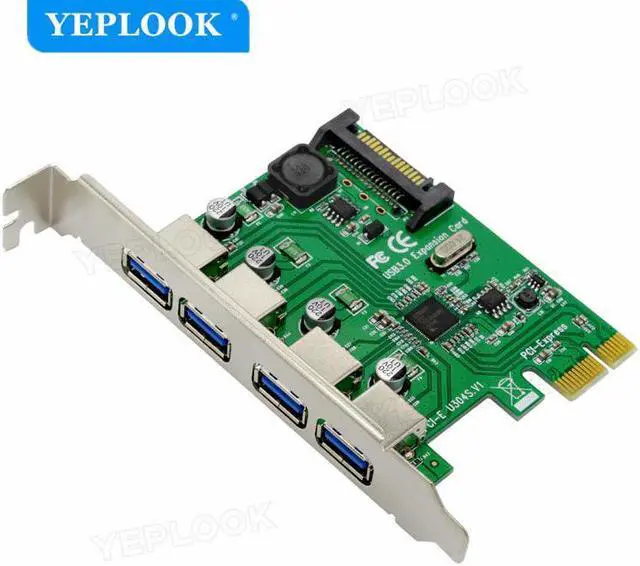

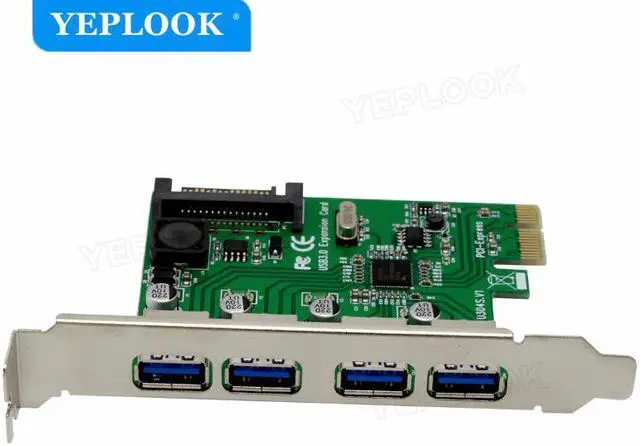

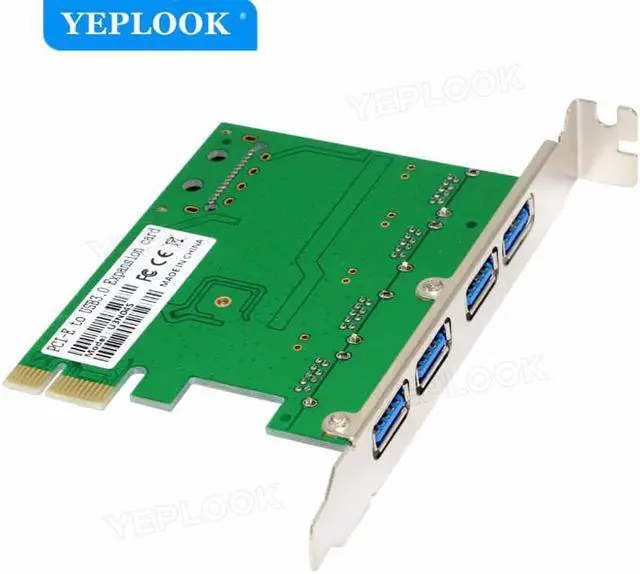

PCIe to External 4 Ports USB3.0 Expansion Card Support PCI-E x1 x4 x8 x16 NEC720201 Chipset 5Gbps with 15Pin SATA Power U3N04S

PCIe to External 4 Ports USB 3.0 Expansion Card Support PCI-E x1 x4 x8 x16 NEC720201 Chipset 5Gbps with 15Pin SATA Power U3N04S Features 10 times faster than High-Speed USB 2.0 *
Chipset: for
NEC720201 Bus Modes: PCI-E x1
Compatible Slot: PCI-E x1/x4/x8/x16
USB Interface: 4 x USB 3.0
Port Transfer Rate: USB 3.0 5Gb/s

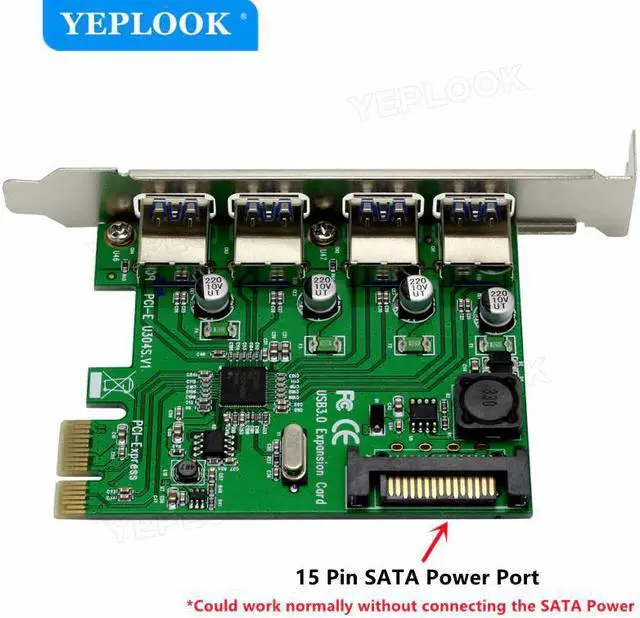

Current: 2A for 4 Ports USB 3.0, Not connect the SATA Power can normal use! Specification Complies with PCI Express Base Specification Revision 2.0 Complies with Universal Serial Bus 3.0 specification Revision 1.0 Backward compatible to USB 2.0 and PCI-Express 1.0 Supports the following data transfer rate: - USB 2.0 mode up to 480 Mbps* - USB 3.0 mode up to 5 Gbps* Max. 5V/900mA power output to each USB 3.0 Port (with PSU connected) Supports Windows 10 / 8. x / 7 / Vista / XP / Server 2008 R2, Linux Kernel 2.6 or later
Dimensions: (approx.
) Weight: 48.5 gram(approx.
) Working temperature: 0-70°C * This term does not represent actual data rate of 480Mbps, 5Gbps & 3Gbps and simply indicates compliance with USB 2.0, USB 3.0 & SATA II standards. Actual maximum data rate depends on PC configurations, cable conditions as well as connected devices.
Package list: 1 x External 4 Ports USB 3.0 PCIe Controller Card, 1 x Driver CD
