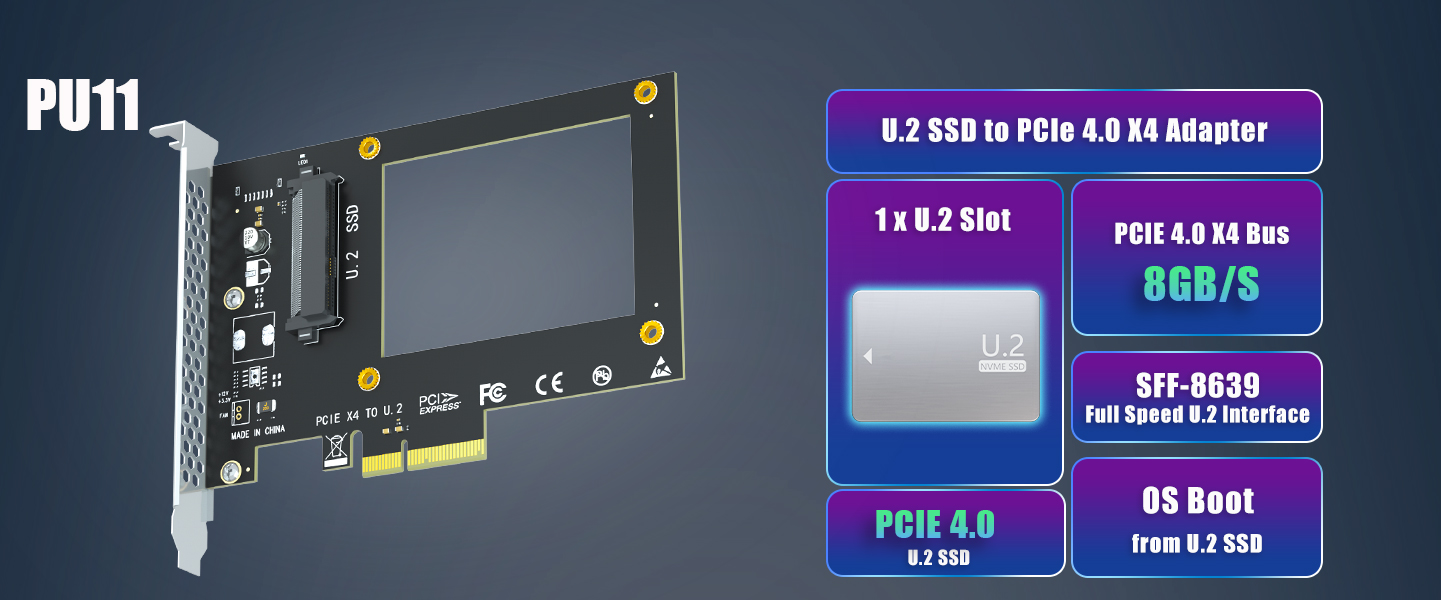

U.2 PCIe NVMe 4.0 Speed Testing
Testing Conditions
- CPU: Intel I5-11400
- MB: ASUS H510M-F
- SSD: Samsung 980 PRO +U.2 Adapter
- OS: Windows 10
Attention:

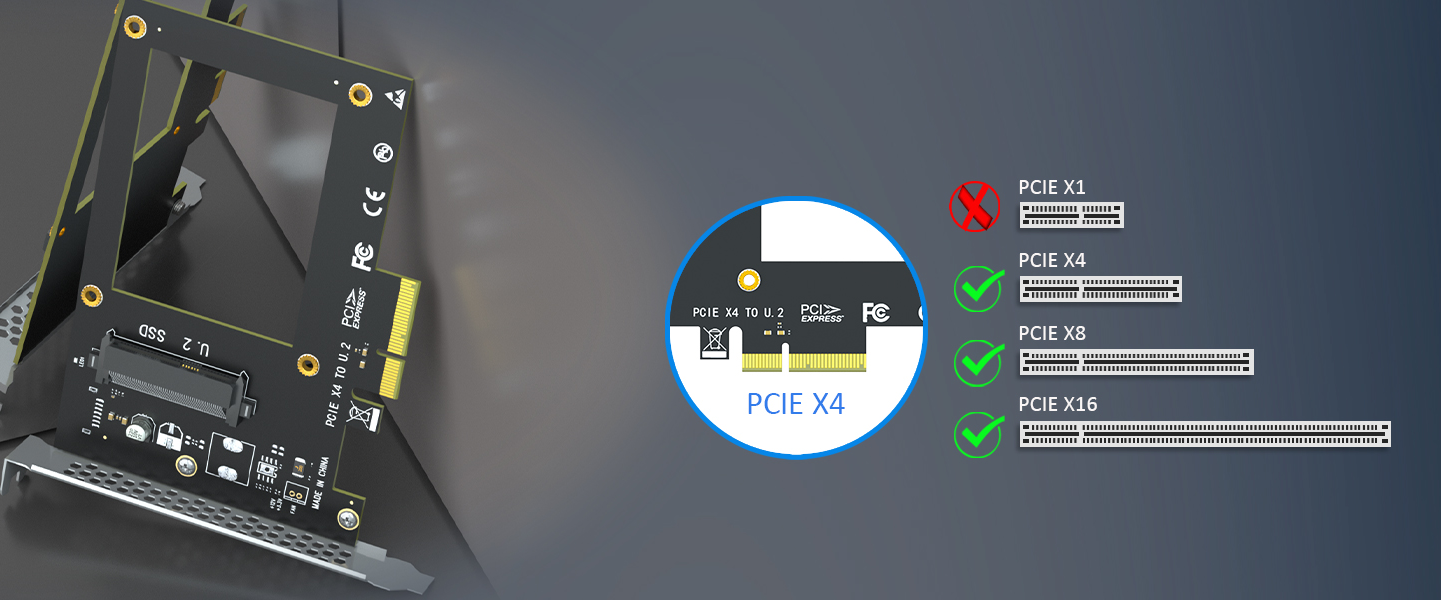

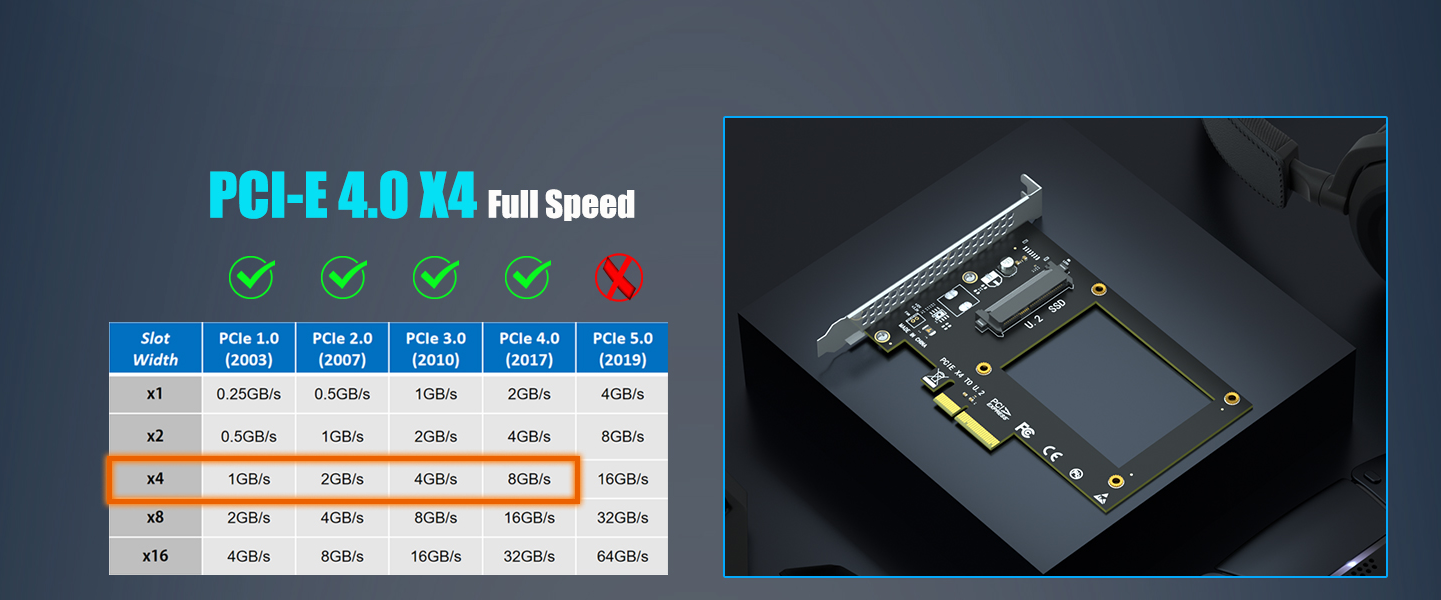

To Reach PCIe 4.0 X4 full speed, need to meet 3 conditions:
- PCIe 4.0 SSD
- Motherboard PCIe 4.0 lane
- CPU support PCIe 4.0
2.5 Inch U.2 SSD (SFF-8639)
- Intel SSD D7-P5510 Series
- Intel SSD D7-P5500 Series
- Intel SSD D7-P5600 Series
- Samsung PM9A3
U.2 PCIe 3.0 SSD Compatibility
- Intel Optane SSD 905P Series
- Intel Optane SSD DC P4801X Series
- Intel Optane SSD DC P4800X Series
- Intel SSD D5-P4326 Series
- Intel SSD D5-P4420 Series
- Intel SSD D5-P4320 Series
- WD Gold Enterprise Class NVMe SSD
- Micron 7300 PRO Series
Package Including:
- U.2 Adapter
- Screw Driver
- Screws for SSD Installation
- Screws for Adapter Installation
| Products | ||||||
|---|---|---|---|---|---|---|
| Use for | M.2 PCIe SSD to PCIe X4 | M.2 PCIe SSD to PCIe X1 | 2 x M.2 PCIe SSD to PCIe X8 | 2 x M.2 PCIe SSD to PCIe X4 | M.2 PCIe SSD to PCIe X4 + M.2 SATA SSD to SATA III | M.2 PCIe SSD to PCIe X4 + M.2 SATA SSD to SATA III |
| Fit for | M.2 PCIe SSD | M.2 PCIe SSD | 2 x M.2 PCIe SSD | 2 x M.2 PCIe SSD | M.2 PCIe SSD + M.2 NGFF SATA SSD | M.2 PCIe SSD + M.2 NGFF SATA SSD |
| Internal Interface | PCI-E X4 | PCI-E X1 | PCI-E X8 | PCI-E X4 | PCI-E X4 + SATA III | PCI-E X4 + SATA III |
| External Interface | Key M/B+M | Key M/B+M | 2 x Key M/B+M | 2 x Key M/B+M | Key M/B+M and Key B | Key M/B+M and Key B |
| Form Factor | 2230/2242/2260/2280 | 2230/2242/2260/2280 | 2230/2242/2260/2280/22110 | 2230/2242/2260/2280/22110 | 2230/2242/2260/2280 | 2230/2242/2260/2280/22110 |
| Protocol | PCI-E 4.0/3.0/2.0 | PCI-E 4.0/3.0/2.0 | PCI-E 4.0/3.0/2.0 | PCI-E 3.0/2.0 | PCI-E 4.0/3.0/2.0 + SATA I/II/III | PCI-E 4.0/3.0/2.0 + SATA I/II/III |
| Installation | Regular and Low Profile | Regular and Low Profile | Regular and Low Profile | Regular and Low Profile | Regular and Low Profile | Regular Profile |
| Cooling Solution | 0.12" Heatsink | 0.4" Heatsink | Heatsink | Heatsink | 2 x 0.12" Heatsink | FAN |
Pros: -Works at PCIe 3.0 speeds -Does work to adapt my NVME SSD
Cons: -Can't get it to run PCIe 4.0
Overall Review: Doesn't quite live up to the reason I purchased it. That being said, it's hard to complain when the card still functions. This was for a P5800X -- just decided to run it at gen 3 speeds.
