Features:
10 Slots brings great extendability.
Plugs directly to the board without any extender cable, can be fixed to the case.
Only one cable to the slot, easy and convenient to settle and install. With IC heat radiator.
Multiple SATA3.0 expansion cards can be installed on the same computer and work at the same time to achieve multi-channel simultaneous reading.
Automatically enter hibernation after 30 minutes of idle hard drive.
Environmental protection and energy saving, reduce loss LED monitoring indicator
Monitor work status
When the power is on, the red light is always on, and the blue light is flashing when reading data. When the data is not read, the blue light is always on, and the working status of the hard disk can be monitored at any time.
System comes with soft RAID

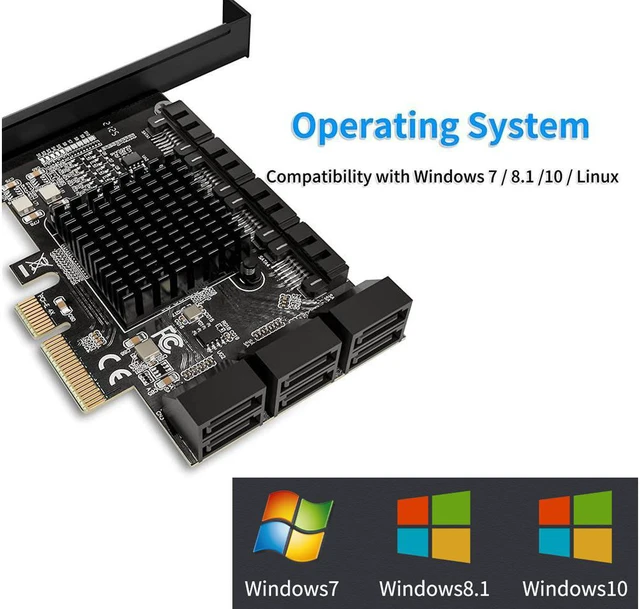

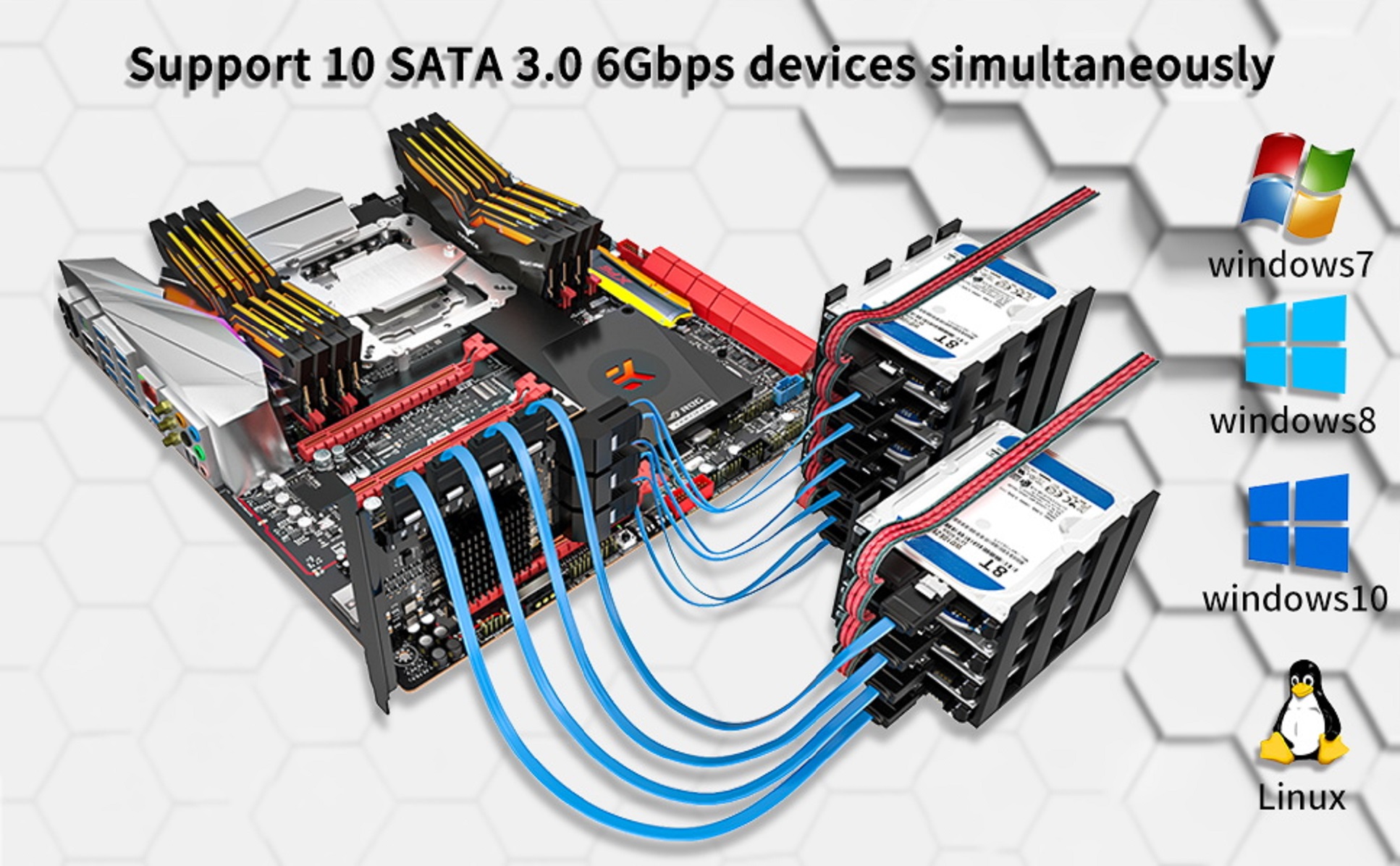

This SATA PCIe card allows you to add 10 6Gbps SATA 3.0 devices to your computer simultaneously and support hot plug and hot swap. Support Windows 10 / 8 / 7 (32/64-bit) and Linux operating system. Please make sure the computer is turned off before inserting or removing the card, then insert the card to avoid damaging the motherboard or expansion card.

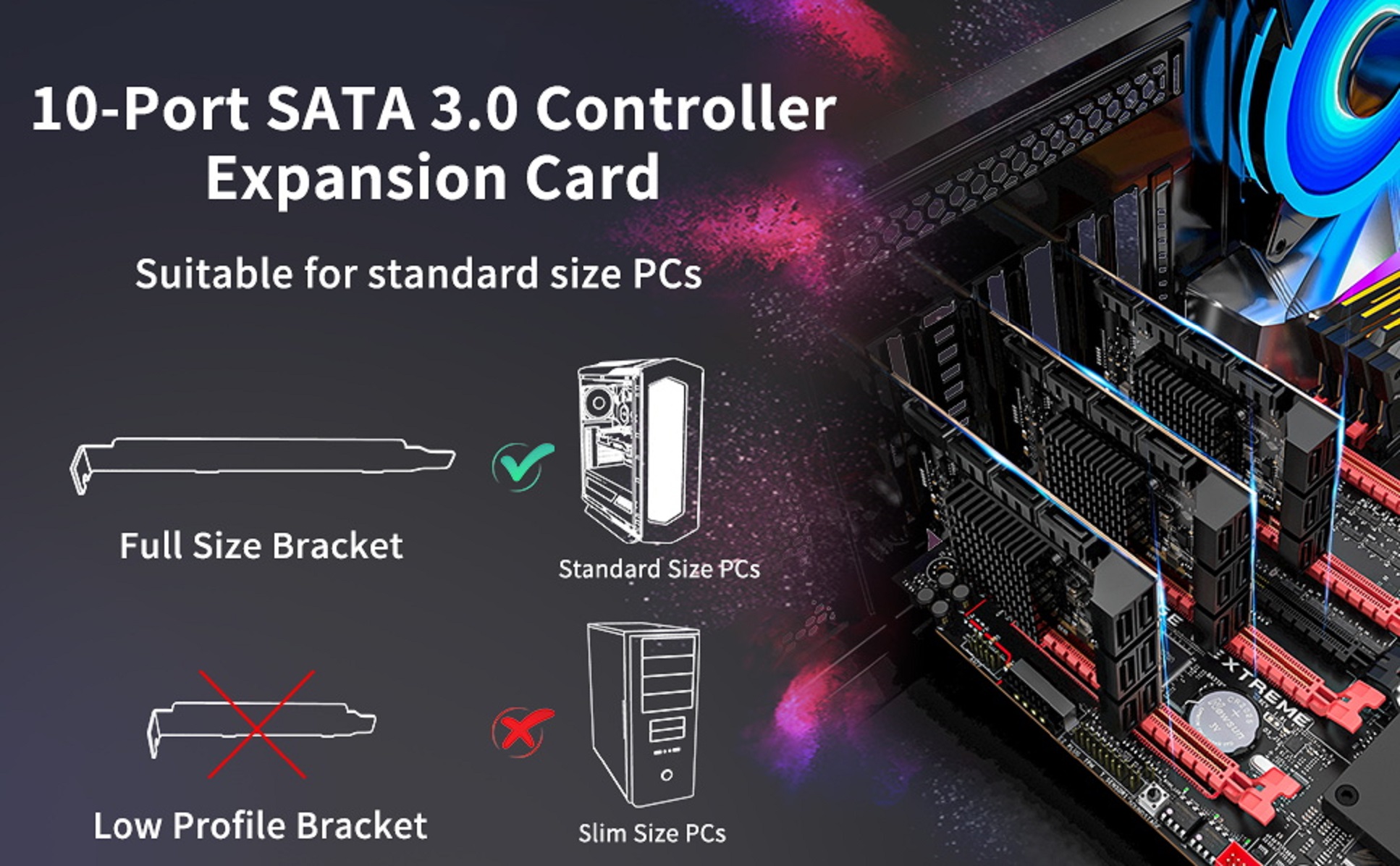

With a standard profile Bracket(full size bracket), compatible with most size chassis on the market but it doesn't compatible with slim size PCs. Before you purchase it, please check if your computer is standard size PC.

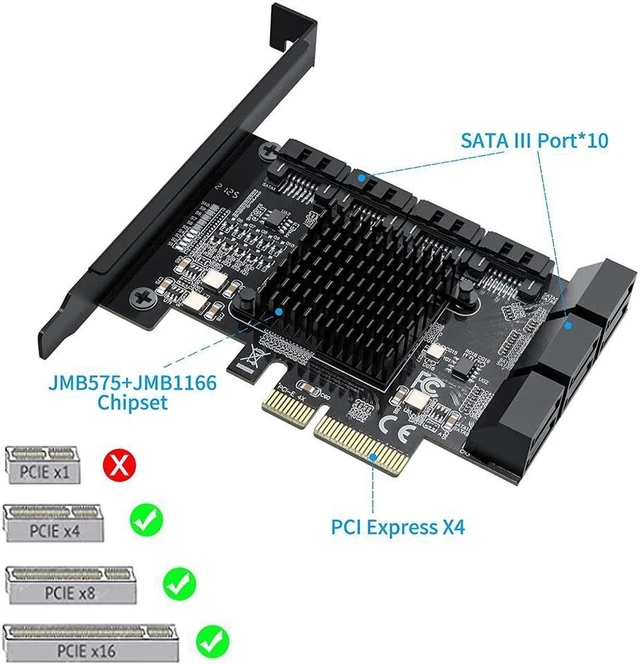

PCIe X4 Card Slot
This SATA expansion card can be used on PCIe X4/X8/X16 card slots, if your PCs or Servers have at least one PCIE X4 slot on mother board, you can choose it. No need to install driver anymore for it.

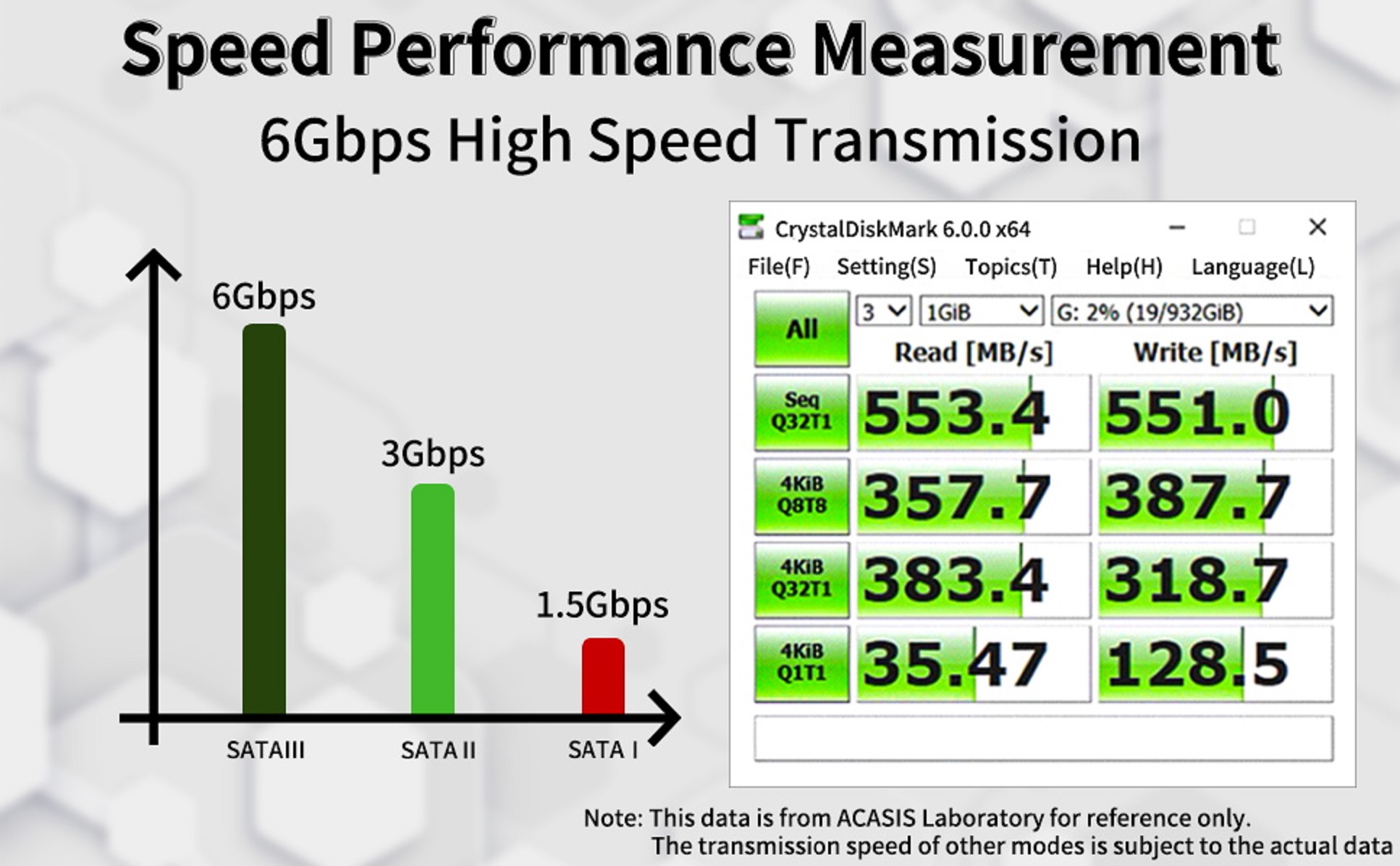

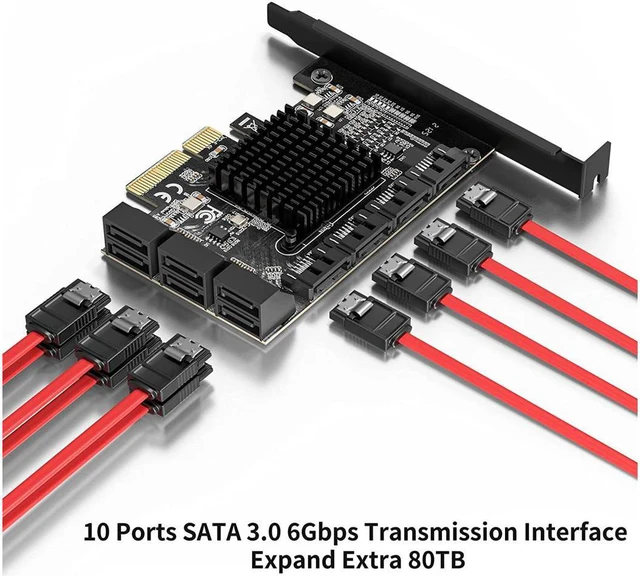

10 6Gbps SATA ports
There are 10 SATA cables and 2 SATA power splitter cable in the package, so you don't need to buy them. It provides you with a complete set of perfect match.
Powerful Heat Dissipation Function
We have installed the heat sink on top of the chip to dissipate the heat generated by the SATA card during operation, providing a normal temperature environment for the chip.
What You Get

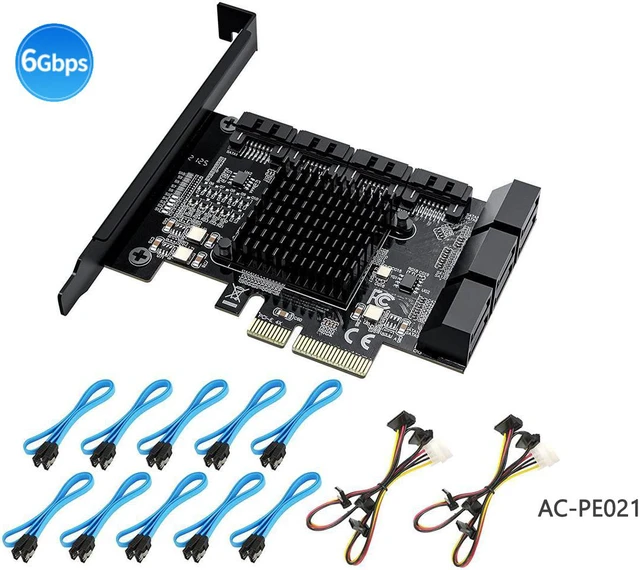

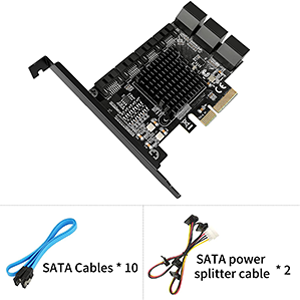

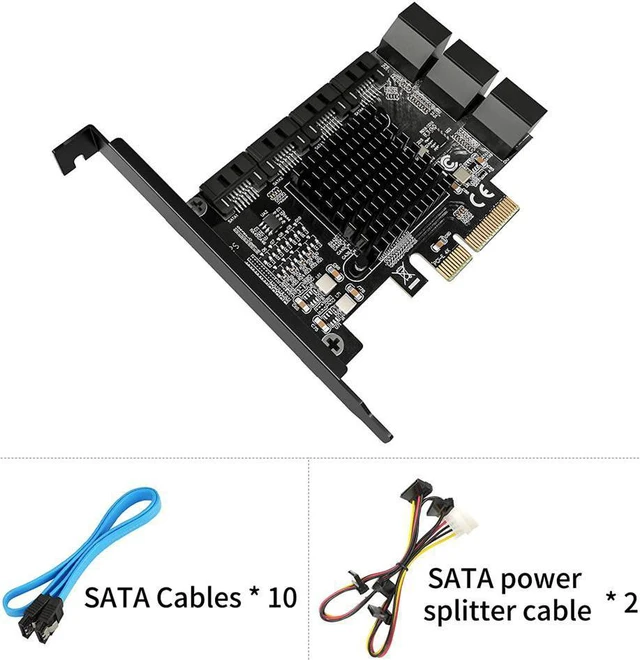

1 x PCIe to SATA 3.0 10-port controller card, 10 x SATA cable, 2 x SATA power splitter cable, 1 x user manual
Support 4 storage modes
The expansion adapter board supports the desktop computer Win8.1 64-bit professional version or above, and sets up four soft RAID storage modes
RAID1 (mirror/SAFE mode)
In this mode, the two disks are mirror images and backups of each other, and the data are the same. If a disk is damaged, just remove the faulty disk and replace it, and install a disk equal to or larger than the capacity to automatically restore data without losing data.
AHCI1 (PM mode)
In this mode, each individual disk stores data without interfering with each other, and each disk displays several disks for the independent body.
SPAN (BIG mode)
In this mode, the capacity of all disks is the largest disk, and the data will be stored on different disks. The disadvantage is that if the disk is damaged, the data will be lost and will not be retrieved.
RAIDO (FSAT mode)
In this mode, the data will be stored on multiple disks to form a whole, but the capacity is based on the capacity of the smallest disk multiplied by the number of inserted disks, and the theoretical transmission speed is twice that of a single disk
Specification:
| Color: | Black |
|---|---|
| Bus Port: | PCI-E |
| Port Quantity: | 10 x PCI-E USB |
| Size: Approx. | 3.8"x2.7" |
| Supported OS: | Windows7/8.1/10 |
Warm Tips:
1.This extension is applicable to the mainboard PCI - E 4X slot, Please plug in the power cord for the floppy. When plug PCI - E extension must be computer broken wires plug again.
2.The form a complete set of wire rod is customized, never grab line to plug in. Remember that!
3.When plug wire must identify the direction, not to counter or offset, prevent burning equipment, plug wire when the socket of equipment first, then plug wire, avoid too hard plug socket pin is broken.
Package Included:
PCIe SATA Card 10 Port with Cables * 1
More product information can be viewed on the product display picture.
Please feel free to contact us if you have any questions about the product.
