4K HDMI Over Fiber Extender with Keyboard & Mouse Port to 10 Kilometers with 10 Gbps SFP Over 1 Fiber, Max 4096 x 2160@30P (4K @ 30Hz) & Uncompressed Signal, HDCP Compliance
- Supports 4K (UHD) resolution formats up to 4096 x 2160 / 30p (4K @ 30Hz); Support USB(keyboard or mouse)
- Max extension distance 10 kilometers over 1 core single-mode Fiber or 500 Meters over 1 core Multi-mode Fiber
- Supports 1080p resolution with color depth up to 16 bits/pixel; Supports HDMI bit-rates up to 3.4 Gbps/color,10.2 Gbps total
- 10G SFP optical module enable the uncompressed signal for the flawless image quality

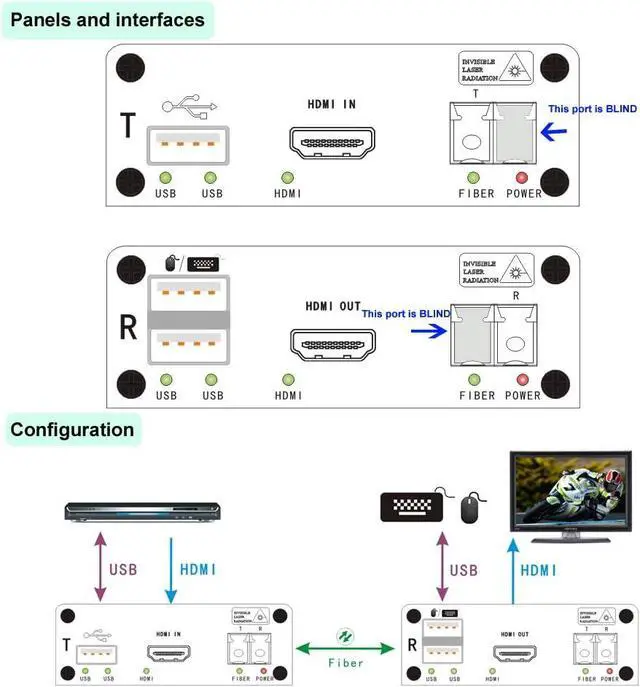

- An HDMI input and USB signals from a source device such as a set-top box or Blue-Ray player is converted into light pulses by 10G SFP transmitter module. On the display side, an 10G SFP receiver module converts the light pulses back to an HDMI and USB(keyboard or mouse) signals. BY-KVM-612SF supports optical links using either 1 multi-mode or single-mode fiber. These features make it a powerful solution for digital display applications that require flawless signal quality to longer.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Supports 4K (UHD) resolution formats up to 4096 x 2160 / 30p (4K @ 30Hz); Support USB(keyboard or mouse)
Max extension distance 10 kilometers over 1 core single-mode Fiber or 500 Meters over 1 core Multi-mode Fiber
Supports 1080p resolution with color depth up to 16 bits/pixel; Supports HDMI bit-rates up to 3.4 Gbps/color,10.2 Gbps total
10G SFP optical module enable the uncompressed signal for the flawless image quality
An HDMI input and USB signals from a source device such as a set-top box or Blue-Ray player is converted into light pulses by 10G SFP transmitter module. On the display side, an 10G SFP receiver module converts the light pulses back to an HDMI and USB(keyboard or mouse) signals. BY-KVM-612SF supports optical links using either 1 multi-mode or single-mode fiber. These features make it a powerful solution for digital display applications that require flawless signal quality to longer.
Max extension distance 10 kilometers over 1 core single-mode Fiber or 500 Meters over 1 core Multi-mode Fiber
Supports 1080p resolution with color depth up to 16 bits/pixel; Supports HDMI bit-rates up to 3.4 Gbps/color,10.2 Gbps total
10G SFP optical module enable the uncompressed signal for the flawless image quality
An HDMI input and USB signals from a source device such as a set-top box or Blue-Ray player is converted into light pulses by 10G SFP transmitter module. On the display side, an 10G SFP receiver module converts the light pulses back to an HDMI and USB(keyboard or mouse) signals. BY-KVM-612SF supports optical links using either 1 multi-mode or single-mode fiber. These features make it a powerful solution for digital display applications that require flawless signal quality to longer.
