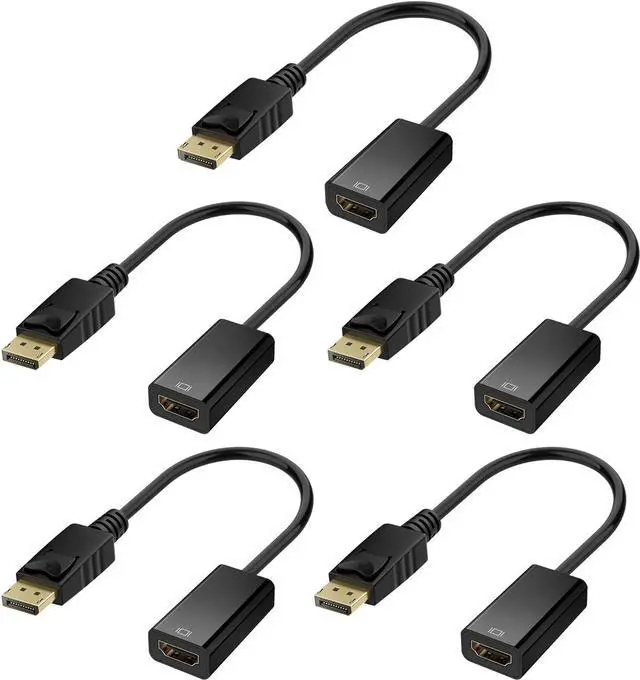

DISPLAYPORT to HDMI Male to Female Adapter
DisplayPort to HDMI Adapter provides a cost-effective and easy solution for connecting a desktop, laptop, or other devices with DisplayPort port to a HDMI display such as monitor, projector or TV. Connect the DisplayPort male end of the converter to the DisplayPort port of your DisplayPort device, and connect the HDMI female end to your HDMI cable from the display.
Specifications
- Input (from video source): DisplayPort Male
- Output (to monitor): HDMI Female
- Audio Support: Yes
- Installation: Plug and Play
Comprehensive Solution

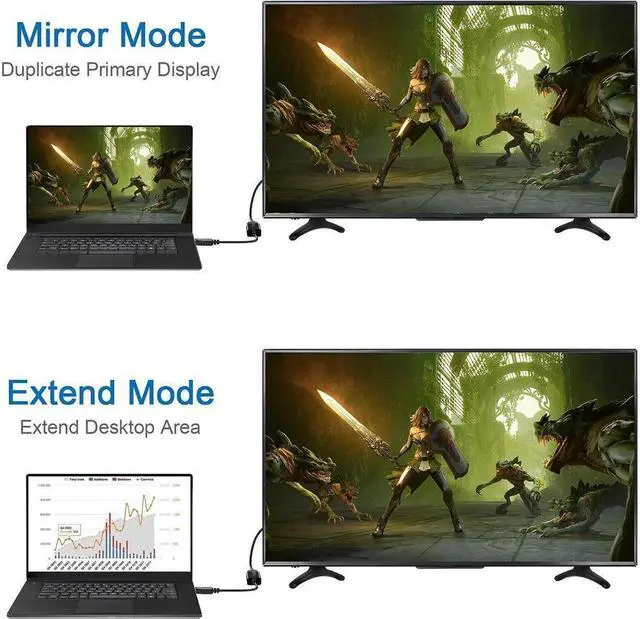

Mirror Mode: Makes your holiday photos and favorite films so much more interesting and enjoyable on the big screen!
Extended Mode: Works like a charm for multitasking.

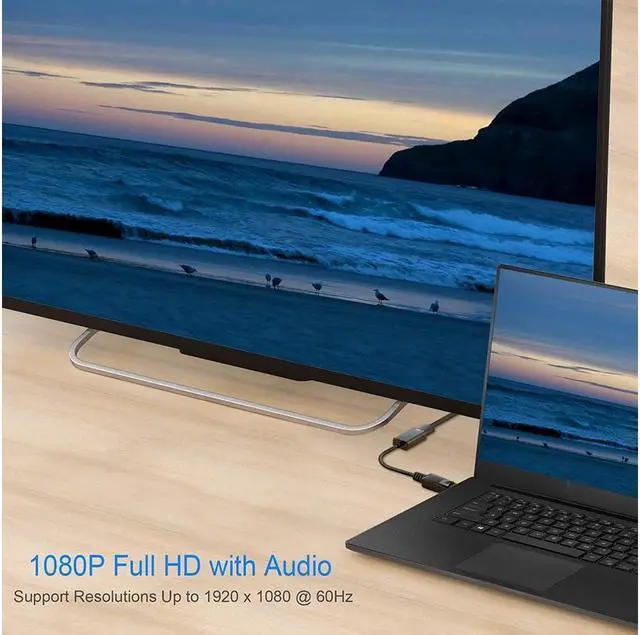

Video and Audio: Supports video resolutions up to 3840*2160@30Hz, including1920*1200@120Hz, 1080p (Full HD) and flawless audio pass-thru for uncompressed digital 7.1, 5.1 or 2 channels
Widely Usage
Desktops and laptops with an available DisplayPort output, the monitor with HDMI input.
KIND REMINDER
It's not for the montior with DisplayPort input, it's anuni-directional adapter. If your video source is HDMI and monitor is with DisplayPort input. Another solution, HDMI to DisplayPort with external power input is required. Please see the table in the following.
Few docking station doesn't support DP++ Mode. if so, Another solution, Active DP to HDMI is required. Please see the table in the following.
Important Note:

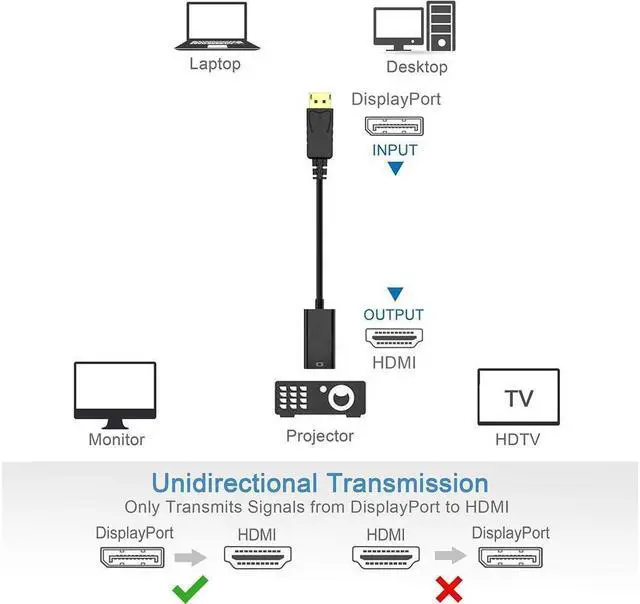

1) Not Bidirectional, Only for Displayport Computer/Laptop to HDMI Monitor
It's not for the monitor with DisplayPort input, it's an uni-directional adapter.
Not work with Fire TV Stick, XBOX etc. Which have HDMI output port.
If your video source is HDMI and monitor is with DisplayPort input. Another solution, HDMI to DisplayPort with external power input is required. Please see the table in the following.
2)Passive Adapter
Few docking station doesn't support DP++ Mode. if you are using docking station, we suggest to choose Active DP to HDMI adapter. Please see the table in the following.
3)Not Compatible with USB
Displayport is different with USB Port. This Adapter is Not compatible with USB Port.
If you need USB to HDMI Adapter, please check the following table
