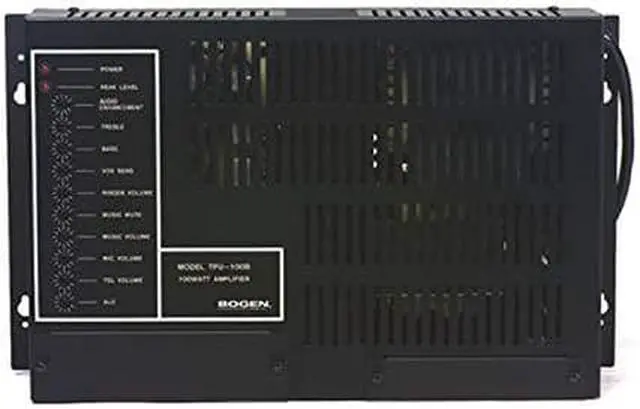

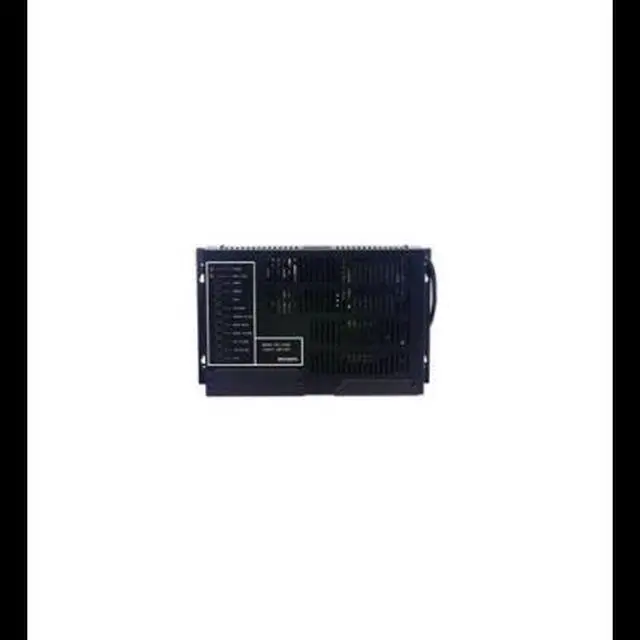

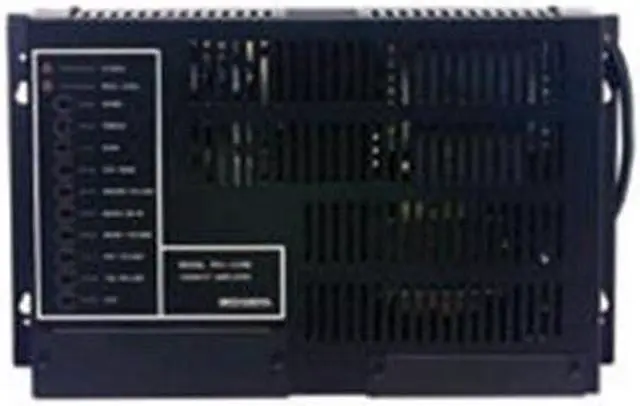

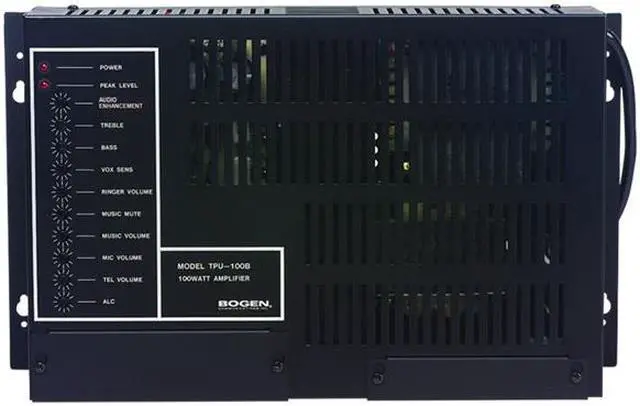

100 Watt Amp

Bogen 100 watt wall-mounted telephone paging amplifier
Inputs for 600-ohm balanced telephone line, LO-Z balanced microphone, and background music
Integral automatic level control circuit for controlling pages made by persons with varying voice levels and paging techniques
Page from telephone and/or microphone
Signal-activated paging channel automatically mutes background music
Adjustable background music muting level during a page
Music gradually returns to its normal level after a page
Aphex Aural Exciter increases intelligibility, improves perceived loudness (with no increase in power), and reduces listener fatigue
Seperate controls for page volume, music volume, night ringer, music mute and Aphex Aural Exciter
Bass and treble controls
Built-in night ringer activated by contact closure or by 90V ring signal
Balanced or unbalanced 16-ohm, 25V, 25VCT, and 70V outputs
VOX sensitivity level control eliminates transmission of background noise when paging from a telephone
Thermal and electronic overload protection
Jacks provided for bridging additional TPU amplifiers
Brackets are attached for easy wall mounting
Peak level indicator lights when amplifier is driven into clipping
120V AC, 60Hz power source
UL and CSA listedTPU100B
