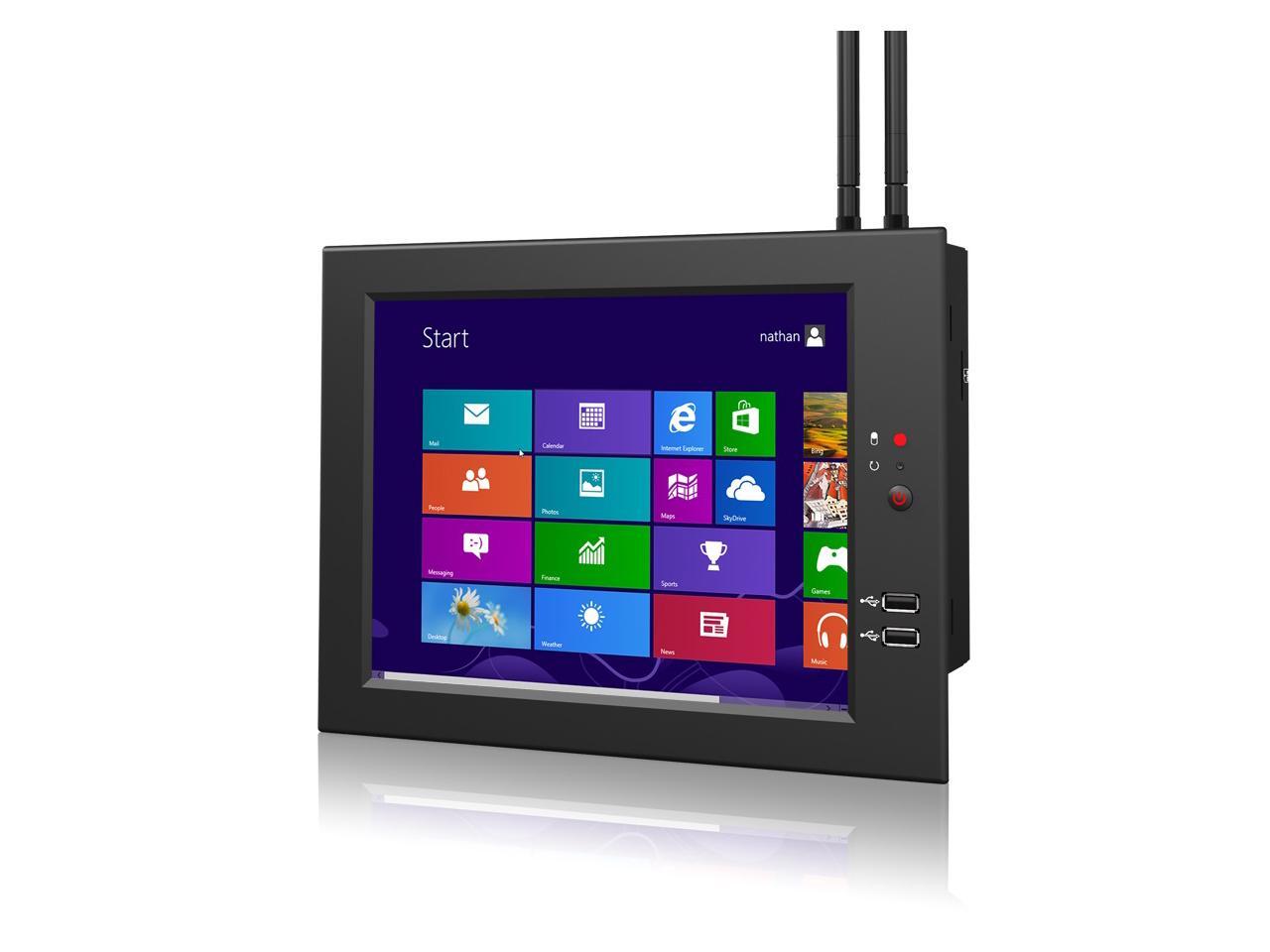

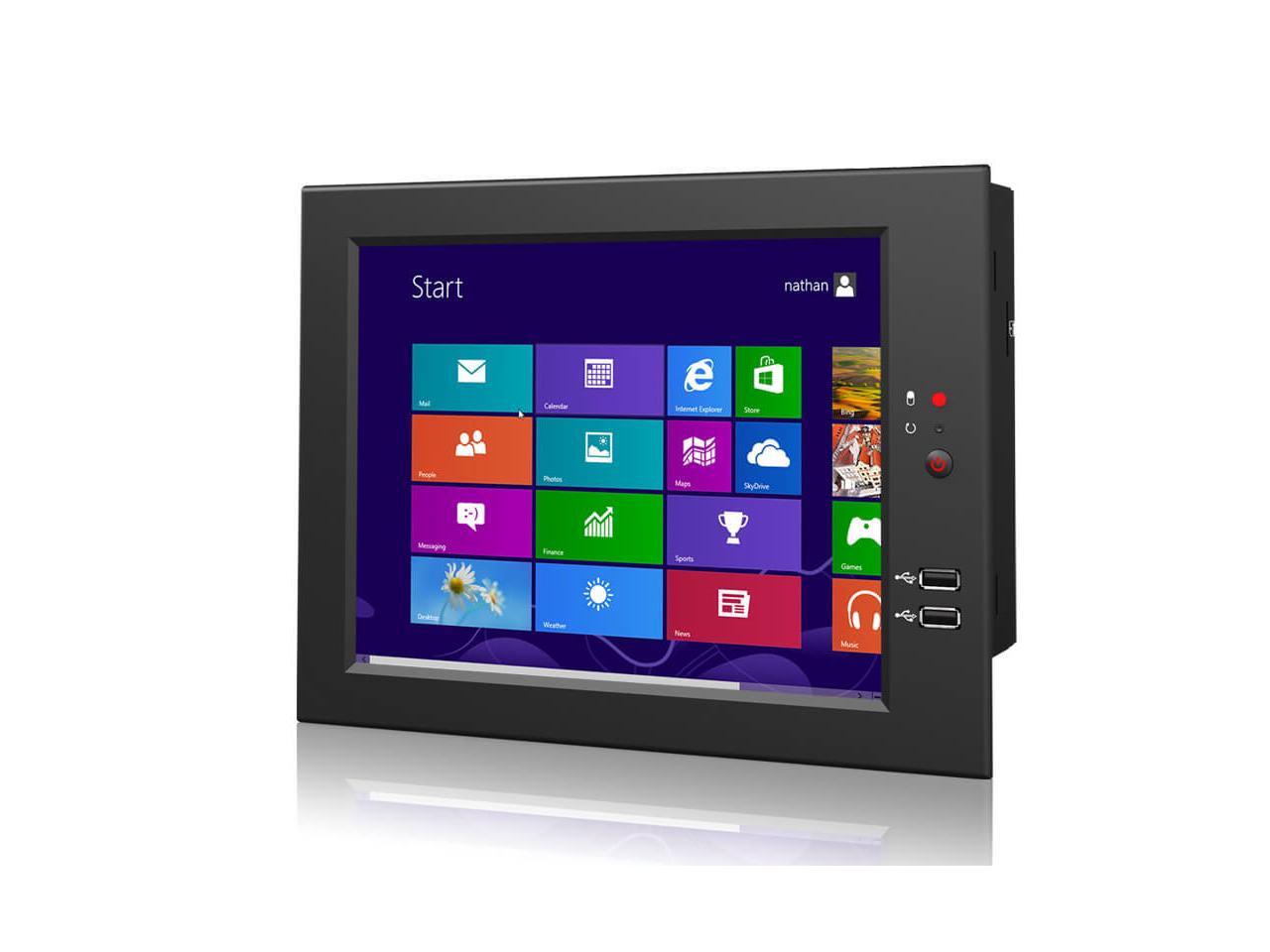

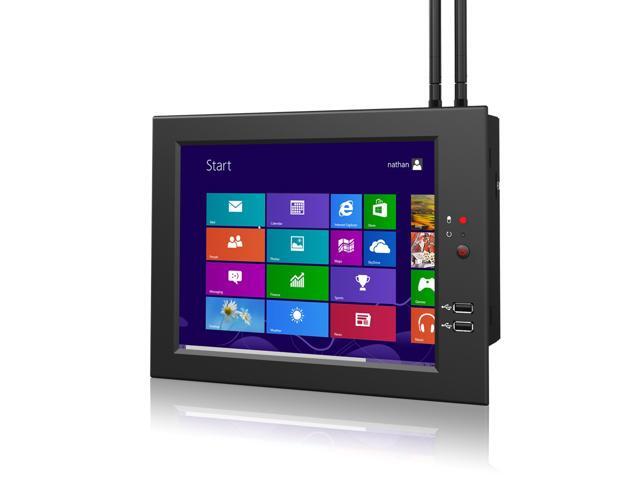

MODEL :PC-1041/C/T 10.4" AIO Industrial Computer
Powerful 1.86GHz dual-core CPU, 2G DDR3 RAM;
10.4” LED display with 5 wire resistive touch;
RS232 × 4, COM 2 supports RS485/232/422;
Fanless cooling system;
Wide voltage 6-32V for optional;
3G/WIFI/Bluetooth/GPS for optional;(those are not included ,if you like to order with them please contact VIVITEQ INC ) Metal housing design;
HDMI & VGA output;
Dual Ethernet port;
Multiple mount methods.
Display Screen 10.4“ LED backlit
Resolution 800×600 (1,440,000) pixels
Touch Panel 5-wire resistive
Brightness 250cd/?
Aspect Ratio 4:3
Contrast Ratio 500:1
Viewing Angle 140° / 110°(H/V)
OS :COMPATIBILTY WITH Windows 7/8, Windows Embedded 7, Linux(OS is not included )
CPU Intel N2800, dual-core 1.86GHz
Memory 2G DDR3, optional: 4GB
Storage PCIe mSATA SSD 32G,
Chipset Intel NM10 chipset
L2 Cache 1024KB
Video Card built-in display memory
Sound Card 4 channels
Expansion Built-in Mini PCIe×1,

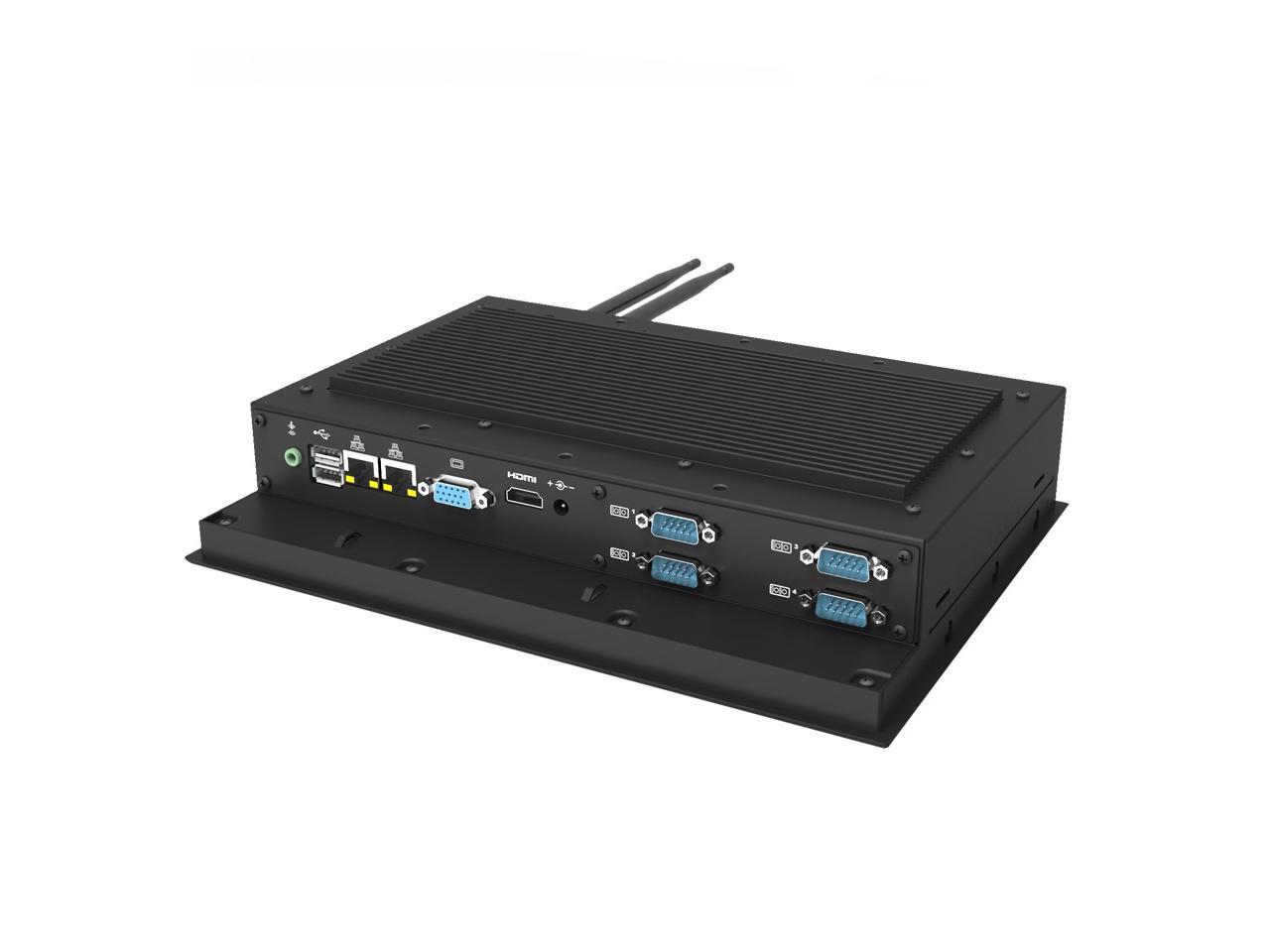

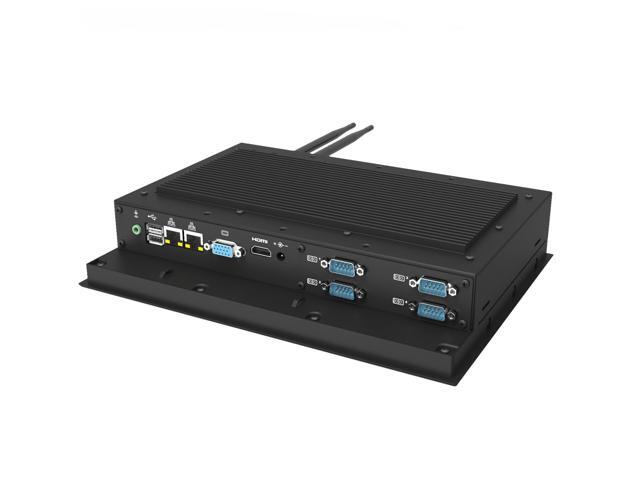

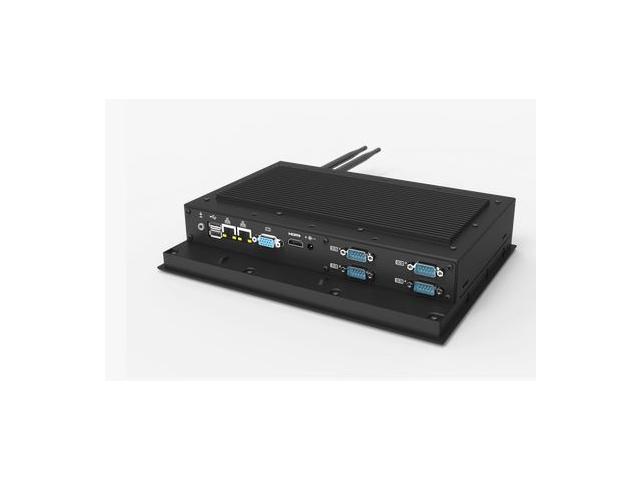

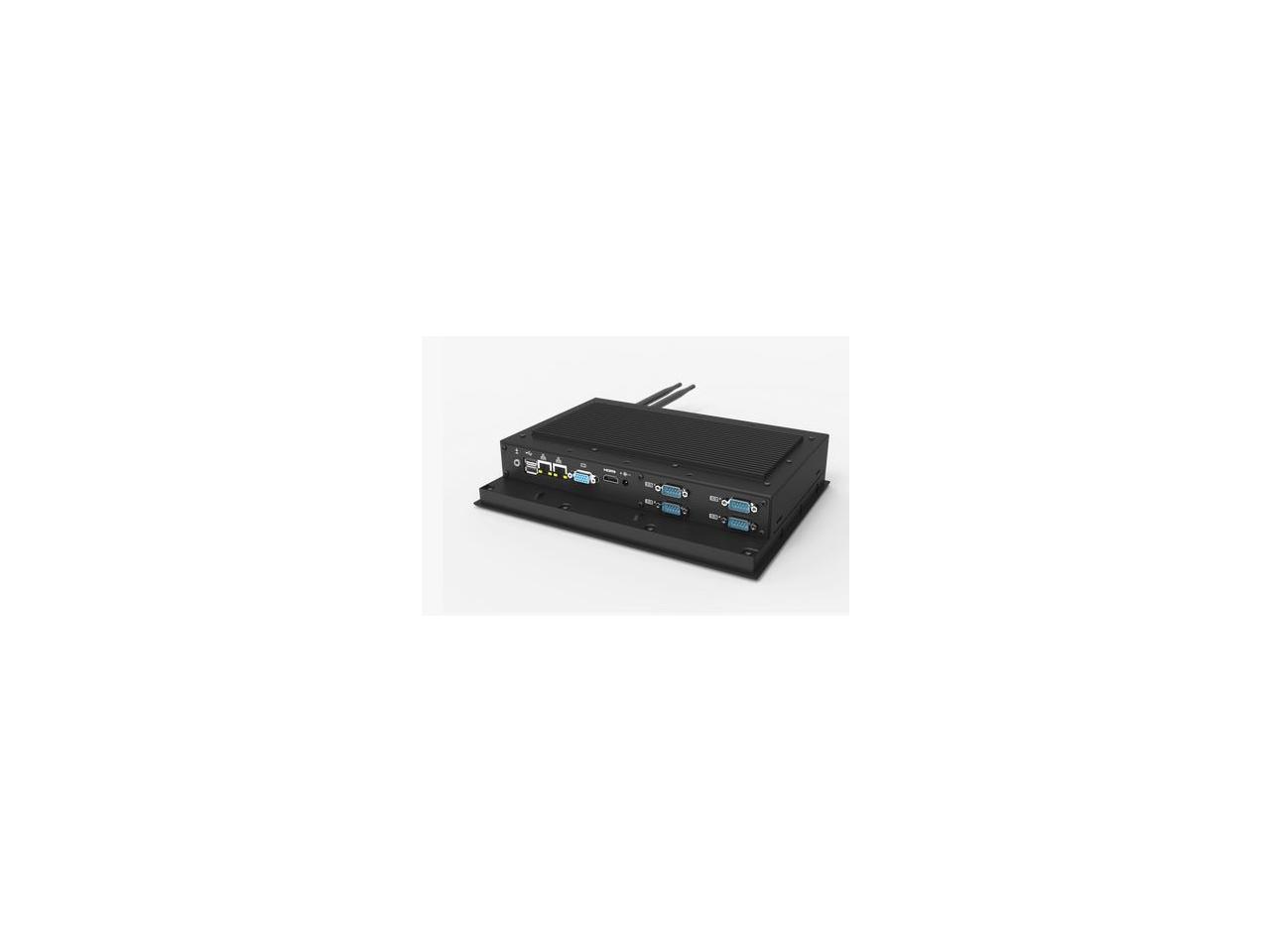

Interface RS232×4 (COM2 support RS232/422/485), HDMI out, VGA out, Audio out,
DC 12V in, USB2.0×4, LAN×2, SIM slot, Antenna,
Input Voltage DC 12V, optional: DC 6-32V wide voltage
Current 1.8A
Power Consumption =22W
Speaker 1W
Working Temperature 0~50ºC
Storage Temperature -10~65ºC
Dimension(LWD) 280 × 210 × 58.8 mm
Weight 2190g
what's in the package:
Power adapter
VESA screws
Fixed bracket
Driver disk
Operation manual
