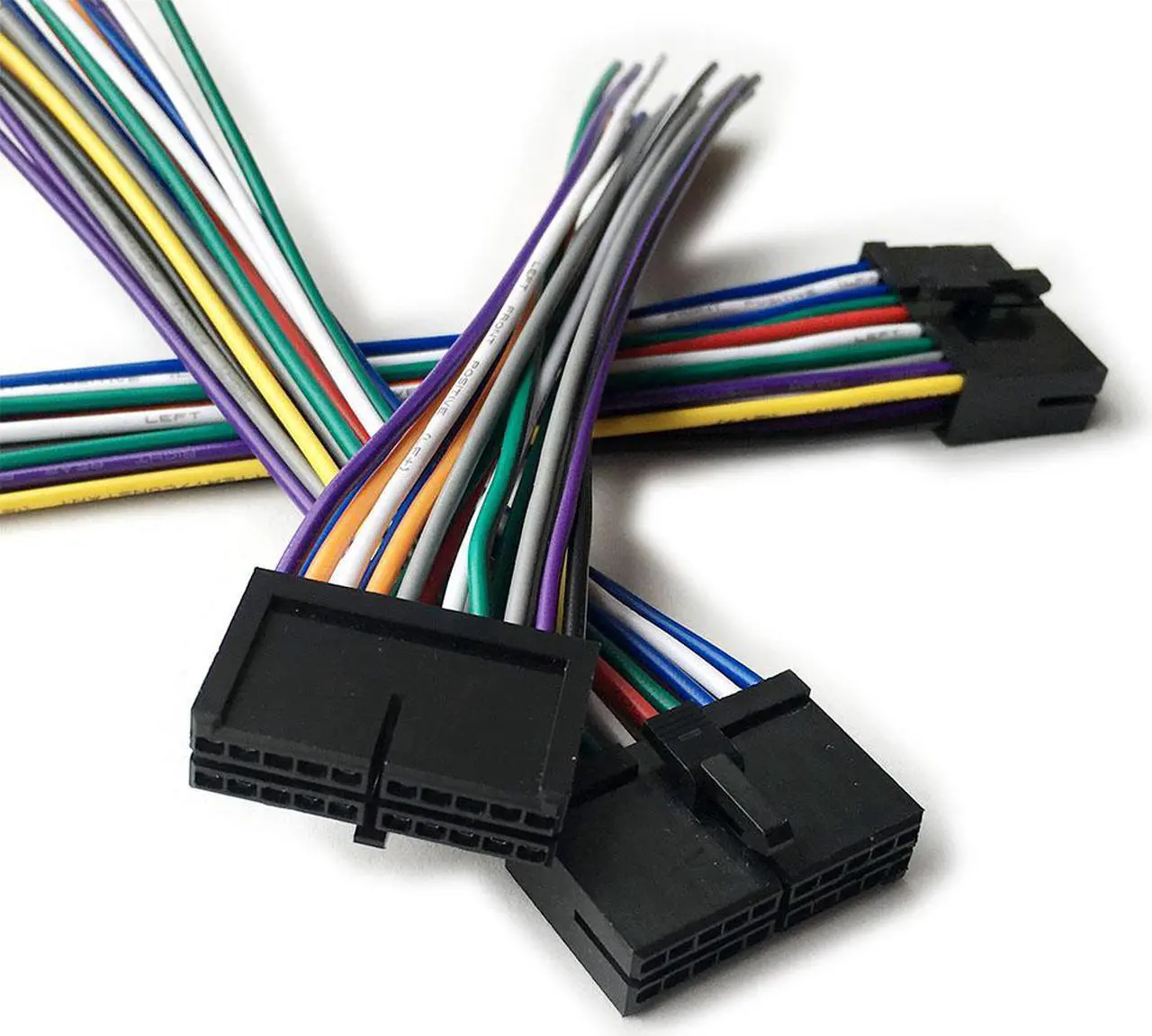

NEW WIRE HARNESS for JENSEN AWM968 VX7010 / VX7020 player
+
+
Overview
Specs
Reviews
NEW WIRE HARNESS for JENSEN AWM968 player VX7010 /
VX7020 Technical Specification:
Pin: 20pin

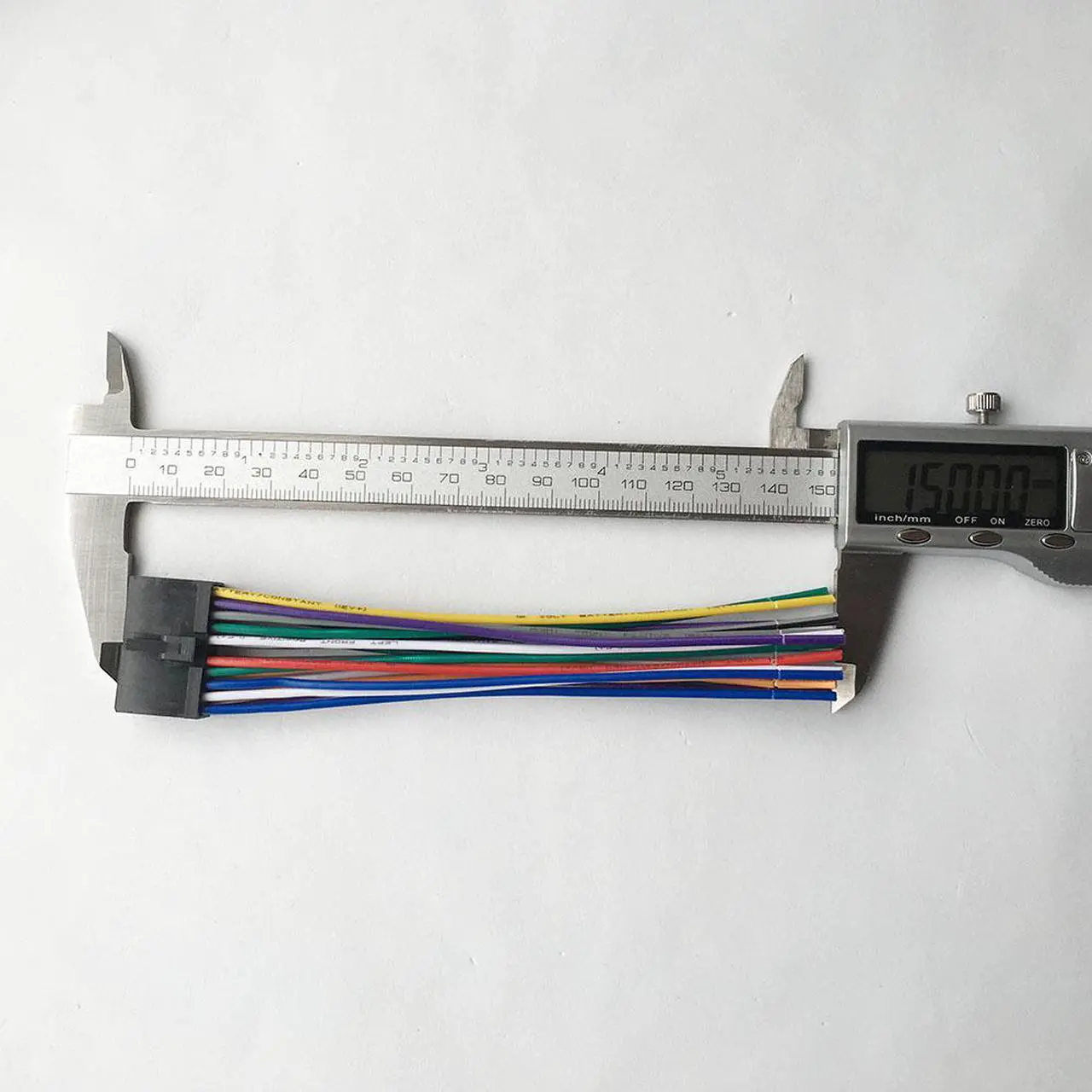

Wire length: about 5 inch
Connections: Color Code Yellow – 12V Constant (12V+) Red – 12V Accessory/Ignition/Switched (12V+) Black - Ground(12V-) Blue - Power Antenna Orange – Dash Light Dimmer/Illumination Green – Left Rear Speaker (+) Green with Black Stripe Left Rear Speaker (-) White – Left Front Speaker (+) White with Black Stripe – Left Front Speaker (-) Purple – Right Rear Speaker (+) Purple with Black Stripe – Right Rear Speaker (-) Gray – Right Front Speaker (+) Gray with Black Stripe – Right Front Speaker (-) * This Harness is for DIY, not totally same connection as the original. Some of the additional wires may have special functions, for more information about this please refer to the your stereo/radio manual
Package Includes: 1 x 20pin Radio Wire Harness (Please make sure you know how to connect and modify before order, otherwire donn't buy )
VX7020 Technical Specification:
Pin: 20pin
Wire length: about 5 inch
Connections: Color Code Yellow – 12V Constant (12V+) Red – 12V Accessory/Ignition/Switched (12V+) Black - Ground(12V-) Blue - Power Antenna Orange – Dash Light Dimmer/Illumination Green – Left Rear Speaker (+) Green with Black Stripe Left Rear Speaker (-) White – Left Front Speaker (+) White with Black Stripe – Left Front Speaker (-) Purple – Right Rear Speaker (+) Purple with Black Stripe – Right Rear Speaker (-) Gray – Right Front Speaker (+) Gray with Black Stripe – Right Front Speaker (-) * This Harness is for DIY, not totally same connection as the original. Some of the additional wires may have special functions, for more information about this please refer to the your stereo/radio manual
Package Includes: 1 x 20pin Radio Wire Harness (Please make sure you know how to connect and modify before order, otherwire donn't buy )
