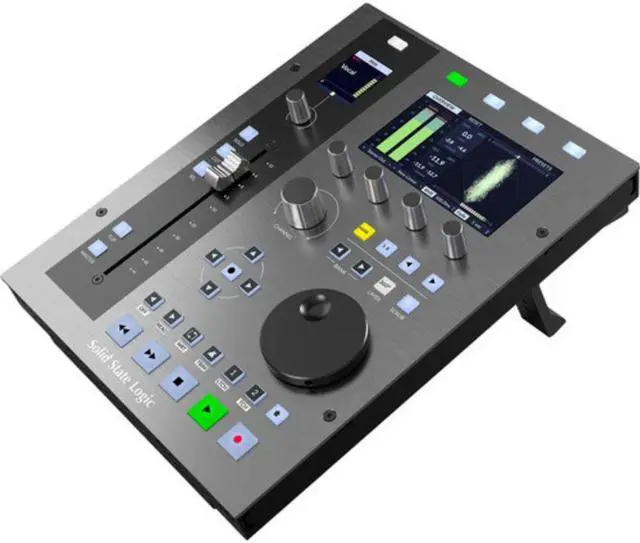

Solid State Logic UF1 Single-Fader DAW Control Surface

Add the renowned workflow of an SSL console to your DAW with the UF1 Single-Fader DAW Control Surface from Solid State Logic. Featuring a 100mm motorized fader, dual high-resolution displays, durable soft-feel rubber keys, and a weighted jog wheel, the UF1 puts all the essential control elements at your fingertips, with 46 customizable soft keys to provide you with a tactile, studio-style mixing experience that will help you focus on your creativity for professional sounding results. In addition to providing a winning combination of clear visual feedback and intuitive operation, the unit also offers deep integration with the SSL Meter Plug-In (license included) and the SSL 360° software (available separately), all in a desktop module encased in a robust metal chassis.



One to Control Them All

The UF1 can control up to 3 DAWs simultaneously and comes with profiles for Pro Tools, Logic, Cubase, Studio One, Ableton Live, LUNA, and Pyramix. Dedicated transport controls and weighted jog/scrub wheel make moving around, even the largest session, quick and efficient. Secondary transport keys can be customized to essential workflow shortcuts, such as loop on/off and click track on/off. Or press the Shift button for fast access to DAW automation modes. The premium 100mm motorized SSL fader offers precise control when writing automation, and of course, fine tuning track volume in recording and mixing sessions.

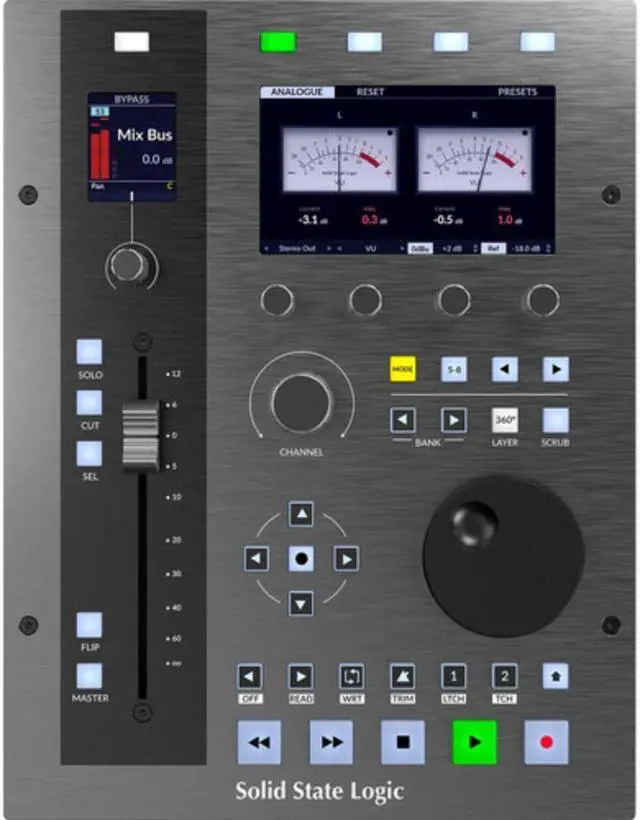

Dual high-resolution displays provide in-depth visual feedback of DAW track names, parameters, time display, the SSL Meter plug-in and 360°-enabled channel strips in the SSL Plug-In Mixer. Control SSL Channel Strip plug-ins directly from the UF1 surface, with the plug-ins EQ curve shown on the large display. Gate and compression activity is also shown on the small display. The large, multipurpose notched encoder allows for channel banking, mouse wheel emulation (Focus mode), and control of computer system volume.



Meter Plug-In and SSL 360° Integration

Beyond its comprehensive DAW control, every UF1 purchase includes a perpetual license for the SSL Meter plug-in, which is visualized on the large 4.3" IPS display and can be controlled directly from the UF1 surface or the SSL 360° Plug-In Mixer.



The SSL Meter Plug-In offers essential metering tools, including peak & RMS levels, K-System, stereo balance, phase correlation bar, Lissajous phase scope, 31-band RTA, and VU and PPM metering.



Dual True Peak and RMS meters, supplemented by max and current text readouts give you essential feedback on levels and overloads. A Lissajous phase scope with adjustable fade rate, together with a phase correlation meter and stereo balance bar help flag phase and imaging issues within your stereo mix.

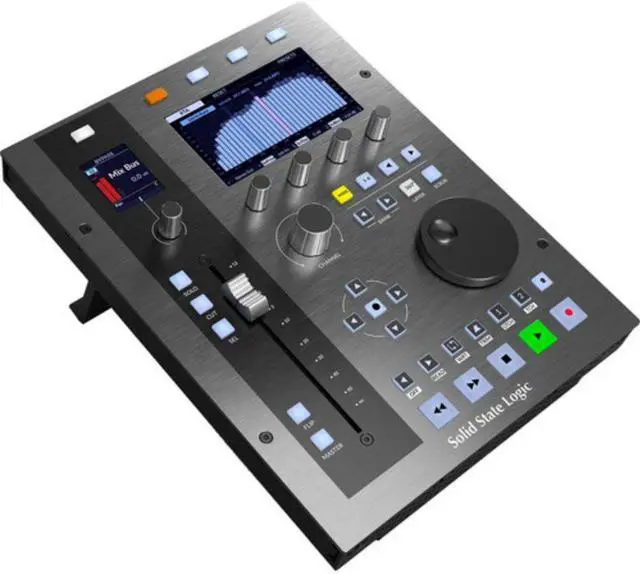

The 31-band Real-Time Analyzer (RTA) displays the frequency spectrum of your instrument or mix, allowing you to pinpoint any problem areas. You can interrogate each band for precise frequency values as well as being able to adjust the Peak hold time and Averaging time to suit the source material.



Expand UF1 with SSL UC1 and UF8 Controllers

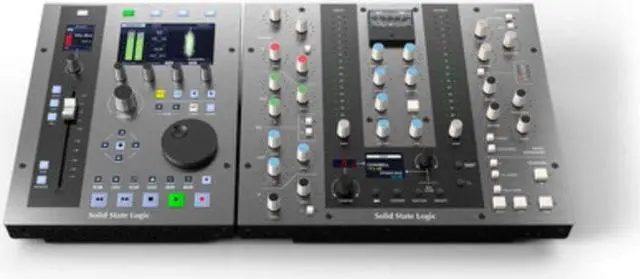

The UF1 can be used on its own or partnered with UF8 for an even deeper SSL DAW control experience. The UF1 is also the perfect hardware expansion for the UC1 SSL plug-in controller, adding fader control and providing easy access to SSL 360°-enabled channel strip parameters alongside visual feedback of EQ curves.

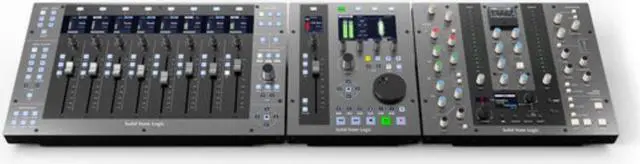

For the ultimate SSL controller setup offering full SSL virtual console workflow, combine up to four UF8s with the UC1 and UF1.





Box Contains

Solid State Logic UF1 Single-Fader DAW Control Surface


• 1 x USB-C to USB-C Cable (4.9')


• 2 x Stand


• 4 x Screw


• Hex Key


• 1 x AC Power Adapter with Swappable Regional Plugs
