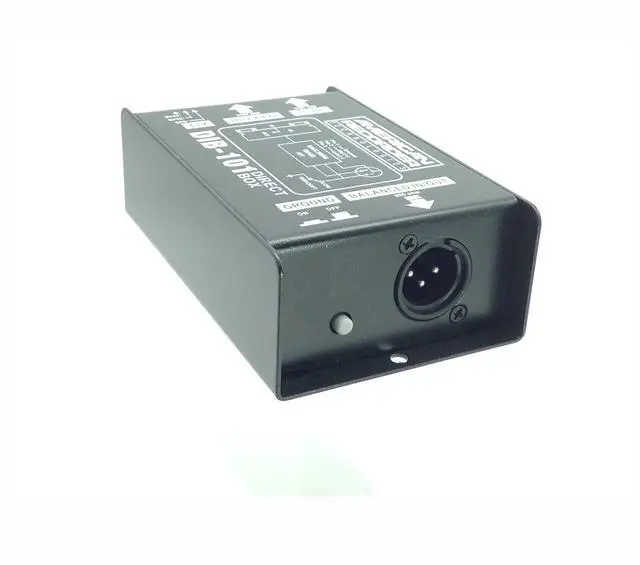

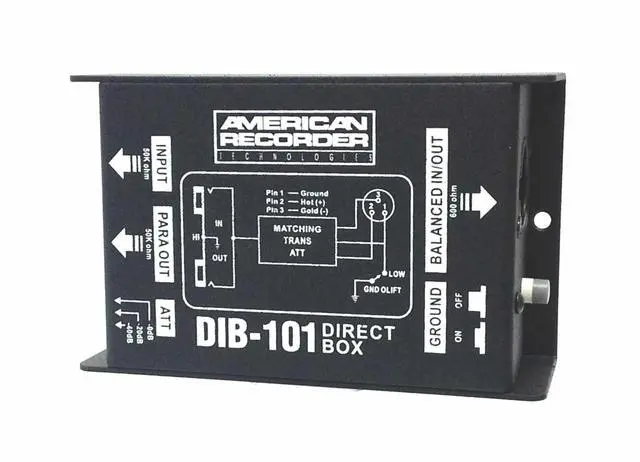

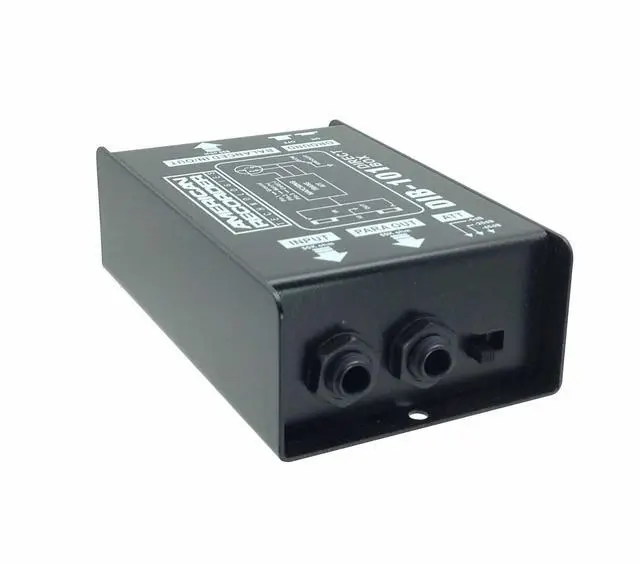

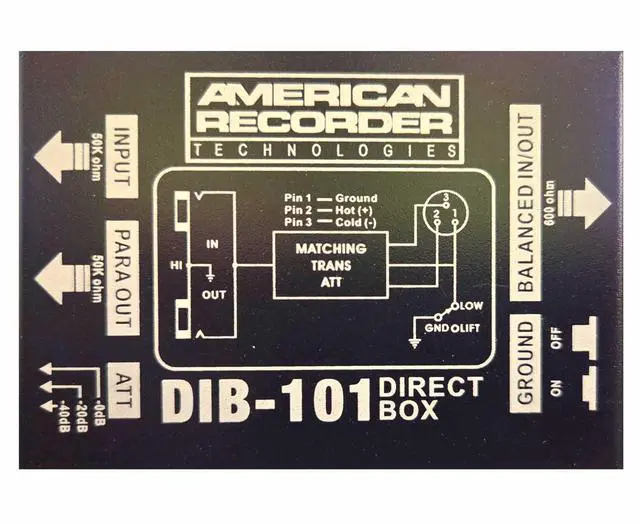

AMERICAN RECORDER DIB-101 Passive Direct "DI" Box
- AMERICAN RECORDER DIB-101 Passive Direct "DI" Box
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The AMERICAN RECORDER DIB-101 Passive direct box (aka "DI" box) allows interfacing and connecting all types of unbalanced high-impedance signals tobalanced low impedance signals. As an example, when connecting instruments such as guitars and keyboards directly to a mixing console. This will also allow for much longer cable runs, which is not desired with high-impedance signals.
And since the DIB-101 is totally passive, it does not require any power to operate, simply plug in and your good to go!
FEATURES
HIGH-IMPEDENCE IN/OUT 1/4" JACKS
Provides high impedance output connection for connection to guitar amp, etc.
ATTENUATION SELECTOR SWITCH
Three level selector adjust signal level - 0dB, -20dB, -40dB
XLR BALANCE MIC IN/OUT
Allow DIB-101 to be used in reverse! Plug in dynamic microphone and send signal out the high-impendence 1/4" jack. Handy when you want to connect a microphone to a guitar amp.
GROUND LIFT SWITCH
Eliminate AC hum caused by ground loops
