Q: Why does Windows require the Khadas USB driver?
A:The Khadas USB driver provides ASIO support and removes the latency and sample rate conversion issue experienced with the default Windows USB driver for DACs.

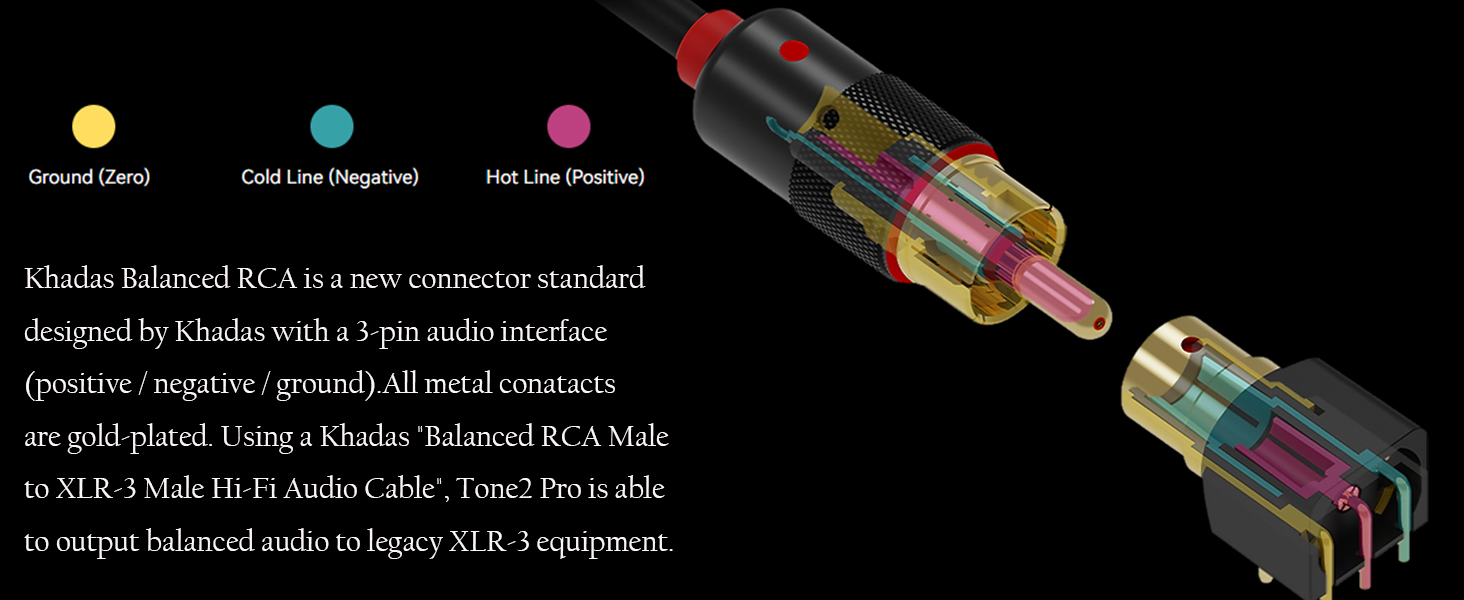

Q: What is balanced-RCA?
A: A new balanced audio connector standard, designed by Khadas for small form-factor desktop DACs. It is backwards compatible with standard RCA plugs and cables.
Q: How do I use my existing XLR-3 equipment with Balanced-RCA?
A: Purchase the Khadas Balanced-RCA to XLR-3 adapter, it is a male Balanced-RCA plug connected to a male XLR-3 plug.

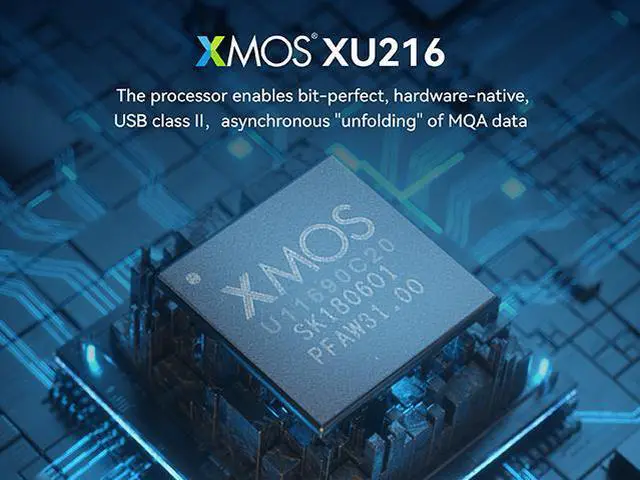

Q:What does MQA stand for?
A: MQA(Master Quality Authenticated) is an award-winning audio codec technology. The master MQA file is fully authenticated for high sample rate audio and is small enough to stream and download.
| Maximum Supply Voltage |
5V |
| Minimum Supply Voltage |
3V |

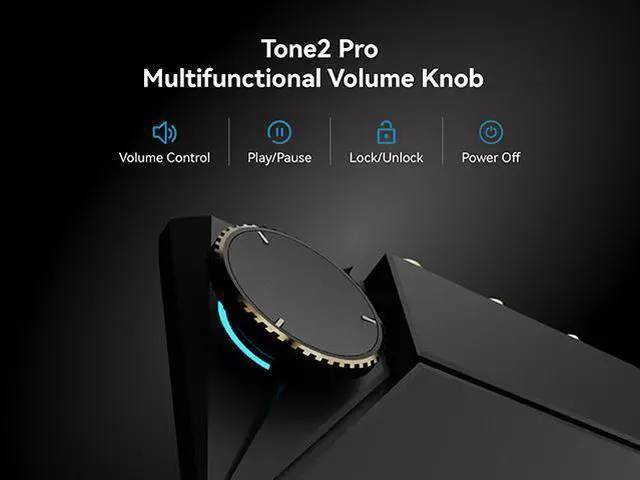

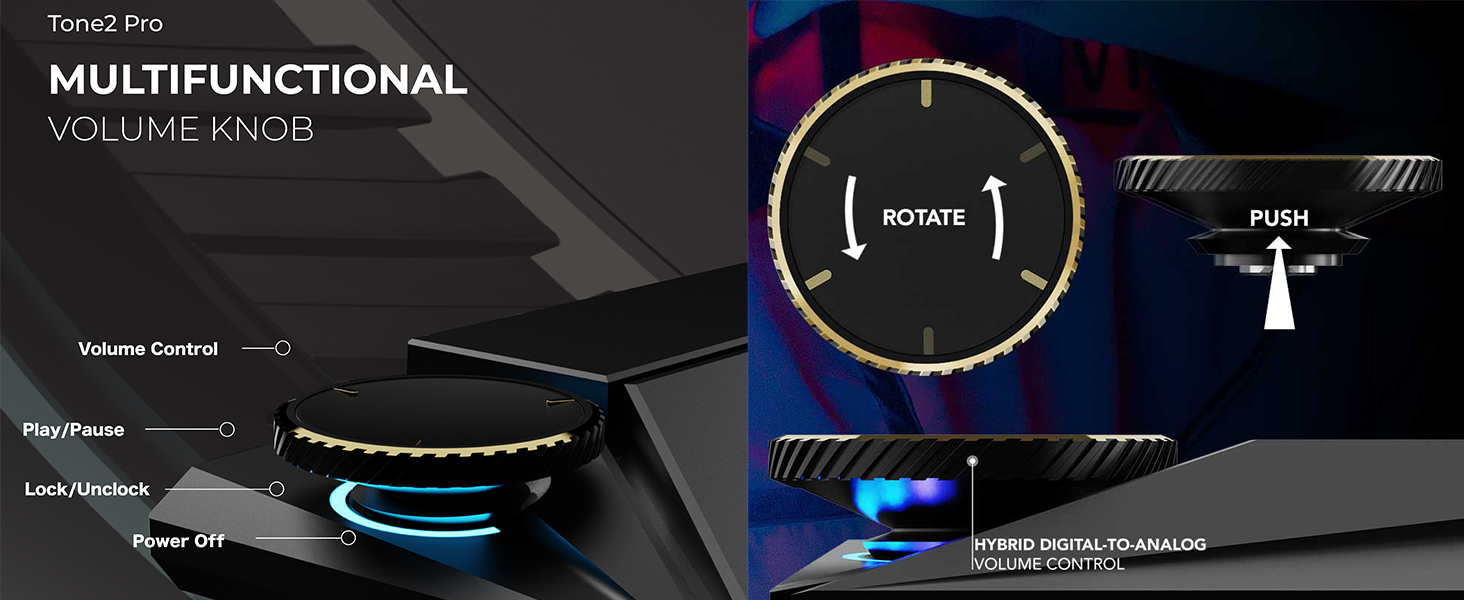

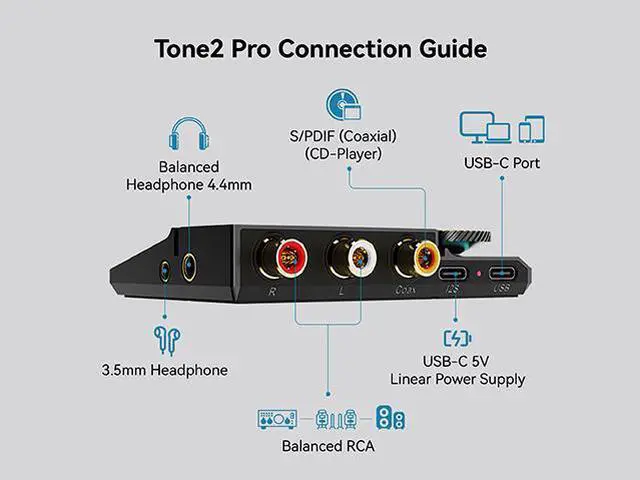

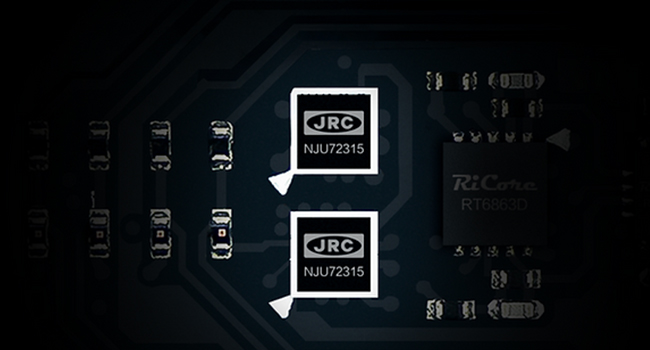

Power-Noise Isolation.: Balanced headphone amp includes a 4.4 mm balanced headphone jack in addition to the standard 3.5 mm single-end jack. The Tone2 Pro's aluminum enclosure incorporates a hybrid digital/analog volume control knob, allowing you to rely entirely on analog signal attenuation for accurate sound reproduction. you can connect a 5V linear power supply to the second USB-C port whilst having USB-C data on the first for excellent power-noise isolation.

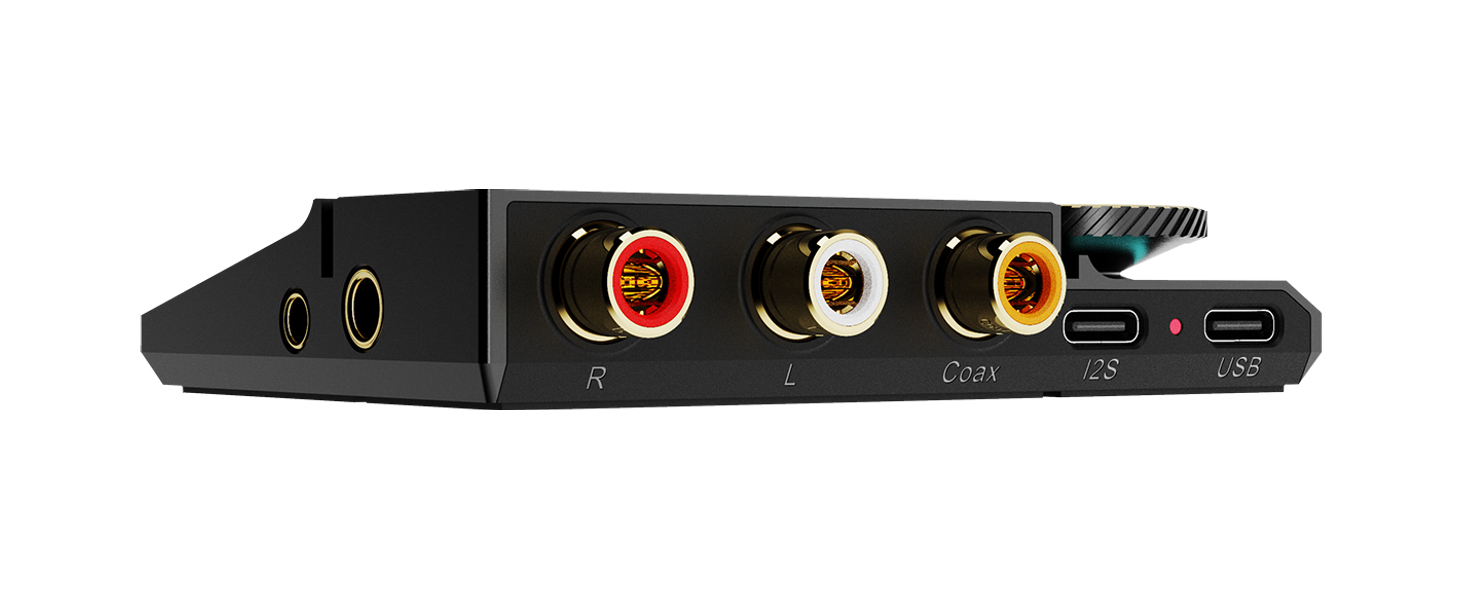

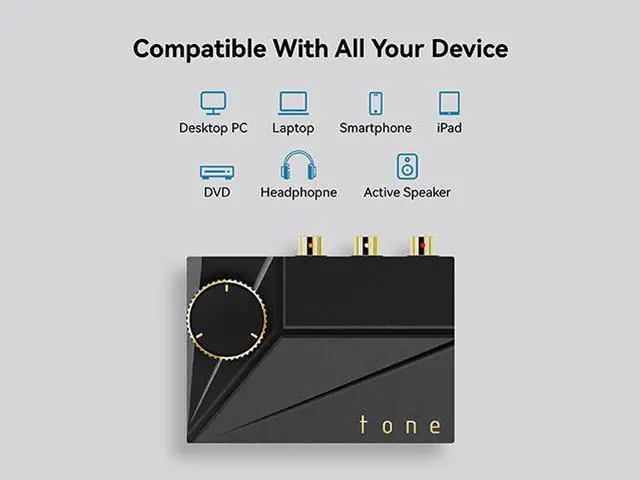

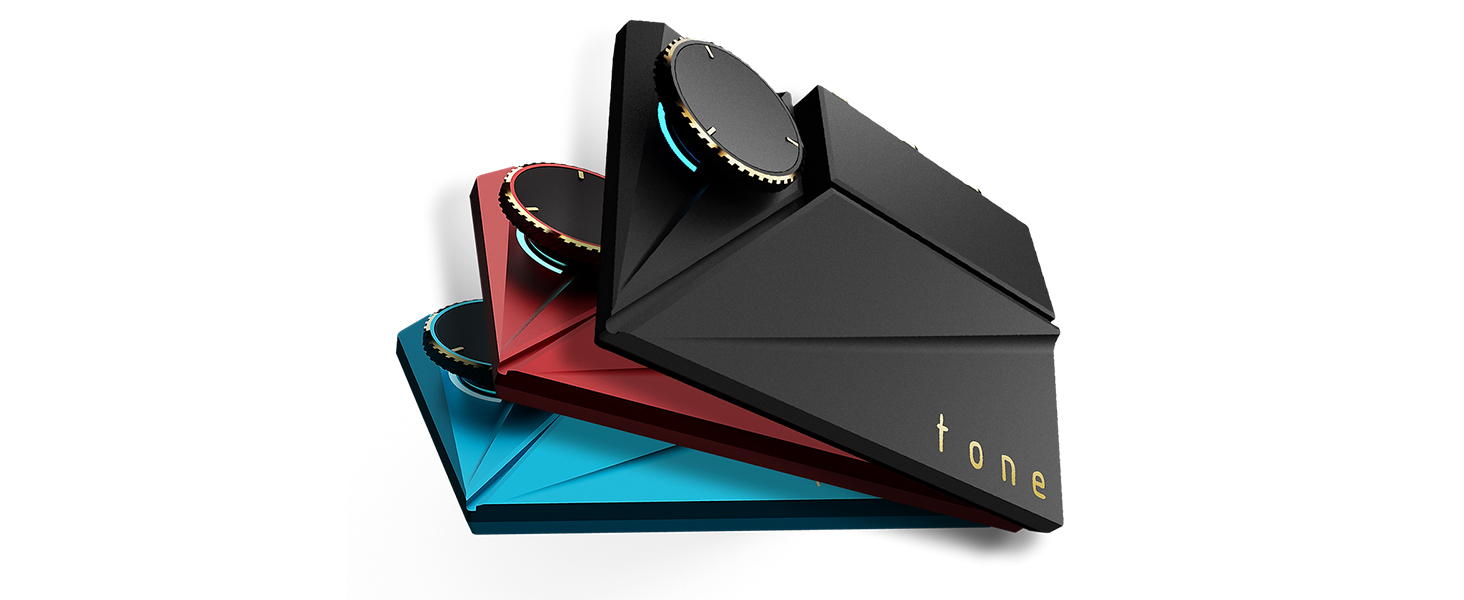

Compact Design: khadas dac amplifier has a bespoke design that is unique to the DAC world. Its slim aluminum enclosure accommodates many features. The size is more portable. Lightweight design, perfect for carrying in your pocket wherever life takes you, your music never stops. We also added an industry-first balanced RCA line-out. These novel RCA ports have three signal pins instead of two, yet retain the same size and form factor as regular RCA ports.

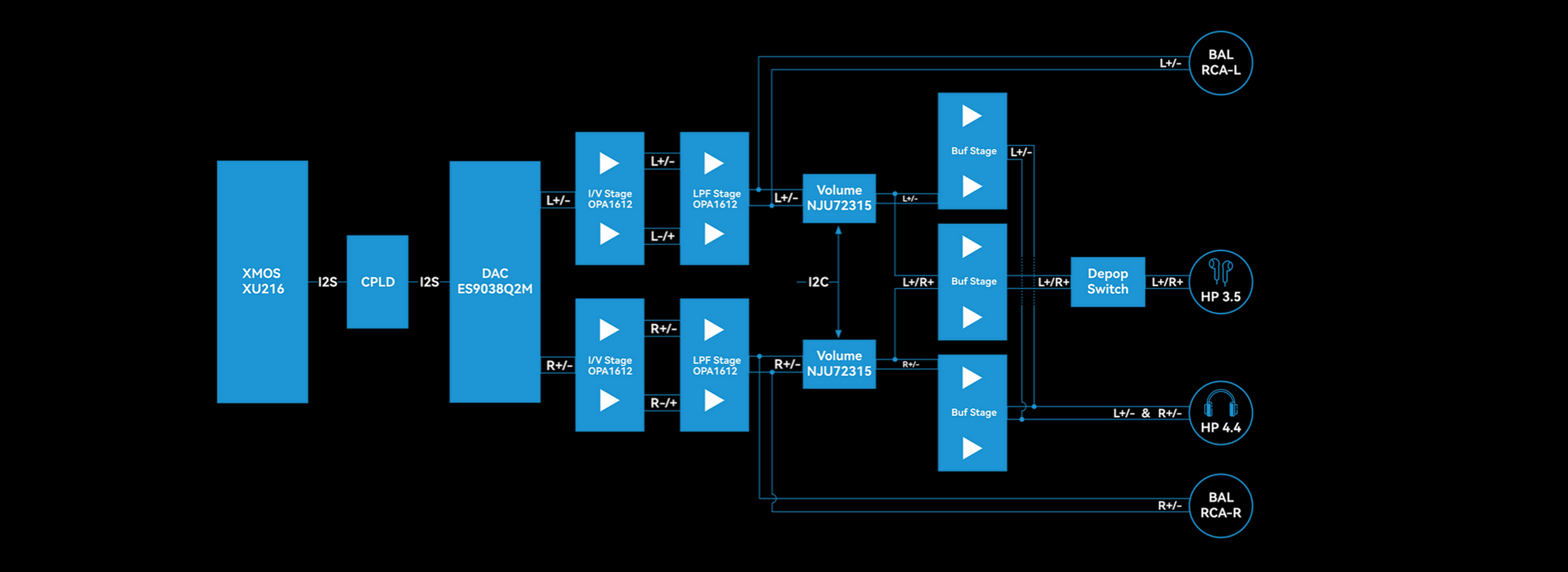

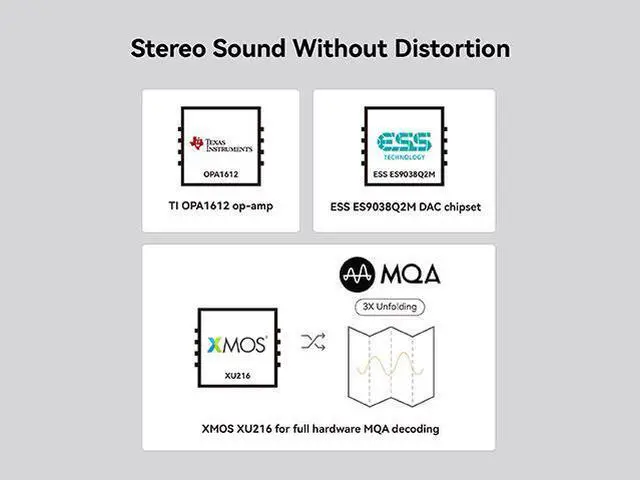

High Performance: Khadas tone2 pro up to 32bit 768KHz sample rate, Coaxial Input192KHz 24bit, bit-perfect DSD512, and -118dB THD+N, 3 Stage amplification pathway(line-out).
