Amplifier Module 1-930MHz 2.0W Professional RF Amplifier Module

Feature:

1. Professional RF amplifier module, features 1930MHz working frequency, stable performance.

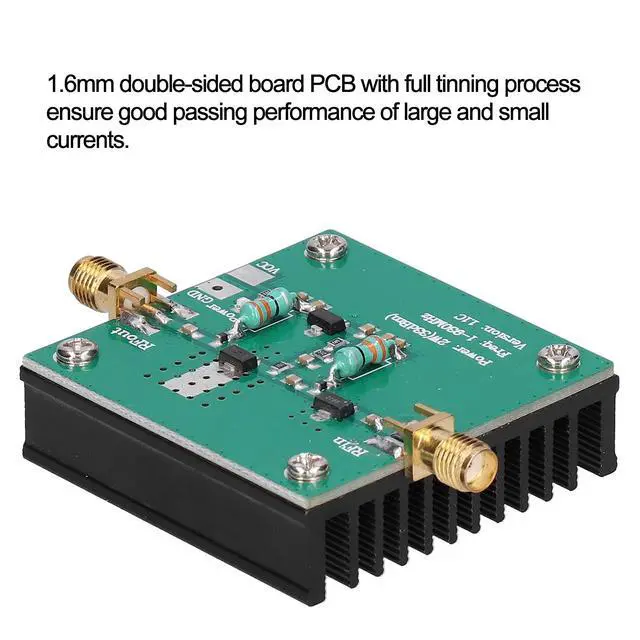

2. PCB adopts 1.6mm thick doublesided board, full tinning process, ensures good passing of large and small currents.

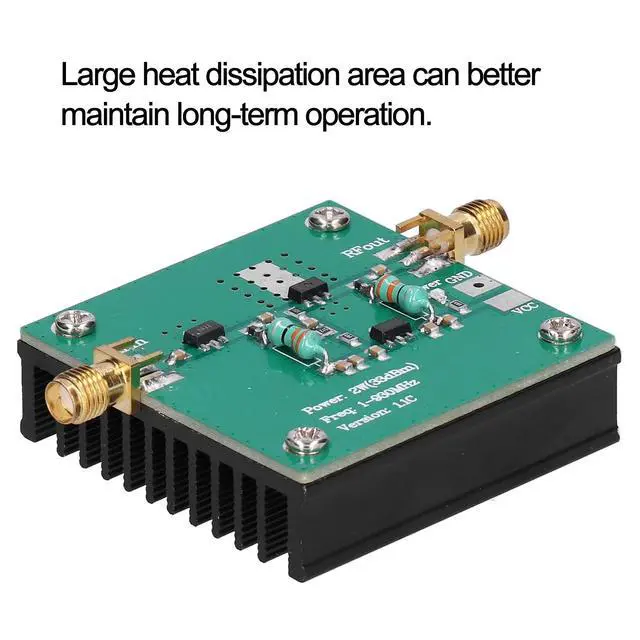

3. Large heat dissipation area can better maintain longterm operation, not easy to be damaged.

4. Onepiece without burrs, the is smooth, and the installation is convenient.

5. Manufactured according to the original production specifications, in line with strict quality standards.

Specification:

Item Type: Amplifier Module

Material: PCB

Working Frequency: 1-930MHz

Input Power: 1mW (0dBm)

Maximum Output:

2.0W (33dBm) Low Frequency End (10 MHz)

1.6W (32dBm) IF Frequency End (512 MHz)

1.0W (30dBm) End (930 MHz)

0.8W (29dBm) End (1000MHz)

Working Voltage: 12V (DC)

Working Current: 300--400mA (determined by output power)

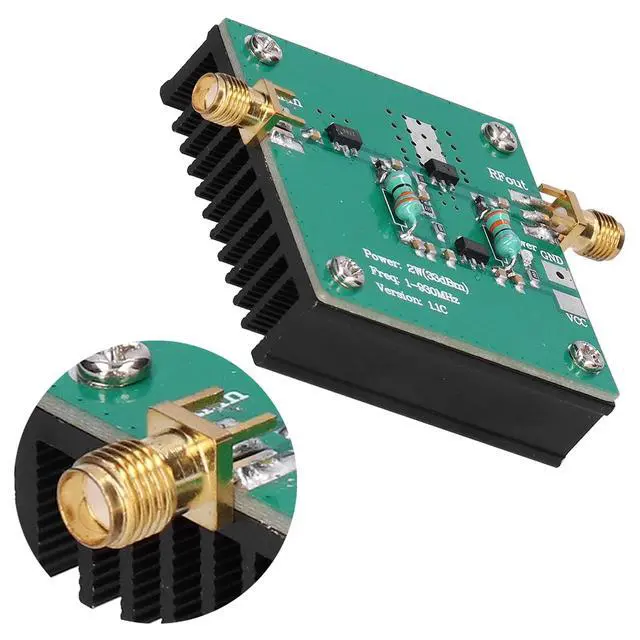

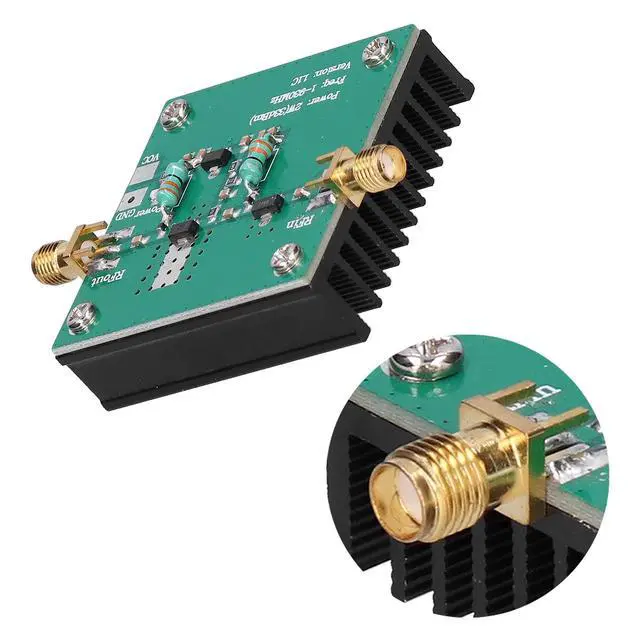

RF Connector: Standard SMA female

Package List:

1 x Amplifier Module

Note:

1. Don't use overload.

2. Do not use overvoltage.

3. Do not use over current.
