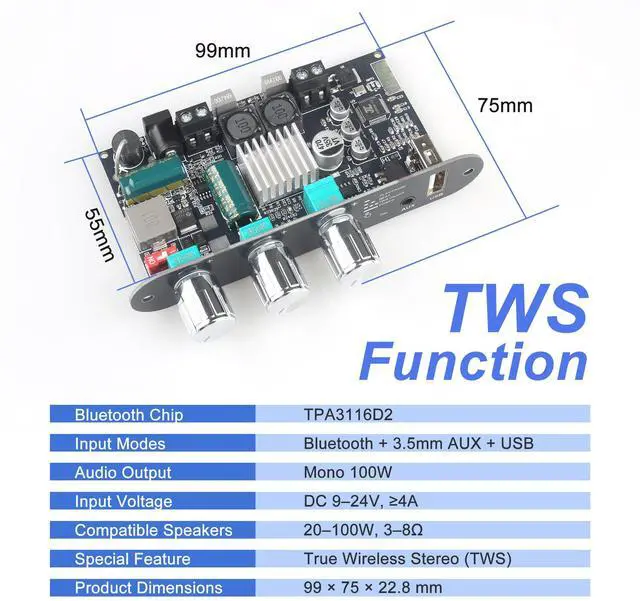

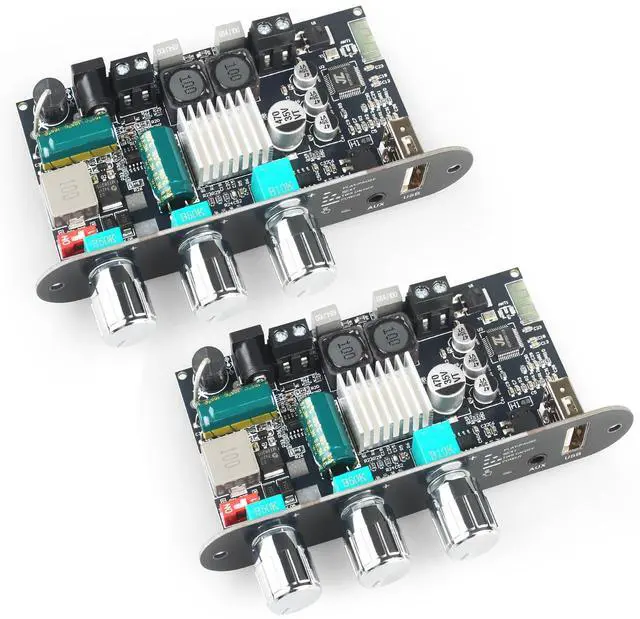

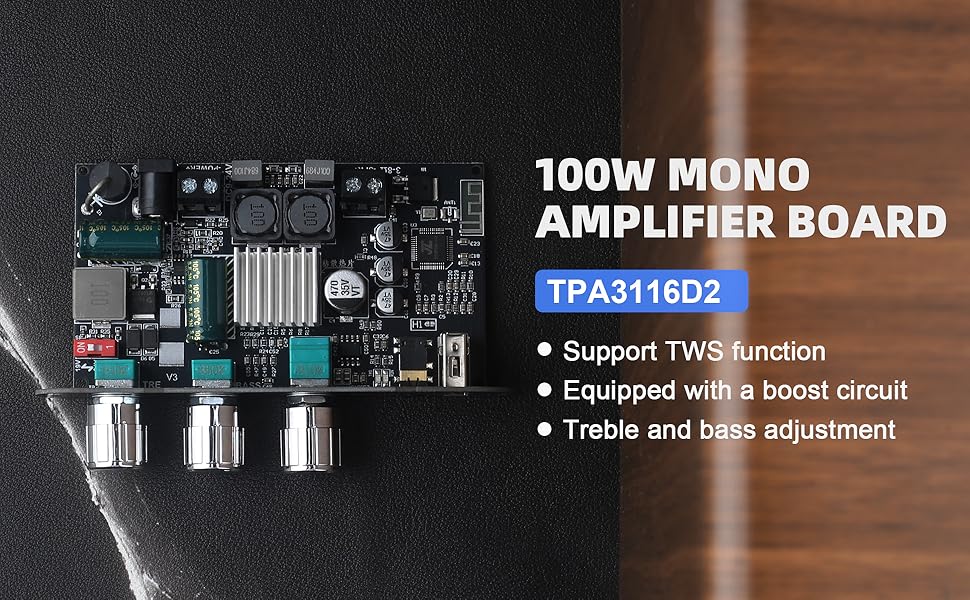

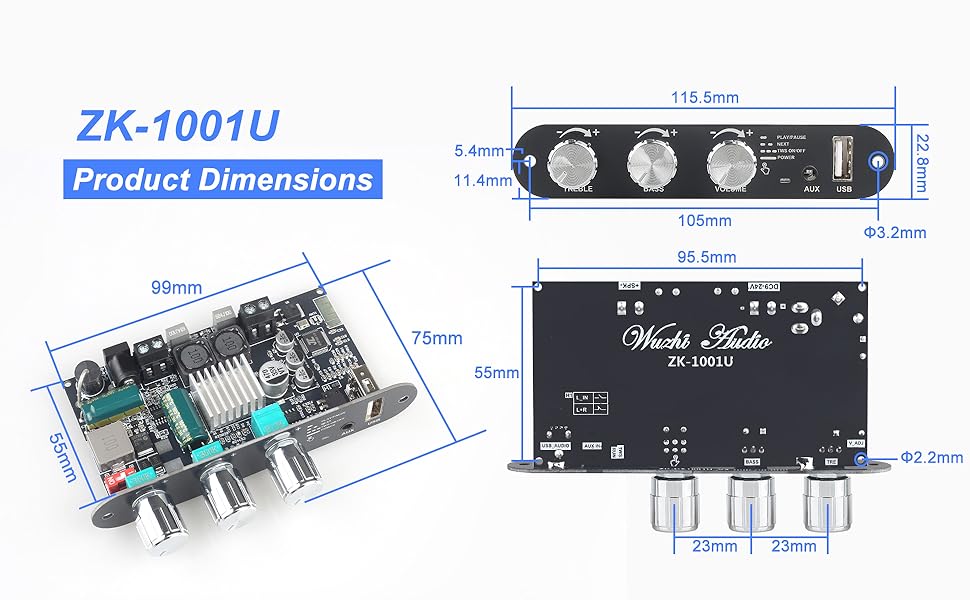

100W Mono Power Amplifier Board
ZK-1001U is a 100W mono Bluetooth amplifier board using TPA3116D2 chip. This amplifier board supports TWS (True Wireless Stereo) function, allowing wireless stereo pairing between two modules. In addition, ZK-1001U has high and low frequency adjustment functions, allowing users to fine tune the sound according to their preferences, making it a good choice for DIY audio systems

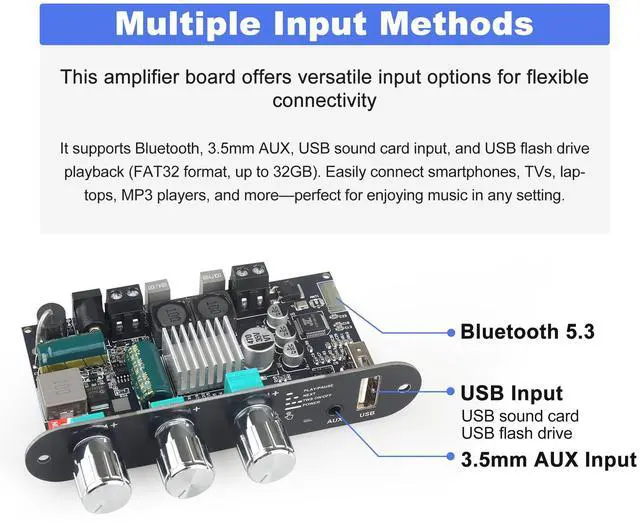

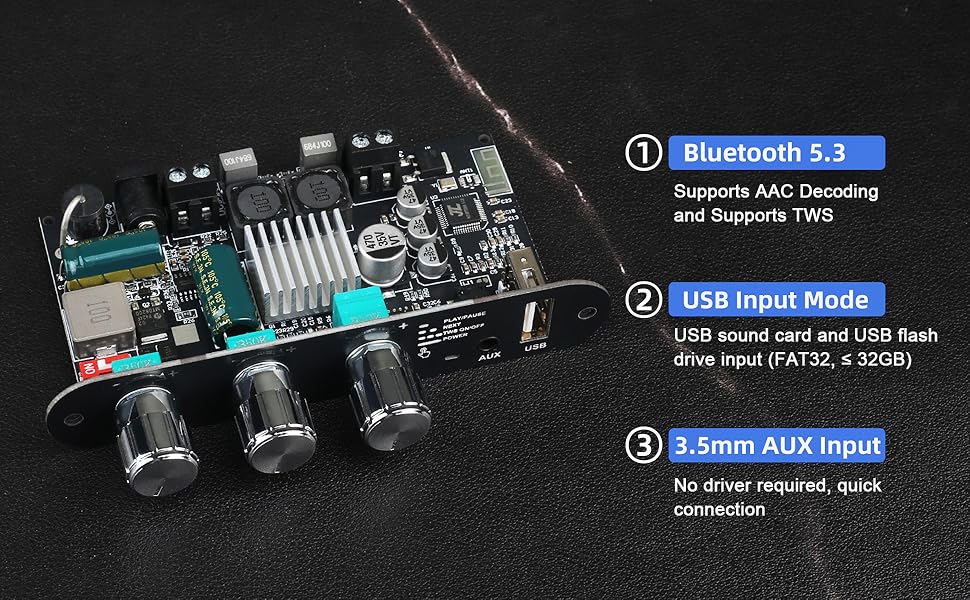

Multiple Input Methods
ZK-1001U supports multiple input methods including Bluetooth, USB sound card, USB flash drive (FAT32 format, = 32GB), and 3.5mm AUX, adapting to different device usage scenarios and making your use more convenient

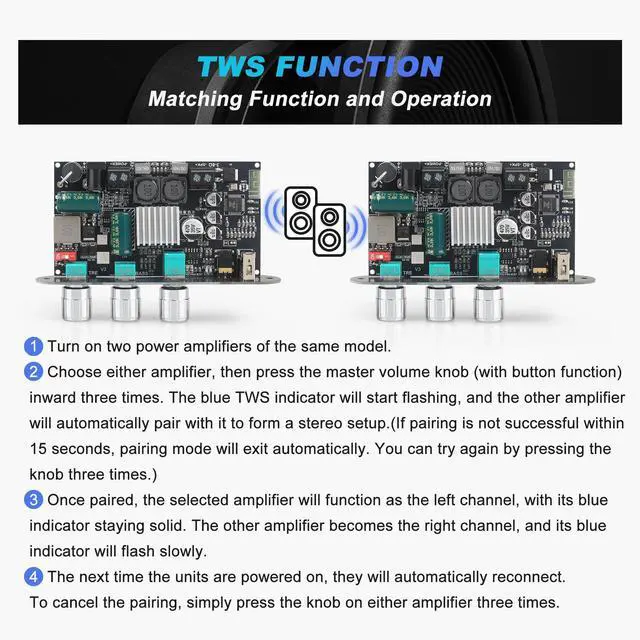

TWS Function - Achieving True Wireless Connection
1.Turn on two power amplifiers of the same model.
2.Choose either amplifier, then press the master volume knob (with button function) inward three times. The blue TWS indicator will start flashing, and the other amplifier will automatically pair with it to form a stereo setup.(If pairing is not successful within 15 seconds, pairing mode will exit automatically. You can try again by pressing the knob three times.)
3.Once paired, the selected amplifier will function as the left channel, with its blue indicator staying solid. The other amplifier becomes the right channel, and its blue indicator will flash slowly.
4.The next time the units are powered on, they will automatically reconnect. To cancel the pairing, simply press the knob on either amplifier three times.

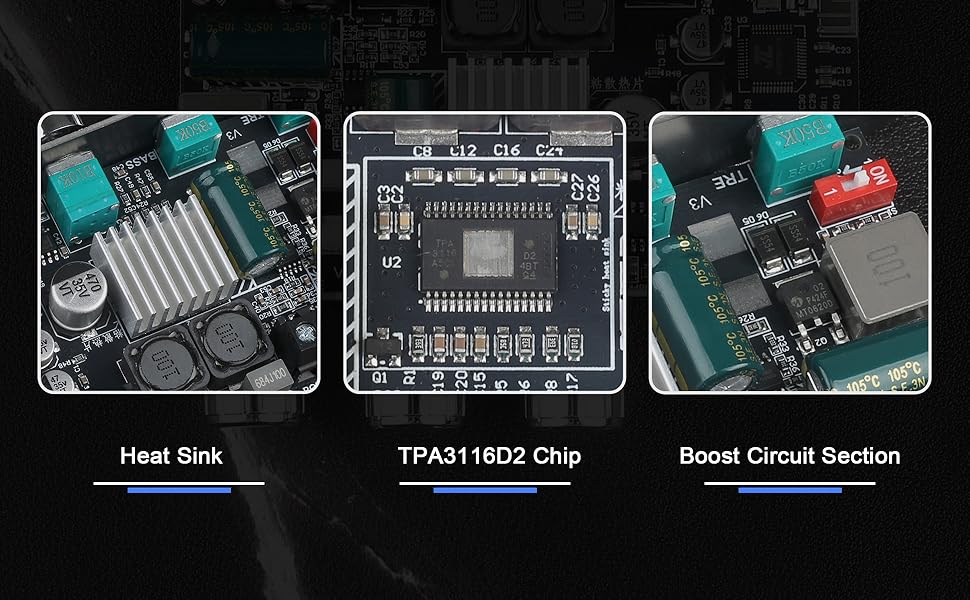

Equipped with a heatsink
Effectively lowers the operating temperature of the amplifier chip, ensuring stable performance of the amplifier board.

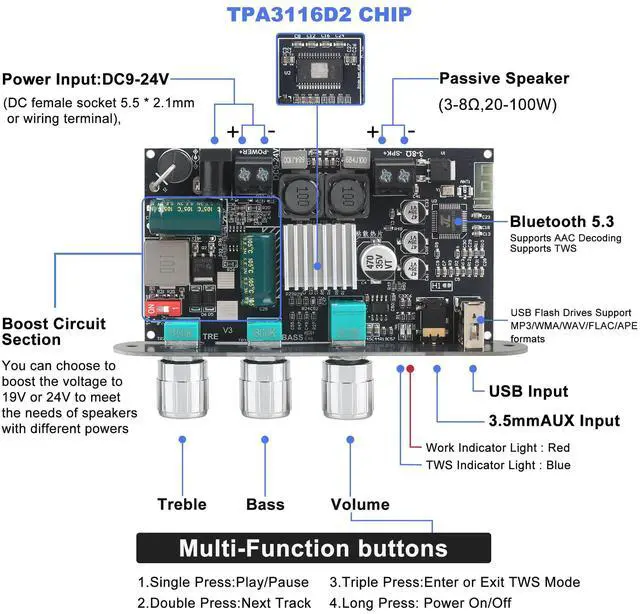

TPA3116 D2 Is a Class D Power Amplifier IC
Launched by TI, with very high index parameters. The highest modulation frequency can reach 1.2MHZ, and the high-power output distortion is less than 0.1%
Boost circuit
Can be boosted to 19V or 24V, meeting the power requirements of different speakers.
