$1,959.99
Ships from China.
Meet Your Seller

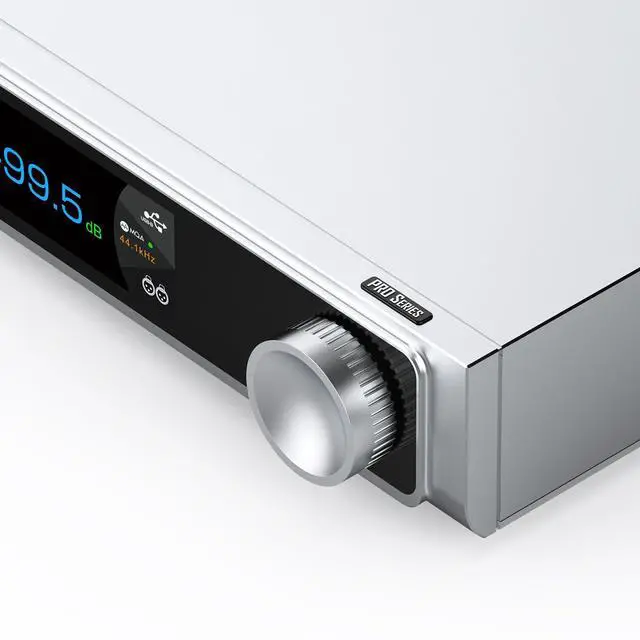

S.M.S.L RAW PRO DAC1 DAC Digital to Analog Convertor ES9039MSPRO XU316 MQA CD PCM 32bit 768kHz DSD512 LDAC with Remote Control
- ES9039MSPROThe Newly American ESS DAC Chip,Flagship ES9039MSPRO.USB, Optical, and Coaxial support MQA Decoding,and support MQA-CD.; XMOS XU-316A true 32-bit UsB scheme supports DOP and native DSD PCM supports up to 768kHz and DSD up to DSD512.; Low Phase Noise Crystal Oscillator and Clock Processing CircuitLow phase noise crystal oscillator and optimized clock processing circuit are used to achieve low clock jitter.; Compatible with Various Input FormatsAll interfaces except Bluetooth support DSD transmission.Coaxial, optical fiber and AES/EBU are compatible with DOP64 format.; Low Noise Power Supply ProcessingSpecially designed power supply system and multiple low-noise regulated power supplies provide low-noise power supply for analog circuits.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification Input: USB/Optisch/Koaial/Bluetooth/FS/AES/EBU
Output: RCA/XLR
Output Amplitude: XLR/ 5.2V rmsRCA/ 2.5V rms
Output impedance: XLR/100RCA/100
THD+N: XLR/ 0.00005 %(-125dB)(UN-WTD)RCA/ 0.00007 %(-123dB)(UN-WTD)
Dynamic range: XLR/132d8RCA/127dB
SNR: XLR/132dBRCA/127dB
USB transmission: USB 2.0 (Asynchronization)
USB compatibility: Windows7/8/ 8.1 /10 /11 (Needs Driver) Mac OSX 10.6 above, Linux (Driverless)
MQA Decoder: USB/Optical/Coaxial/AES/EBU
MQA-CD Decoder: Optical/Coaxial/AES/EBU Sampling rate
& Bit Width: USB /
I2S: PCM 44.1 ~768kHz (32bit) DSD 2.8224 ~ 22.5792MH z (1bit)
Optical/Coaxial/AES/EBU: PCM 44.1 ~192kHz (24bit) DoP DoP256 (USB), DoP64(Optical/Coaxial) Bluetooth specifcation 5.1 (support SBC, AAC, aptx, aptX HD, LDAG) Power Consumption<20W Standby power< 0.5W
Size: 254X203X48mm (WxHxD) Weight 1.9 kg/ 4.19 lbs
Output: RCA/XLR
Output Amplitude: XLR/ 5.2V rmsRCA/ 2.5V rms
Output impedance: XLR/100RCA/100
THD+N: XLR/ 0.00005 %(-125dB)(UN-WTD)RCA/ 0.00007 %(-123dB)(UN-WTD)
Dynamic range: XLR/132d8RCA/127dB
SNR: XLR/132dBRCA/127dB
USB transmission: USB 2.0 (Asynchronization)
USB compatibility: Windows7/8/ 8.1 /10 /11 (Needs Driver) Mac OSX 10.6 above, Linux (Driverless)
MQA Decoder: USB/Optical/Coaxial/AES/EBU
MQA-CD Decoder: Optical/Coaxial/AES/EBU Sampling rate
& Bit Width: USB /
I2S: PCM 44.1 ~768kHz (32bit) DSD 2.8224 ~ 22.5792MH z (1bit)
Optical/Coaxial/AES/EBU: PCM 44.1 ~192kHz (24bit) DoP DoP256 (USB), DoP64(Optical/Coaxial) Bluetooth specifcation 5.1 (support SBC, AAC, aptx, aptX HD, LDAG) Power Consumption<20W Standby power< 0.5W
Size: 254X203X48mm (WxHxD) Weight 1.9 kg/ 4.19 lbs
