Gustard R30 Fully Discrete R2R Network Streaming DAC DSD PCM768K IIS FPGA NOS Triple Digital Filter Modes Controller Support (Black)
- Self-designed discrete R-2R moduleR-2R Ladder Network DAC converts digital sianals into analog sianals throuah resistor network switching.; True-1 Bit DecodingTrue-1 Bit DSD D/A Converter with native support for DSD1024 (via l2S interface).delivering an oversampling ratio 16 times that of SAcD-standard DsD64 and1024 times the data density of CD format. In DIRECT DSD mode, DSD signals are directly processed by the 1-bit switching array decoding circuit,completely bypassing PCM conversion.; Digital FilterThis technology effectivelyr eliminates in-band aliasing distortion inherent in conventional digital-to-analog conversion processes, significantly enhancing audio resolution and dynamic range without compromising signal integrity, The result is purer, more natural sound reproduction.; GCLK-02 Clock ModuleThe GCLK-02 clock module incorporates advanced PLL technology, achieving 1Hz-level locking precision to deliver ultra-high-precision clock signal processing capabilities.; FPGA Programmable Logic chipA digital integrated circuit capable of constructing self-defined logic functions. Exclusive technologies including clock management, 2nd PLL digital shaping, DOP demodulation, and PCM/DSD depop switch lay a solid foundation for exceptional sound quality.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

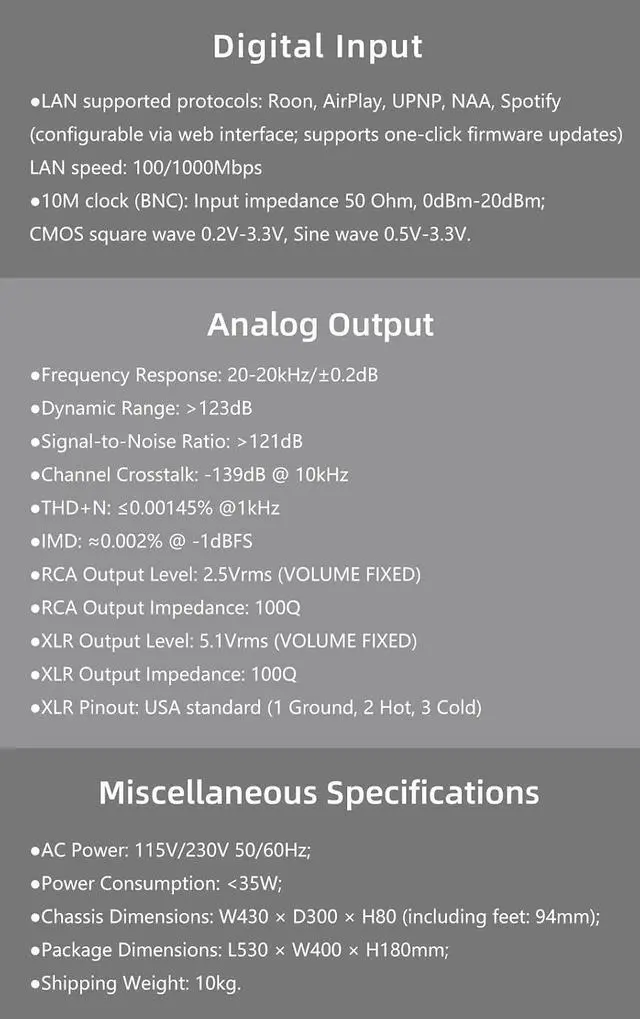

Digital Input
LAN supported protocols: Roon, AirPlay, UPNP, NAA, Spotify(configurable via web interface; supports one-click firmware updates)
LAN speed: 100/1000Mbps
10M clock (BNC): Input impedance 50 Ohm, 0dBm-20dBm; CMOS square wave 0.2V - 3.3V, Sine wave 0.5V - 3.3V.
Analog Output Frequency Response: 20-20kHz/+ 0.2 dB
Dynamic Range: >123dB
Signal-to-Noise Ratio: >121dB
Channel Crosstalk: -139dB @ 10kHz
THD+N: 0.00145 % @1kHz
IMD: 0.002 % @ -1dBFS RCA
Output Level: 2.5V rms (VOLUME FIXED) RCA
Output Impedance: 100Q XLR
Output Level: 5.1V rms (VOLUME FIXED) XLR
Output lmpedance: 100Q
XLR Pinout: USA standard (1 Ground, 2 Hot, 3 Cold) Miscellaneous
Power Consumption: <35W;
Chassis Dimensions: W430 x D300 x
H80 (including feet: 94mm)
Package Dimensions: L530 x W400 x H180mm;
Shipping Weight: 10kg.
LAN supported protocols: Roon, AirPlay, UPNP, NAA, Spotify(configurable via web interface; supports one-click firmware updates)
LAN speed: 100/1000Mbps
10M clock (BNC): Input impedance 50 Ohm, 0dBm-20dBm; CMOS square wave 0.2V - 3.3V, Sine wave 0.5V - 3.3V.
Analog Output Frequency Response: 20-20kHz/+ 0.2 dB
Dynamic Range: >123dB
Signal-to-Noise Ratio: >121dB
Channel Crosstalk: -139dB @ 10kHz
THD+N: 0.00145 % @1kHz
IMD: 0.002 % @ -1dBFS RCA
Output Level: 2.5V rms (VOLUME FIXED) RCA
Output Impedance: 100Q XLR
Output Level: 5.1V rms (VOLUME FIXED) XLR
Output lmpedance: 100Q
XLR Pinout: USA standard (1 Ground, 2 Hot, 3 Cold) Miscellaneous
Specifications
AC Power: 115V/230V 50/60Hz;Power Consumption: <35W;
Chassis Dimensions: W430 x D300 x
H80 (including feet: 94mm)
Package Dimensions: L530 x W400 x H180mm;
Shipping Weight: 10kg.
