$4,619.99
Ships from China.
Meet Your Seller

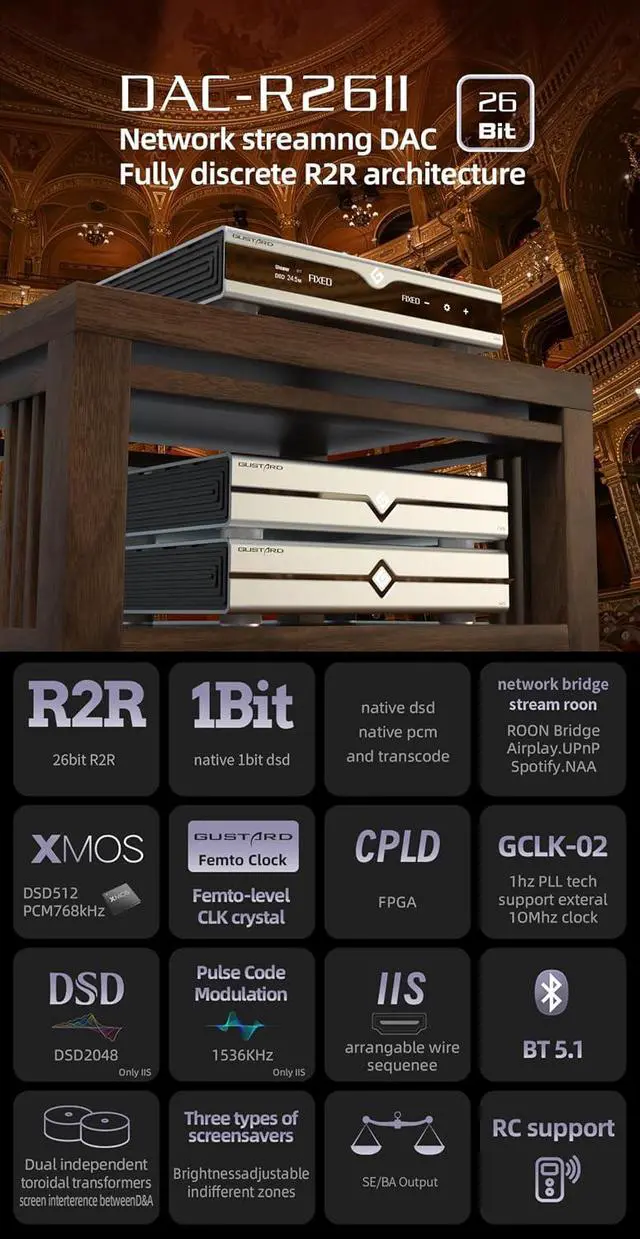

Gustard R26 II Decoder 26 Bit Network Streamng DAC Fully Discrete R2R BT5.1 DSD512 PCM768kHz with Remote Control (Silver)
- Proprietary Discrete R-2R Architecture design by GustardAt its core lies a fully discre6 R-2R Resretor Ladder network. Unlike the ubiquitous Delta-Sigma solutions that relyon high-frequercy modulation and nojse-shaping, ourR-2Rtoplogyperformsadirectinstantconversionfromdigitalsignalsto analag voltage. This "purist"approach bypasses the digital glare often associated with modern DAC IC delivering a sound signature that is inherentiy organic,fluid,and distinctly analog.; Native1-Bit DSD all the way At the kernel of the DAc lies a True 1-Bit DsD D/A Converter.This powerhouse natively supports up to incredible DSD2048 via 12s interface offering a staggering 32x the resolution of standard SAcD (DSD64) and bffering.; Panel configuration smooth touch control simple and intuitive intertace; GCLK-02 clock module The GCLK-02 clock module employs advanced PLL technology, achieving a locking accuracy within 1Hz and providing ultra-high precision. This PLL technology adjusts the output frequency through a precise feedback mechanism ensuring high stability and accuracy in the frequency and phase of the clock signal.; XMOS The USB interface uses the XMOs xU216 dedicated chip, supporting PCM768K and DSD512.; Bluetooth 5.1 Supports LDAC/AAC/SBC/aptx Qualcomm QCc5125
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
R26 II SPEC: Digital Input COAX/AES/OPT input format supp: PCM 16-24bit/ 44.1 -192kHz; DSD DOP64 USB/Streamer input format supp: PCM 16-32bit/ 44.1 -768kHz; DSD DOP64-DOP256;
NATIVE DSD: DSD64-DSD512
IIS input format supp: PCM 16-32bit/ 44.1 -1536kHz;
NATIVE DSD: DSD64-DSD2048
(DSD2048: @ DSDdirect mode)
BT 5.1 input format supp: PCM LDACAACSBCAPTXAPTX LLAPTX HD etc... LDAC HiRes audio support 96K 10M input interface (BNC): input impedence 50 Ohm, 0dBm-20dBm, CMO
Ssquare wave 0.2V - 3.3V, sine wave 0.5 - 3.3 v *USB os supp: WIN7/WIN8/WIN10/WIN11 32-64bit; Mac 0SX; i0SLinux
Analog Output Frequency Response: 20-20kHz /+- 0.2 dB OS model ·Dynamic
Range: >117dB
Signal-to-Noise Ratio: >122dB ·
Channel Crosstalk: <-134dB
@ 1kHz ·THD+N: <=
0.003 % @1kHz ·IMD: ~ 0.008 % @ 0dbfs RCA
Output Level: 2.5V rms (VOLUME FIXED) RCA
Output Impedance: 100 · XLR
Output Level: 5.0V rms (VOLUME FIXED) · XLR
Output Impedance: 100 Miscellaneous
Power Consumption: <20W;.
Chassis Dimensions: 330*260*65 (No pins included 10mm); ·
Weight: 5.5KG; ·
Package Dimensions: 420*360*175mm; ·
Shipping Weight: 7.3KG
NATIVE DSD: DSD64-DSD512
IIS input format supp: PCM 16-32bit/ 44.1 -1536kHz;
NATIVE DSD: DSD64-DSD2048
(DSD2048: @ DSDdirect mode)
BT 5.1 input format supp: PCM LDACAACSBCAPTXAPTX LLAPTX HD etc... LDAC HiRes audio support 96K 10M input interface (BNC): input impedence 50 Ohm, 0dBm-20dBm, CMO
Ssquare wave 0.2V - 3.3V, sine wave 0.5 - 3.3 v *USB os supp: WIN7/WIN8/WIN10/WIN11 32-64bit; Mac 0SX; i0SLinux
Analog Output Frequency Response: 20-20kHz /+- 0.2 dB OS model ·Dynamic
Range: >117dB
Signal-to-Noise Ratio: >122dB ·
Channel Crosstalk: <-134dB
@ 1kHz ·THD+N: <=
0.003 % @1kHz ·IMD: ~ 0.008 % @ 0dbfs RCA
Output Level: 2.5V rms (VOLUME FIXED) RCA
Output Impedance: 100 · XLR
Output Level: 5.0V rms (VOLUME FIXED) · XLR
Output Impedance: 100 Miscellaneous
Specifications
· AC Power: AC115V/230V 50/60Hz; 115Vver, 230Vver (Manual switching).Power Consumption: <20W;.
Chassis Dimensions: 330*260*65 (No pins included 10mm); ·
Weight: 5.5KG; ·
Package Dimensions: 420*360*175mm; ·
Shipping Weight: 7.3KG
