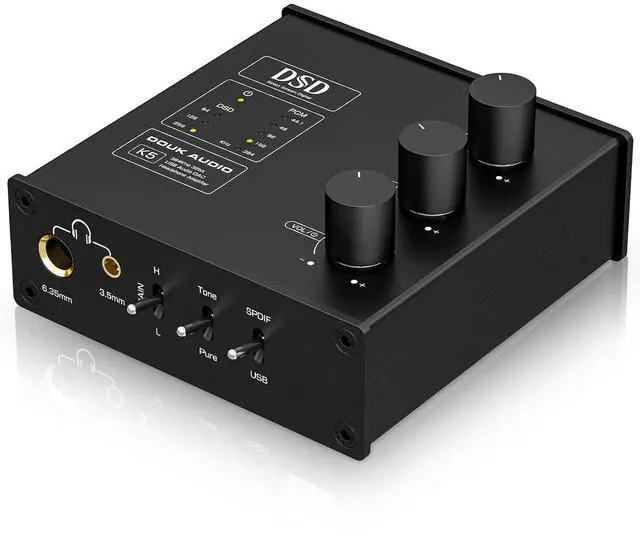

K5 PC DAC Headphone Amplifier Digital to Analog Converter with USB & Optical Input DSD256 for Amplifiers, Speakers, Mac, Computer (K5)

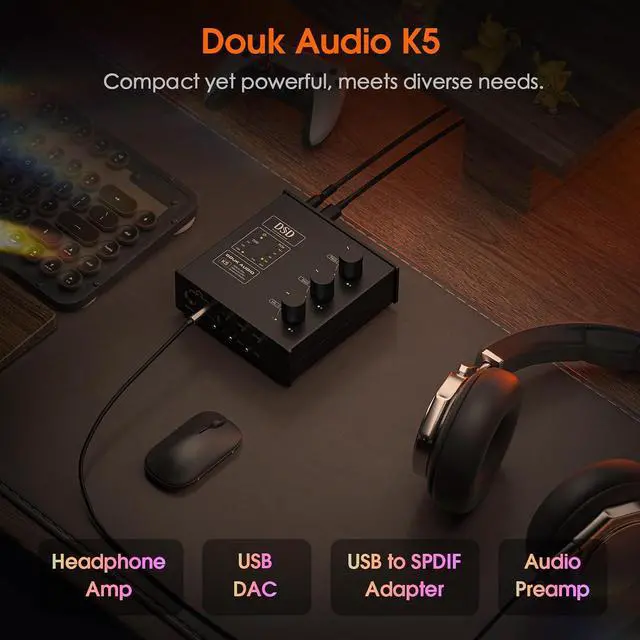

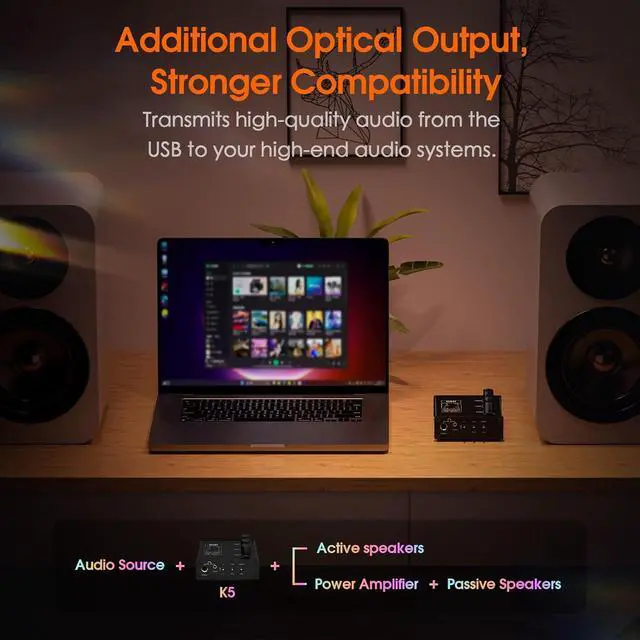

- Douk Audio K5 USB DAC & Headphone Amp: Featuring USB and SPDIF optical inputs, as well as optical, RCA and 6.35/3.5mm jack outputs, the K5 serves as a high-performance headphone amplifier, a USB DAC, a preamp, but also a USB to optical converter to transmit the high-quality audio from the computer to those audio devices only with SPDIF digital input such as CD players, amplifiers and active speakers etc.
- High-end Chipset and Top-level Parameters: The K5 adopts ESS9038Q2M (DAC), SA9312 (DSP), OPA1678 (LPF) and SGM8262 (amp) op-amps, and supports PCM 32bit/384kHz high-resolution decoding and DSD256 playback. Its excellent circuit design ensures superior performance with a SNR over 121dB, a low noise floor of only 3V and an incredibly low THD of 0.0007%, K5 delivers an exceptional listening pleasure with its ultra-pure sound.

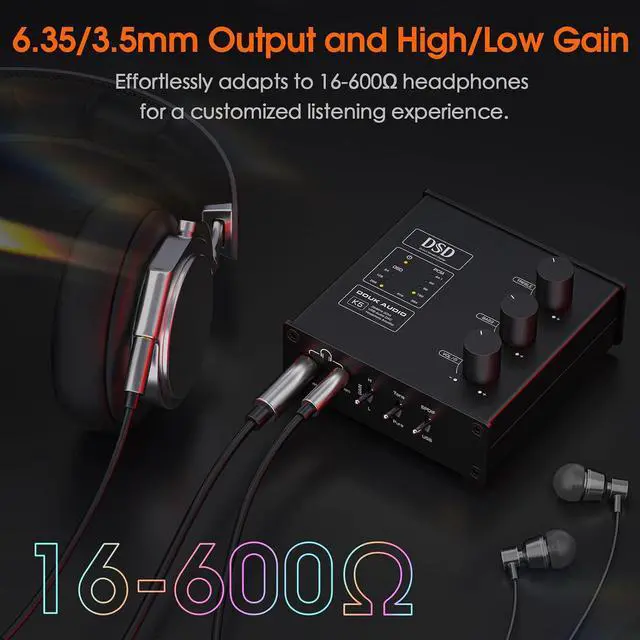

- Strong Power and High/Low Gain Modes: K5 supports dual 6.35/3.5mm headphone outputs and provides robust power of 560mW/470mW@32 per channel to effortlessly unleash the best performance of your headphones. Specially designed with high and low gain modes, flexibly adapt to all headphones of a wide impedance range from 16 to 600 and tailor your own listening experience.

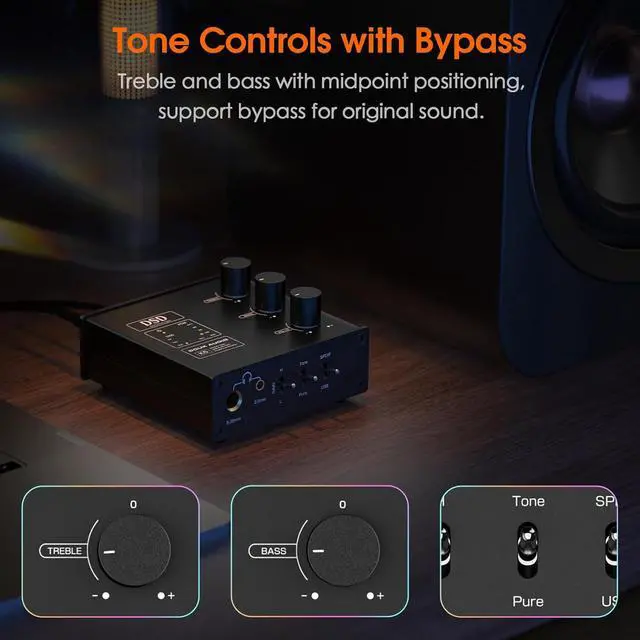

- Tone Control with Bypass and Gain Switch: Treble and bass with midpoint positioning for perfect balance, the K5 also features a bypass function to remove all tone controls, allowing you to enjoy the purest sound by toggling the switch to PURE. The USB Type-C input can power the K5 direc
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Brand: Douk
Audio Model: K5

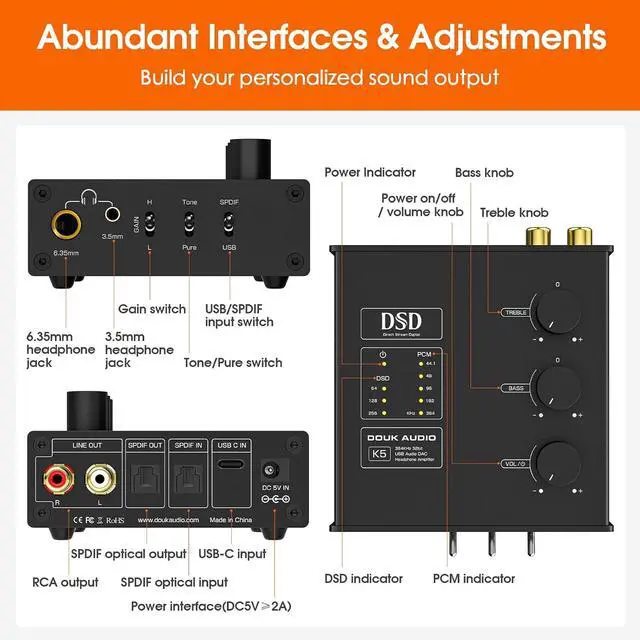

Audio input: USB/Fiber Optical
Audio output: Optical/Stereo RCA/ 6.35 mm & 3.5 mm headphone jack
Chipsets: ESS9038Q2M+SA9312 Format and sampling rate supported:
USB: PCM 44.1 -384K/16-32bit, DSD64-256
SPDIF: PCM 44.1 -192K/16-24bit, DSD64 (DOP)
Frequency response: 20-40kHz(± 0.3 dB)
Treble adjustment: 3K-20KHz / ±10dB
Bass adjustment: 20-250Hz / ±10dB
Pure mode: support (Tone control not valid)
Matched headphone impedance: 16-600
RCA Output Output level: 2Vrms
THD+N: <0.0007% SNR: > 120dB
Channel Separation: <-80dB Noise floor: <3V (1KHz@300ohm) Headphone output GAIN Mode: High (0dB) / Low (-6dB) Output power in High Gain Mode (THD+N<1%): 560mW @32 (6.35mm jack output) 370mW @32 (3.5mm jack output) Peak voltage: 4.25Vrms@32ohm (6.35mm Jack output) 3.45Vrms@32ohm (3.5mm jack output) THD+N: <0.0008% @32 SNR: > 121dB @32
Channel Separation: <-65dB @32
Noise floor: <3V
Working voltage: DC 5V (2A)
Power interface: USB (type-c) / DC 5.5 * 2.1 mm
Dimensions (W*D*H): 95*92*50mm / 3.74 * 3.62 * 1.97 in
Package dimensions(W'D*H): 225*145*80mm/ 8.86 * 5.71 * 3.15 in
Net weight: 228g/ 0.50 lb
Package weight: 500g/ 1.10 lb
Packing List: 1*K5 1*Power Adapter 1*USB Cable 1*Optical Cable 1*User Manual
Audio Model: K5
Audio input: USB/Fiber Optical
Audio output: Optical/Stereo RCA/ 6.35 mm & 3.5 mm headphone jack
Chipsets: ESS9038Q2M+SA9312 Format and sampling rate supported:
USB: PCM 44.1 -384K/16-32bit, DSD64-256
SPDIF: PCM 44.1 -192K/16-24bit, DSD64 (DOP)
Frequency response: 20-40kHz(± 0.3 dB)
Treble adjustment: 3K-20KHz / ±10dB
Bass adjustment: 20-250Hz / ±10dB
Pure mode: support (Tone control not valid)
Matched headphone impedance: 16-600
RCA Output Output level: 2Vrms
THD+N: <0.0007% SNR: > 120dB
Channel Separation: <-80dB Noise floor: <3V (1KHz@300ohm) Headphone output GAIN Mode: High (0dB) / Low (-6dB) Output power in High Gain Mode (THD+N<1%): 560mW @32 (6.35mm jack output) 370mW @32 (3.5mm jack output) Peak voltage: 4.25Vrms@32ohm (6.35mm Jack output) 3.45Vrms@32ohm (3.5mm jack output) THD+N: <0.0008% @32 SNR: > 121dB @32
Channel Separation: <-65dB @32
Noise floor: <3V
Working voltage: DC 5V (2A)
Power interface: USB (type-c) / DC 5.5 * 2.1 mm
Dimensions (W*D*H): 95*92*50mm / 3.74 * 3.62 * 1.97 in
Package dimensions(W'D*H): 225*145*80mm/ 8.86 * 5.71 * 3.15 in
Net weight: 228g/ 0.50 lb
Package weight: 500g/ 1.10 lb
Packing List: 1*K5 1*Power Adapter 1*USB Cable 1*Optical Cable 1*User Manual
