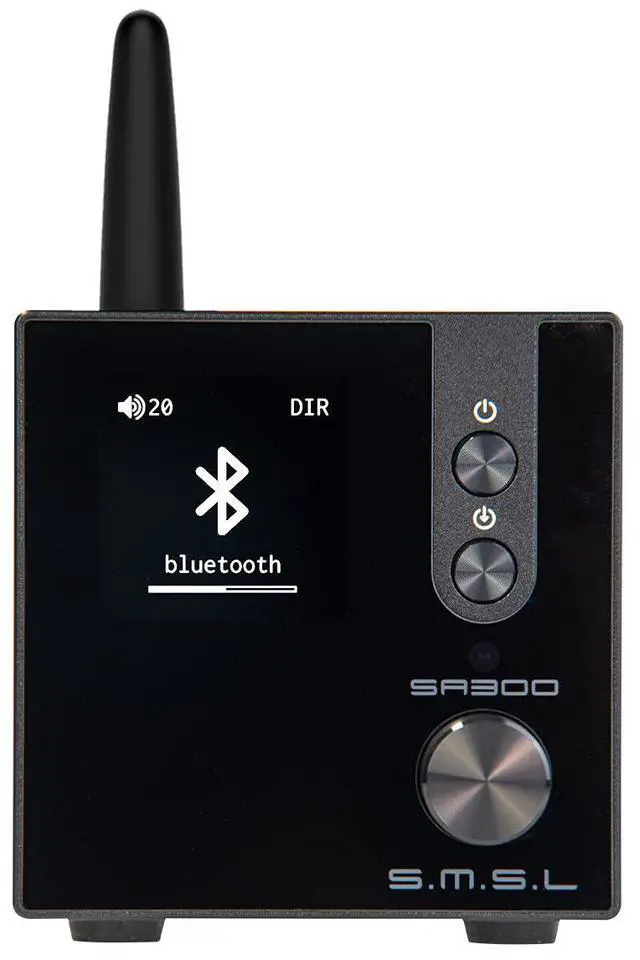

SA300 HiFi Digital Amplifier, Infineon's MA12070 Chip Class D Power Amp, RCA USB Bluetooth 5.0 APTX Input, Multiple EQ Modes with Remote Control (Black)
- SA300 is a decoding power amplifier all-in-one machine, compact and lightweight design, but very powerful. It can meet your basic daily needs. Of course, if you have the pursuit of higher sound quality and more functional needs, you can learn about our other styles of products for reference.
- 80W RMS x 2 (4 ohms, 20 Hz - 20 kHz, 0.008% THD+N), comes with 24V power supply, can drive 280 watts(8 ohm), 320 watts(4 ohm) speakers, (For passive speakers only, not the powered speakers).

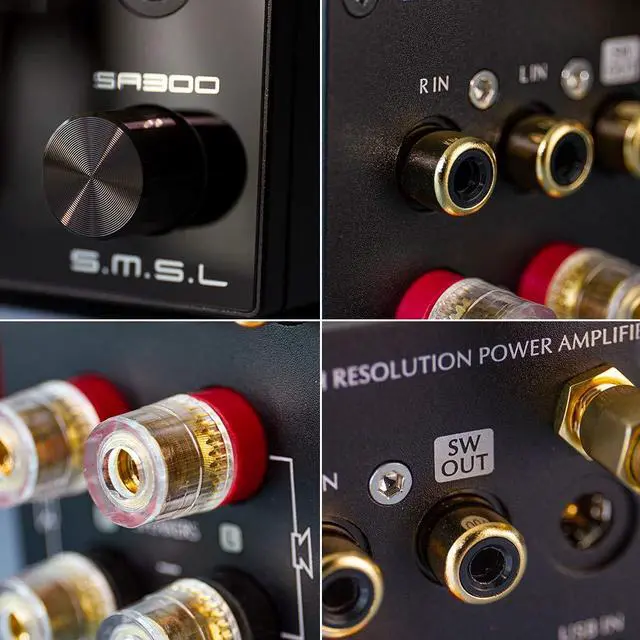

- High quality all aluminum alloy CNC precision procesing shell, anodizing technology and chamfering process, exquisite workmanship and delicate touch. Perfect knob texture, every time you use the knob, you will feel a strong sense of damping. All functions can be completed with the knob, but if you want to operate remotely, It is also possible to use our matching remote control.

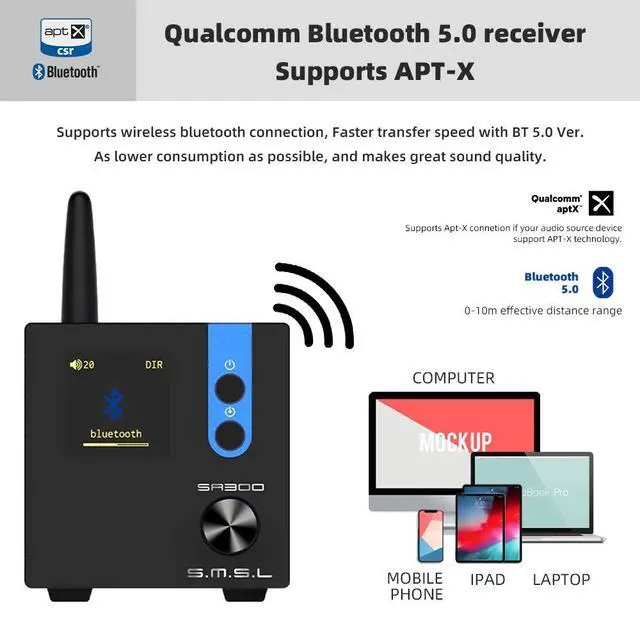

- Qualcomm Bluetooth 5.0 receiver, support APT-X, longer transmission distance. In the process of using Bluetooth input, more music details are retained, making the music more delicate and soft. You can use the built-in eight modes or treble and bass adjustment to choose the effect you like.
- We promise that if there are any questions about the product within 365 days, you can contact our customer service for inquiries at any time, and we will give you the most satisfactory answer. Tips: Please connect the power adapter to the item and then connect the 220/100V power supply.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product description MA12070
Audio Input Type: Analog
Description: Integrated 80W - 2xBTL/4xSE channel analog input multi-level class-D amplifier
Output Power: 80W
Package: QFN 64 pins
Speaker Channels: 2xBTL/4xSE

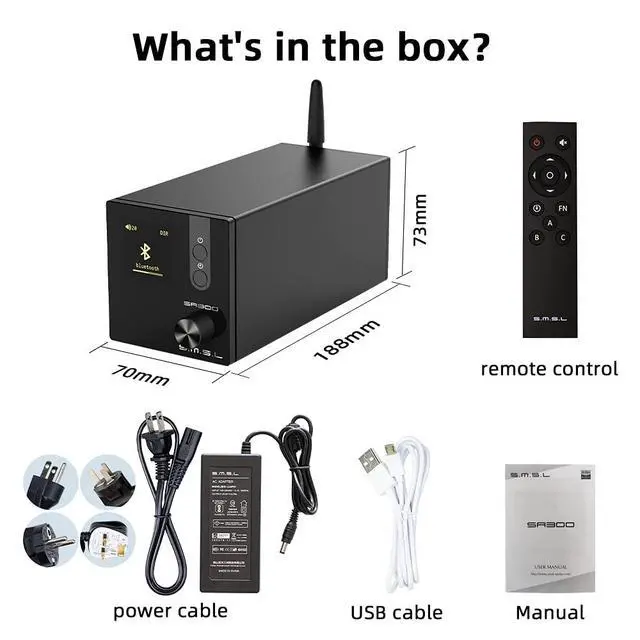

Supply Voltage: 26V German Infineon's new technology class D power amplifier chip - MA12070 Ultra power efficient, fully integrated audio amplifier IC MA12070 is a highly efficient, fully integrated, digital audio power amplifier IC based on Multi-level switching techno-logy. It supports a 4-26V supply voltage range, allowing it to be used in many different audio applications. This chip featured with excellent power consumption effeciency. Optimizing the power consumption of playing music and make it with advantage of low-power-consumption. High-quality sound output and supereme audio effeciency up to 92% Parcel Included SA300 x 1 Plug x 1 Power Adapter x 1 Remote control x 1 Bluetooth Antenna x 1 Power saving standby mode When putting the SA300 in standby, don't worry about electricity bills! The power required for the SA300 to stand by is less than 0.5 w. Low power consumption that meets the latest EU ErP2 standard! EQ adjustment function There are various tones, and you can switch between 8 different tones. Set the tone you like and enrich the sound!
EQ setup menu: 1. Direct
2. Tone 3. SDB
4. Bass
5. Super Bass
6. Rock
7. Soft
8. Clear Can be operated with the remote control! When using the remote control, point it toward the remote con-trol signal receiver on the main unit from a distance of 5m (16ft) or less. Do not place obstructions between the main unit and the remote control.
Product Specification Bluetooth: 5.0
SNR: 90dB
THD+N: 0.008 %
Inputs: USB, RCA, BT
Standby power: < 0.5W
Channel separation: 88dB
Output Power: 80Wx2 (4) / 40Wx2 (8)
Power Consumption: 35W (Normal
Volume) Weight (In shipping carton): 1.2 kg
Size: 70x73x188mm (WxHxD) A100 A300 SA300 SA400 VMV A1 VMV A2 Add to Cart Add to Cart Add to Cart Buying Options Buying Options Add to Cart Customer Reviews 4.1 out of 5 stars 237 4.4 out of 5 stars 117 4.3 out of 5 stars 1, 206 3.5 out of 5 stars 18 4.0 out of 5 stars 16 3.8 out of 5 stars 4 Price $ 96.49 $96. 49 $ 195.99 $195. 99 $ 144.99 $144. 99 no data no data $ 999.99 $999. 99 Input Interface USB/BT/RCA USB/BT/RCA USB/BT/RCA RCA/XLR/BT RCA USB/Optical/BT/Coaxial/AES/EBU/RCA Output Interface 80w*2 (4) /40w*2 (8) 200w*2 (4) /100w*2 (8) /BTL 330w*1(4-8) 80w*2 (4) /40w*2 (8) 230w*2 (4) /110w*2 (8) 15w*2 (4) /10w*2 (8) 200w*2 (4) /100w*2 (8) Amplifier Chip MA12070 MA5332M MA12070 AX5689 Class-A AX5689 Bluetooth 5.0 5.0 aptX/AAC/SBC aptX/AAC/SBC no data LDAC/aptX HD/aptX/AAC/SBC THD+N 0.005 % 0.004 % 0.008 % 0.003 % 0.008 % 0.0008 % SNR 103dB 103dB 90dB 96dB 110dB 115dB Channel Separation 88dB 85dB 88dB 94dB 105dB 108dB Power Adapter AC 100-240V AC 100-240V DC 24V 6.75A AC 100-240V AC 100-240V AC 100-240V See More
Audio Input Type: Analog
Description: Integrated 80W - 2xBTL/4xSE channel analog input multi-level class-D amplifier
Output Power: 80W
Package: QFN 64 pins
Speaker Channels: 2xBTL/4xSE
Supply Voltage: 26V German Infineon's new technology class D power amplifier chip - MA12070 Ultra power efficient, fully integrated audio amplifier IC MA12070 is a highly efficient, fully integrated, digital audio power amplifier IC based on Multi-level switching techno-logy. It supports a 4-26V supply voltage range, allowing it to be used in many different audio applications. This chip featured with excellent power consumption effeciency. Optimizing the power consumption of playing music and make it with advantage of low-power-consumption. High-quality sound output and supereme audio effeciency up to 92% Parcel Included SA300 x 1 Plug x 1 Power Adapter x 1 Remote control x 1 Bluetooth Antenna x 1 Power saving standby mode When putting the SA300 in standby, don't worry about electricity bills! The power required for the SA300 to stand by is less than 0.5 w. Low power consumption that meets the latest EU ErP2 standard! EQ adjustment function There are various tones, and you can switch between 8 different tones. Set the tone you like and enrich the sound!
EQ setup menu: 1. Direct
2. Tone 3. SDB
4. Bass
5. Super Bass
6. Rock
7. Soft
8. Clear Can be operated with the remote control! When using the remote control, point it toward the remote con-trol signal receiver on the main unit from a distance of 5m (16ft) or less. Do not place obstructions between the main unit and the remote control.
Product Specification Bluetooth: 5.0
SNR: 90dB
THD+N: 0.008 %
Inputs: USB, RCA, BT
Standby power: < 0.5W
Channel separation: 88dB
Output Power: 80Wx2 (4) / 40Wx2 (8)
Power Consumption: 35W (Normal
Volume) Weight (In shipping carton): 1.2 kg
Size: 70x73x188mm (WxHxD) A100 A300 SA300 SA400 VMV A1 VMV A2 Add to Cart Add to Cart Add to Cart Buying Options Buying Options Add to Cart Customer Reviews 4.1 out of 5 stars 237 4.4 out of 5 stars 117 4.3 out of 5 stars 1, 206 3.5 out of 5 stars 18 4.0 out of 5 stars 16 3.8 out of 5 stars 4 Price $ 96.49 $96. 49 $ 195.99 $195. 99 $ 144.99 $144. 99 no data no data $ 999.99 $999. 99 Input Interface USB/BT/RCA USB/BT/RCA USB/BT/RCA RCA/XLR/BT RCA USB/Optical/BT/Coaxial/AES/EBU/RCA Output Interface 80w*2 (4) /40w*2 (8) 200w*2 (4) /100w*2 (8) /BTL 330w*1(4-8) 80w*2 (4) /40w*2 (8) 230w*2 (4) /110w*2 (8) 15w*2 (4) /10w*2 (8) 200w*2 (4) /100w*2 (8) Amplifier Chip MA12070 MA5332M MA12070 AX5689 Class-A AX5689 Bluetooth 5.0 5.0 aptX/AAC/SBC aptX/AAC/SBC no data LDAC/aptX HD/aptX/AAC/SBC THD+N 0.005 % 0.004 % 0.008 % 0.003 % 0.008 % 0.0008 % SNR 103dB 103dB 90dB 96dB 110dB 115dB Channel Separation 88dB 85dB 88dB 94dB 105dB 108dB Power Adapter AC 100-240V AC 100-240V DC 24V 6.75A AC 100-240V AC 100-240V AC 100-240V See More
