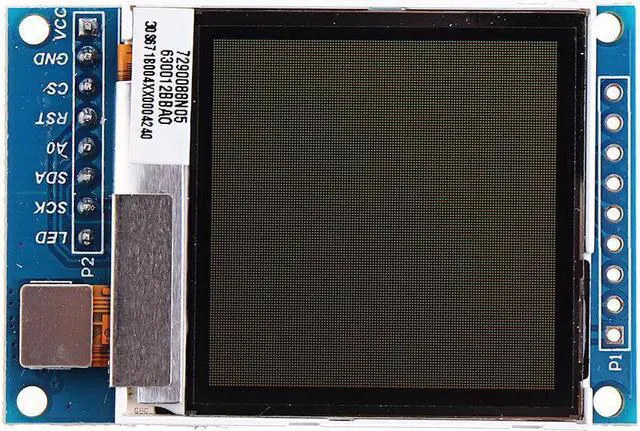

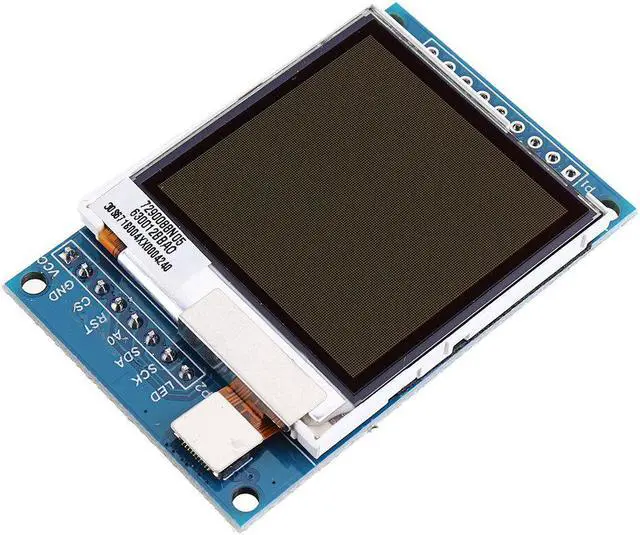

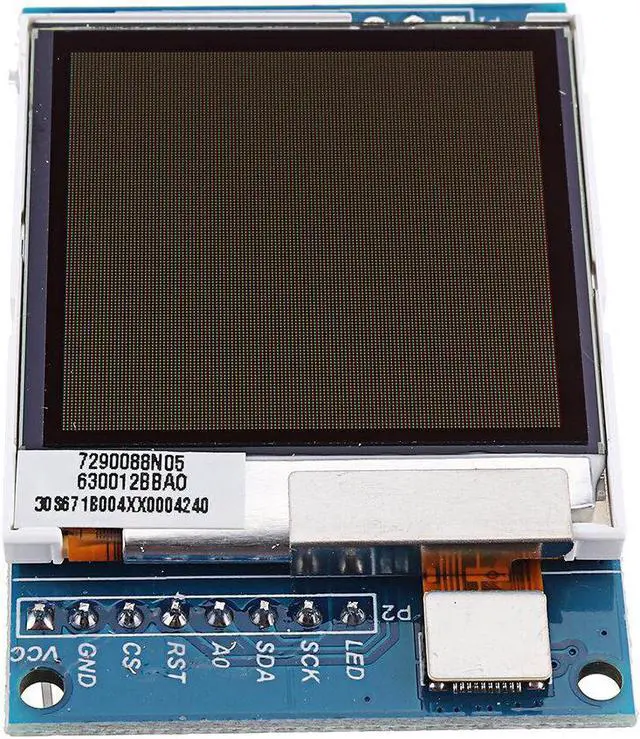

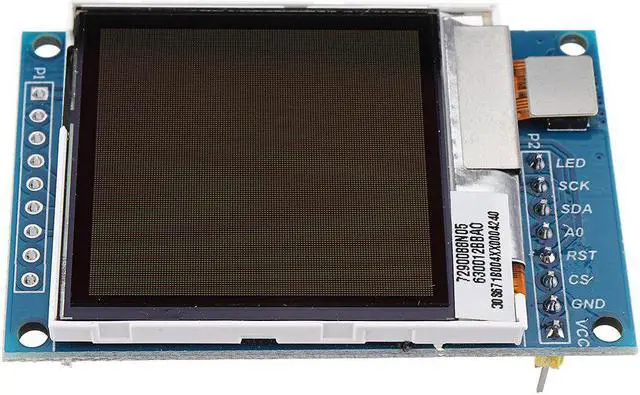

1.6 Inch Transflective TFT LCD Display Module 130X130 Sunlight Visible SPI Serial Port 3.3V 5V

Features:

• 1.6-inch color screen, support 65K color display, display rich colors

• Semi-transparent LCD, performance, clearly visible under strong light

• SPI serial bus, only a few IO can light up the display

• Onboard 3. 3V/5V power conversion chip, compatible with 3. 3V and 5V voltage levels

• Operating temperature range is industrial grade (-20-70 ° C)

• Military-grade process standards, long-term stable work

• Provide underlying driver technical support

• Support backlight control

Specificatoins:

Driver: SSD1283A

Resolution: 130*130

Working voltage: 3.3V/5V

Viewing angle: >60°

Display size: 28.86*28.86mm

Module size: 35.4*53.82*1.6mm

Module interface: 4-wire SPI

Power consumption: about 100mA when fully lit, about 10mA when fully off

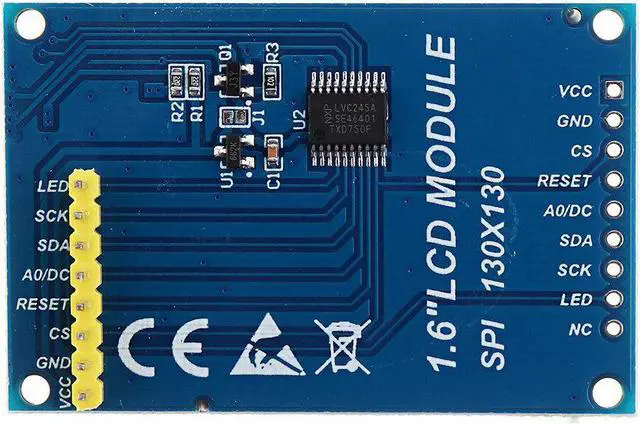

Pin:

Number

Pin

Meaning

1

GND

LCD power supply (ground)

2

VCC

LCD power supply (positive)3.3V/5V

3

CS

LCD chip select signal

4

RESET

LCD reset signal

5

A0/DC

LCD register / data selection signal

6

SDA

SPI bus data signal

7

SCK

SPI bus clock signal

8

LED

Backlight control signal (high level lighting, if you do not need control, please connect 3.3V)

Package Included:

1 x 1.6 Inch Transflective TFT LCD Display Module 130X130
