10/100/1000B-T TO 1000BASE-X

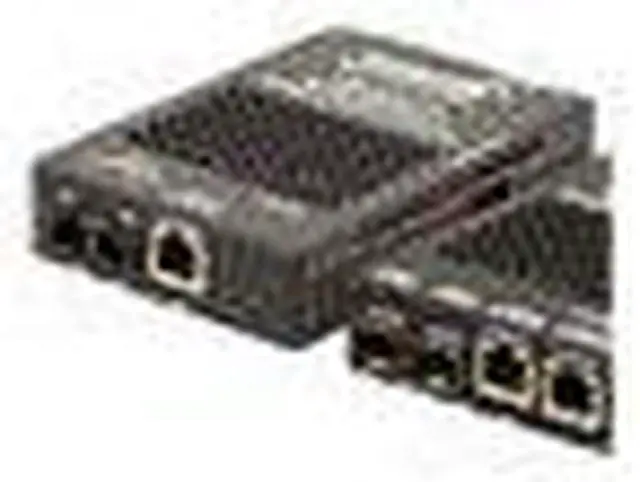

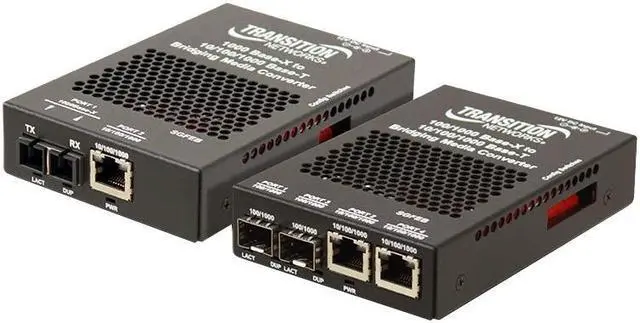

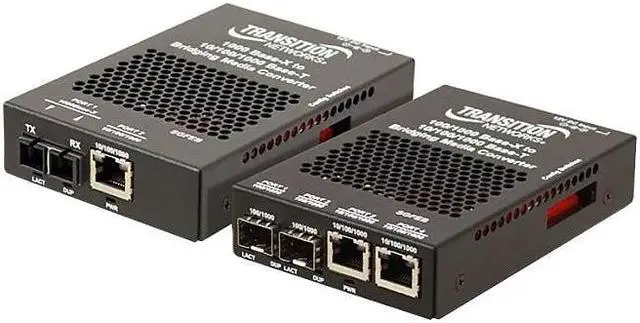

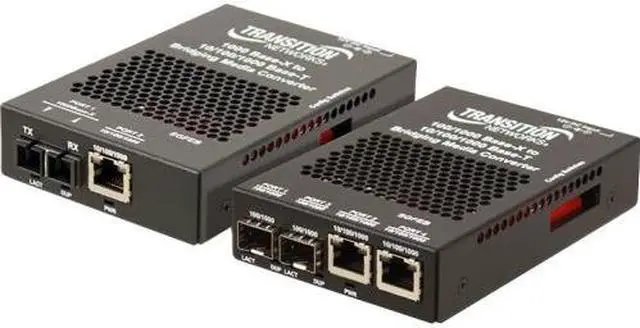

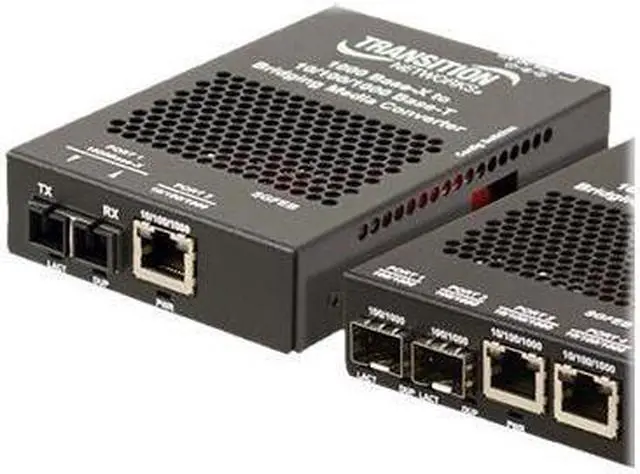

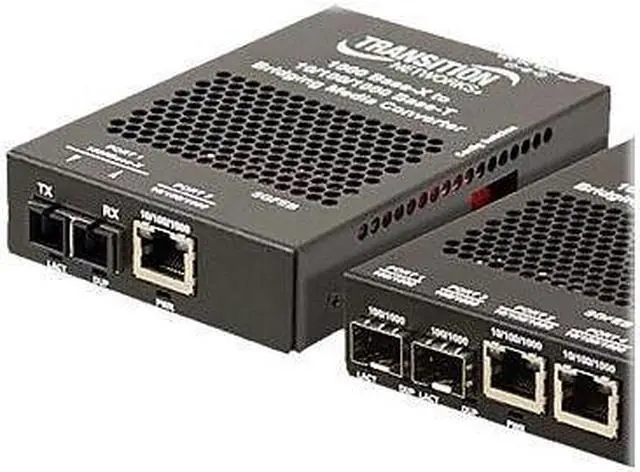

The Transition Networks SGFEB1013-130-NA Ethernet media converter offers data rates up to 10/100/1000 Mbps on copper and 1000 Mbps on fiber ports. It integrates 1000Base-SX/LX fiber into a 10/100/1000Base-T copper to extend the network distance longer. This Ethernet media converter features AutoCross and Link Pass through technology. While the twisted pair ports on converter automatically detect the correct MDI or MDI-X configuration and monitors the loss of signal in fiber and copper ports.

- Media converter is an integration and conversion solutions for half and full-duplex environments.
- Dimensions: 1"H x 3.3"W x 4.8"D.
- Comes in black color.
- Interface: One RJ-45, one female SC.
- Fiber mode: Multi-mode fiber (MMF).
- Supports data transfer rate up to 1 Gbps and features diltering addresses of 8K entries.
- Connectivity technology: Wired, Operating distance: 721.78'.
- Wavelength: 850 nm, Indicators: Link/activity, port duplex mode, port transmission speed, power.
- Supports 50/125um, 62.5/125um standard optical fiber/twisted pair media for data transmission using Gigabit Ethernet technology.
- Power: 2.2 W consumption, Form Factor: Desktop, rack-mountable, rail-mountable, wall mountable.
- Features indicators for auto-negotiation, AutoCross, built-in DIP switch, energy efficient Ethernet, far end fault and half duplex mode.
- Offers jumbo frames support and link pass-through for reliable data transfer.
- Secures data from external sources of noise and interference and improves network performance.
- Meets RoHS and WEEE standards.
- Weight: 8.8 oz.

- Sold as 1 Each.
