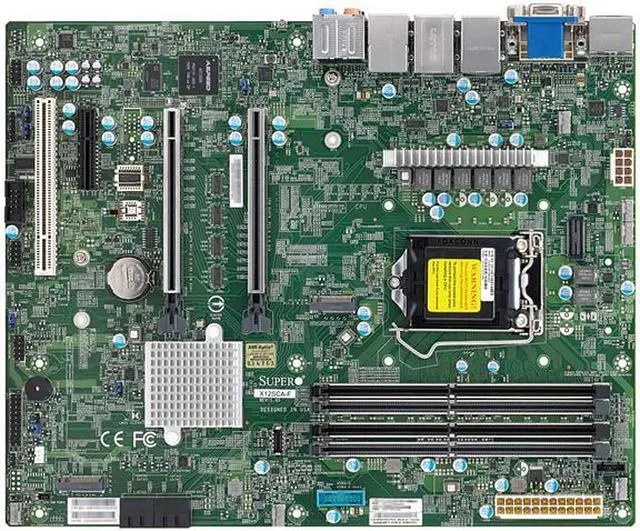

Supermicro MB MBDX12SCAFO W480 LGA1200 128GB DDR4 HDMI DP ATX

Be the first to review this product...

10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium® Processor, Intel® Xeon® W-1200 Processors
Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP
Intel® W480
Single LAN with Intel® PHY I219LM LAN controller
for AMT/vPro
Single LAN with Intel® Ethernet i225LM
128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots
1 PCIe 3.0 x4,
2 PCIe 3.0 x16 slots (16/NA or 8/8)
1 - 5V PCI 32bit
M.2 Interface: 2 PCIe 3.0 x4, RAID 0 & 1
M.2 Form Factor: 2280/22110
M.2 Key: M-Key
Intel® W480 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
1 DP (DisplayPort) port, 1 HDMI port, 1 DVI - D port, 1 VGA port,
VGA port is dedicated for IPMI

Overview

Specs

Reviews

See all Q & A

Any questions? Ask Celeste^SM will help you find out quickly.

Try me now

Supermicro MB MBDX12SCAFO W480 LGA1200 128GB DDR4 HDMI DP ATX Retail

Supported CPU
CPU Type	Supports: Intel Xeon W-1200 Processors 10th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium /Celeron Processor

Additional Information
First Listed on Newegg	December 08, 2020

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 3 years
Read full details

Return Policies

We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.

Return for refund until: January 31, 2027
Return for replacement until: January 31, 2027
This item is covered by Newegg.com's Extended Holiday Return Policy.
Read full return policy for details.

Manufacturer Contact Info

The Supermicro X12SCA-F is an ATX workstation motherboard for Intel Xeon W-1200 or 10th-generation Core processors, suited to professional desktop builds that need up to 128GB of ECC or non-ECC DDR4 memory and remote management features.

Recommended For

Workstation builders using a supported Xeon W-1200 or 10th Gen Intel Core processor who want ECC-capable UDIMM memory; ECC operation depends on the chosen CPU.
Homelab or small-server builders who want IPMI remote management and KVM access on an ATX workstation platform.
Desktop workstation builders who need two PCIe x16 slots that can run at x16 or x8/x8, plus two M.2 sockets for NVMe storage.
Small-office or lab workstation users who want built-in 1GbE and 2.5GbE networking, with AMT/vPro support available through the appropriate processor and setup.

Spec Summary

Attribute	Value
Best For	Workstation or PC builds using Intel Xeon W-1200, 10th Generation Core, Pentium, or Celeron processors on the W480/LGA 1200 platform
Processor And Platform	Supports Intel Xeon W-1200 and 10th Generation Intel Core i9, i7, i5, i3, Pentium, and Celeron processors; Intel W480 chipset with an LGA 1200 socket
Memory Configuration	Supports up to 128 GB of DDR4 memory, with 2 memory slots listed and a 1333 MHz memory clock speed
Expansion And Storage	3 PCIe ports; supports PCIe and PCI graphics interfaces, plus 4 SATA 3 ports
Ports And Connectivity	9 USB ports, including 2 USB 2.0 ports; 1 HDMI port, 1 Ethernet port, and an optical S/PDIF connector
Power Connector	24-pin main power connector
Form Factor	ATX motherboard
Model Identifiers	MBD-X12SCA-F-O

Item#: 1B4-005W-00902
