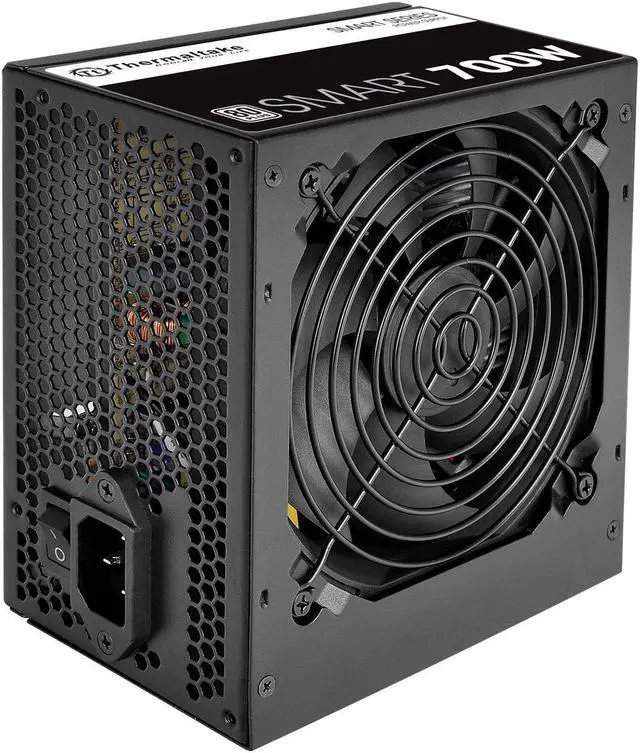

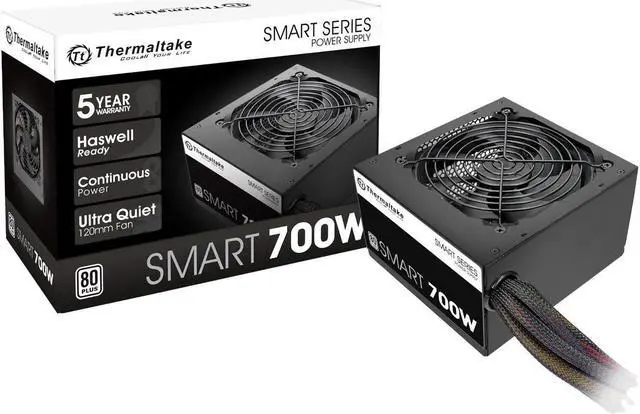

Thermaltake Smart 700W 80+ White Certified PSU, Continuous Power with 120mm Ultra Quiet Fan, ATX 12V V2.3/EPS 12V Active PFC Power Supply PS-SPD-0700NPCWUS-W

Incorporating various high-quality components, the Smart Series - models are rated from 500W to 700W - saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.

P/N: PS-SPD-0700NPCW**-W

Short P/N: SPD-0700P

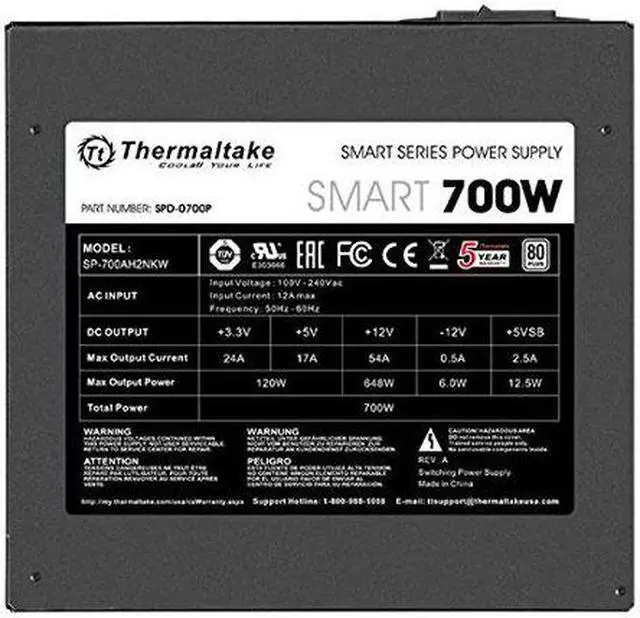

Model: SP-700AH2NKW

Type: Intel ATX 12V 2.3

Max. Output Capacity: 700W

Color: Black

Dimension (H x W x D): 86mm x 150mm x 140mm

PFC (Power Factor Correction) : Active PFC

Power Good Signal: 100-500 msec

Hold Up Time: 16msec (minimum) within 60% load

Input current: 12A max

Input Frequency Range: 50 Hz - 60 Hz

Input Voltage: 100Vac - 240Vac

Operating Temperature: 5? to +40?

Operating Humidity: 20% to 85%,non-condensing

Operating Temperature: -40 ? to +55 ?

Operating Humidity: 10% to 95%, non-condensing

Cooling System: 120mm Fan: 1800 R.P.M. ± 10%

Efficiency: 80-87% efficiency @ 20-100% load

MTBF: 100,000 hrs minimum

Safety Approval: CE/CB/TUV/ UL/ FCC

PCI-E Connector: PCI-E 6+2pin x 2
