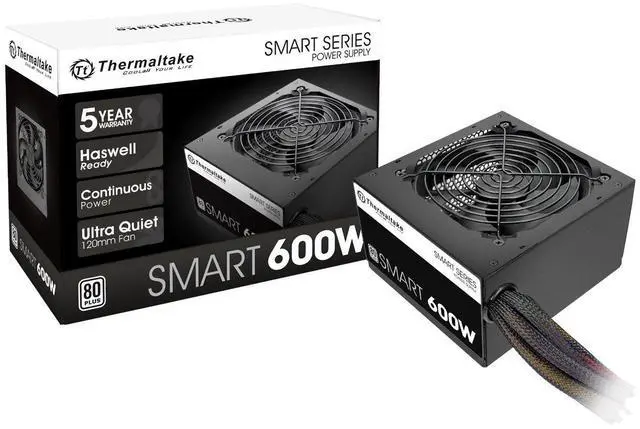

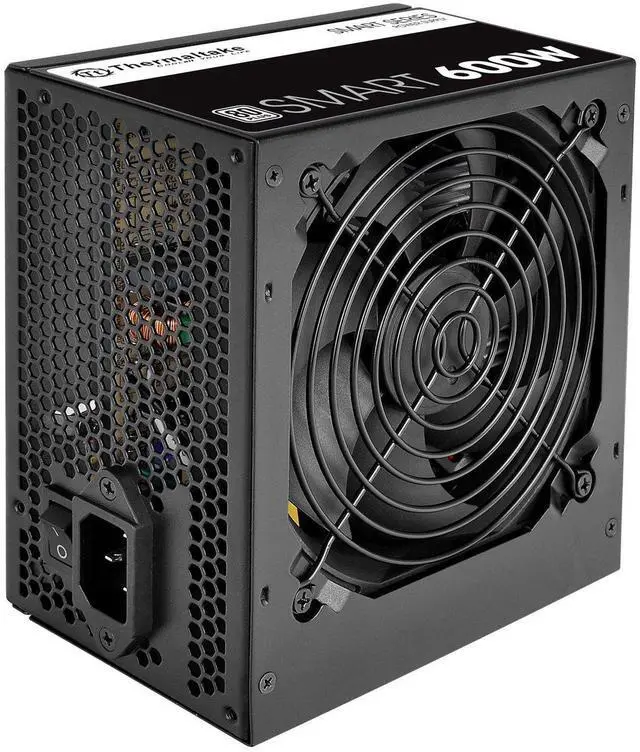

Thermaltake SMART 600W ATX 12V V2.3/EPS 12V 80 PLUS Certified Active PFC Power Supply PS-SPD-0600NPCWUS-W

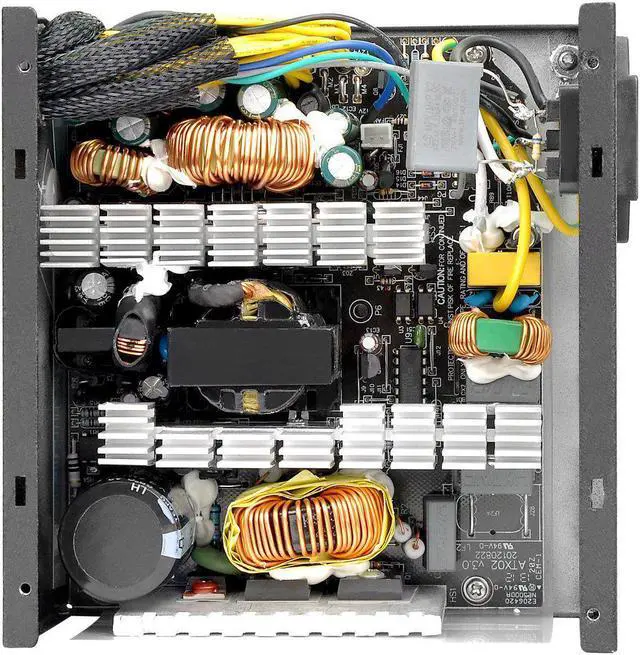

Incorporating various high-quality components, the Smart Series - models are rated from 500W to 700W - saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.

P/N: PS-SPD-0600NPCW**-W

Short P/N: SPD-0600P

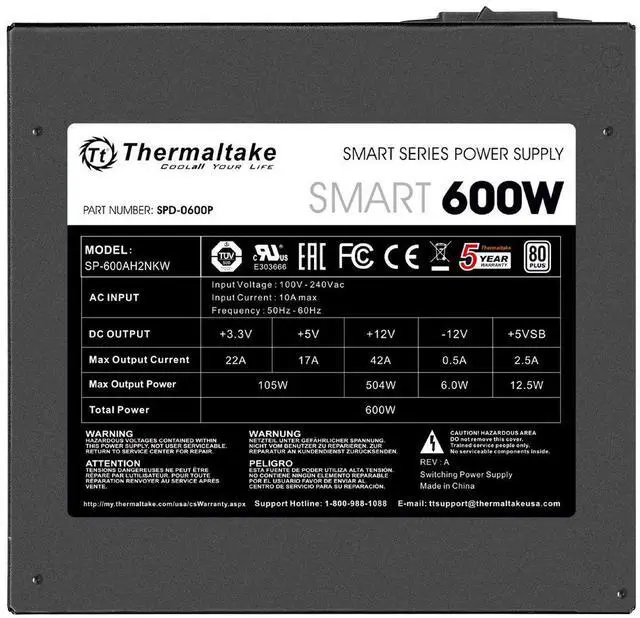

Model: SP-600AH2NKW

Type: Intel ATX 12V 2.3

Max.
Output Capacity: 600W

Color: Black

Dimension (H x W x D): 86mm x 150mm x 140mm

PFC (Power Factor Correction): Active PFC

Power Good Signal: 100-500 msec

Hold Up Time: 16msec (minimum) within 60% load

Input current: 10A max

Input Frequency Range: 50 Hz - 60 Hz

Input Voltage: 100Vac - 240Vac

Operating Temperature: 5? to +40?

Operating Humidity: 20% to 85%, non-condensing

Operating Temperature: -40? to +55?

Storage Humidity: 10% to 95%, non-condensing

Cooling System: 120mm
Fan: 1800 R. P. M. ± 10%

Efficiency: 82-86% efficiency @ 20-100% load

MTBF: 100, 000 hrs minimum

Safety Approval: CE/CB/TUV/ UL/ FCC

PCI-E
Connector: PCI-E 6+2pin x 2
