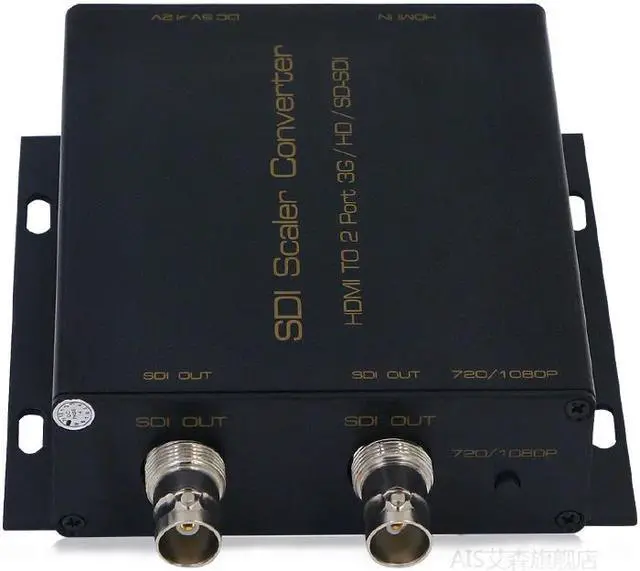

HDMI to SDI converter,SDI scaler converter,HDMI to 2-port 3G/HD/SD-SDI(AIS HDCN0024M1)
Limited time offer, ends 08/05 By xiatiandianzi
- HDMI to 2 SDI converter adapter,One HDMI Input ,Two SDI output that support SD-SDI,HD-SDI and 3G-SDI signal
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications Input
Video Signal: One HDMI Input
Video Signal Output: Two SDI output that support SD-SDI, HD-SDI and 3G-SDI signal The device can converter the HDMI signal to SD-SDI, HD-SDI and 3D-SDI signal. It integrates SDI receiver and HDMI modulator to help the device to change the HDMI signal to SDI signal and embed the audio signal from HDMI into the SDI signal to do simultaneously transmit of the audio and video. Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments. FEATURES l
Input Video Signal: One HDMI Input l
Video Signal Output: Two SDI output that support SD-SDI, HD-SDI and 3G-SDI signal.
l Support HDMI Resolution: 480I@60Hz, 576I@50Hz, 720P@50Hz, 720P@60Hz, 1080I@50/60Hz, 1080P@25 Hz, 1080P@30 Hz, 1080P@50/60Hz.
l HDMI Output: 720P/ 60Hz, 1080P/ 60Hz, PASS Three Modes For Choose (Default PASS Mode) l Support Both SDI Output simultaneously. l Out put
Audio Signal: SDI Built-in l Support Auto Recognition Resolution l Audio and Video Output Simultaneously l No loss of quality l Installs in minutes l Wide voltage input, It can support DC 5V~ 12V input
SPECIFICATIONS: Output highest resolution 1080P@60HZ Audio Signal SDI Built-in SDI baud rate ... .. 270Mb/s, 1.485G b/s and 2.97G b/s Output DDC signal . . 5Volts p-p (TTL) Max working current .. ... 700mA/DC 5V Power adapter format .
Input: AC (50HZ, 60HZ) 100V-240V;

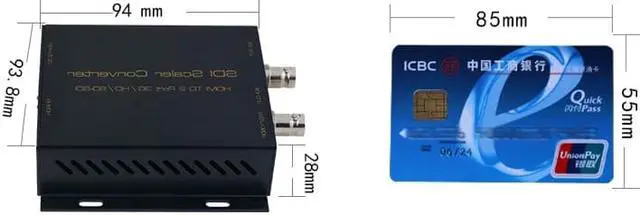

Output: DC5V/2A Operating Temperature range .. . . -10 to +55? Storage Temperature range -20 to +60? Operating Humidity range . . . 10 to 90%RH (No Condensation) Storage Humidity range .. . . 5 to 95%RH (No Condensation) Dimension (L x W x H) . . . 94X 93.8X 28 (mm) Weight .. .. ..
165g ]>HDMI Output: 720P/ 60Hz, 1080P/ 60Hz, PASS Three Modes For Choose (Default PASS Mode) l Support Both SDI Output simultaneously. l Out put
Audio Signal: SDI Built-in l Support Auto Recognition Resolution l Audio and Video Output Simultaneously l No loss of quality l Installs in minutes l Wide voltage input, It can support DC 5V~ 12V input
Video Signal: One HDMI Input
Video Signal Output: Two SDI output that support SD-SDI, HD-SDI and 3G-SDI signal The device can converter the HDMI signal to SD-SDI, HD-SDI and 3D-SDI signal. It integrates SDI receiver and HDMI modulator to help the device to change the HDMI signal to SDI signal and embed the audio signal from HDMI into the SDI signal to do simultaneously transmit of the audio and video. Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments. FEATURES l
Input Video Signal: One HDMI Input l
Video Signal Output: Two SDI output that support SD-SDI, HD-SDI and 3G-SDI signal.
l Support HDMI Resolution: 480I@60Hz, 576I@50Hz, 720P@50Hz, 720P@60Hz, 1080I@50/60Hz, 1080P@25 Hz, 1080P@30 Hz, 1080P@50/60Hz.
l HDMI Output: 720P/ 60Hz, 1080P/ 60Hz, PASS Three Modes For Choose (Default PASS Mode) l Support Both SDI Output simultaneously. l Out put
Audio Signal: SDI Built-in l Support Auto Recognition Resolution l Audio and Video Output Simultaneously l No loss of quality l Installs in minutes l Wide voltage input, It can support DC 5V~ 12V input
SPECIFICATIONS: Output highest resolution 1080P@60HZ Audio Signal SDI Built-in SDI baud rate ... .. 270Mb/s, 1.485G b/s and 2.97G b/s Output DDC signal . . 5Volts p-p (TTL) Max working current .. ... 700mA/DC 5V Power adapter format .
Input: AC (50HZ, 60HZ) 100V-240V;
Output: DC5V/2A Operating Temperature range .. . . -10 to +55? Storage Temperature range -20 to +60? Operating Humidity range . . . 10 to 90%RH (No Condensation) Storage Humidity range .. . . 5 to 95%RH (No Condensation) Dimension (L x W x H) . . . 94X 93.8X 28 (mm) Weight .. .. ..
165g ]>HDMI Output: 720P/ 60Hz, 1080P/ 60Hz, PASS Three Modes For Choose (Default PASS Mode) l Support Both SDI Output simultaneously. l Out put
Audio Signal: SDI Built-in l Support Auto Recognition Resolution l Audio and Video Output Simultaneously l No loss of quality l Installs in minutes l Wide voltage input, It can support DC 5V~ 12V input
