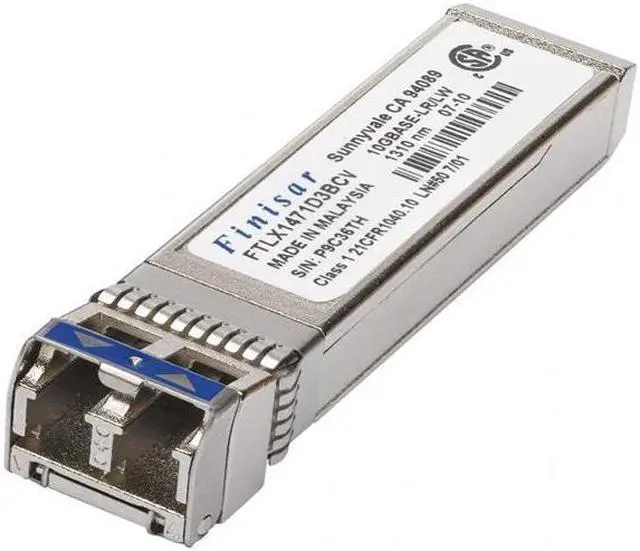

Finisar163-0007184 10G/1G Dual Rate 10km SFP+ Optical Transceiver FTLX1471D3BCV

FINISAR RESELLER
Supports rate selectable 1.25G b/s or 9.95 to 10.3G b/s bit rates, Hot-pluggable SFP+ foot print, Built-in digital diagnostic functions
Uncooled 1310nm DFB laser transmitter, RoHS-6 compliant (lead-free), Maximum length of 10Km
Commercial temperature range of -5°C to 70°C, Power dissipation < 1W
Receiver limiting electrical interface, Duplex LC connector, Single 3.3V power supply

Interface Masters Technologies’ transceiver 163-0007184 1G/10G dual-rate SFP+ is designed for use in 1-Gigabit and 10-Gigabit Ethernet links up to 10km over single mode fiber. They are compliant with SFF-8431, IEEE 802.3 -2005 10GBASE-LR/LW and 1000BASE-LX. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. This product is for applications specifically designed for 10G SFP+ ports and 1G/10G SFP+ ports and not native 1G SFP ports. The 163-0007184 is a "limiting module", i. e., it employs a limiting receiver. This optical transceiver is compliant per the RoHS Directive 2011/65/EU.

This transceiver is manufactured by Finisar, part number FTLX1471D3BCV. See Finisar Application Note AN-2038 for more details.
