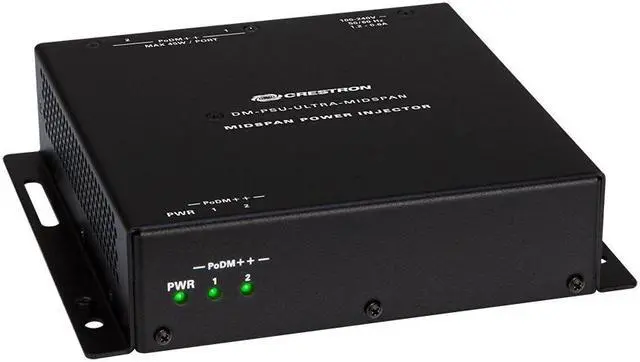

Crestron DM-PSU-ULTRA-MIDSPAN DigitalMedia Ultra Midspan PoDM++ Injector (NOB)

Crestron DM-PSU-ULTRA-MIDSPAN DigitalMedia Ultra Midspan PoDM++ Injector (NOB)

Brand:   Crestron

Model:   DM-PSU-ULTRA-MIDSPAN

Product Type:  Injector

Connectors:   6-32 screw; Chassis ground lug

Indicators PWR:   1 bottom/front, 1 top/rear) Green LEDs, each indicates main AC line power is connected and the unit is operating

Main Power:   1.2 Amp @ 100-125 Volts AC or 0.6 Amp @ 220-240 Volts AC, 50/60 Hz

Power Consumption:   0.7 Watts at idle

PWR:  Green LEDs, each indicates main AC line power is connected and the unit is operating

 PoDM++ 1 – 2 (bottom/front):   Green LEDs, each indicates the corresponding port is delivering power to the connected device

PORT PWR 1 – 2 (top/rear):  Green LEDs, each indicates the corresponding port is delivering power to the connected device

 Features:

Powers one or two PoDM-powered DM 8G+ devices

Supports PoDM+ and PoDM++ powered devices

Simultaneously supplies up to 45 Watts from each port

Inserts midspan and supplies power to both endpoints

Preserves the integrity of 4K video and 10 GB data signals

Maintains full 300 ft (100 m) cable length end-to-end

Also functions as a 2-port PoDM++ power supply for DMC I/O cards

Compatible with HDBaseT® PoE+ powered devices

Includes status indicators for basic troubleshooting

No configuration or programming required

Surface or under-table mountable

Attachable to a single rack rail

1 RU rack mount kit option sold separately
