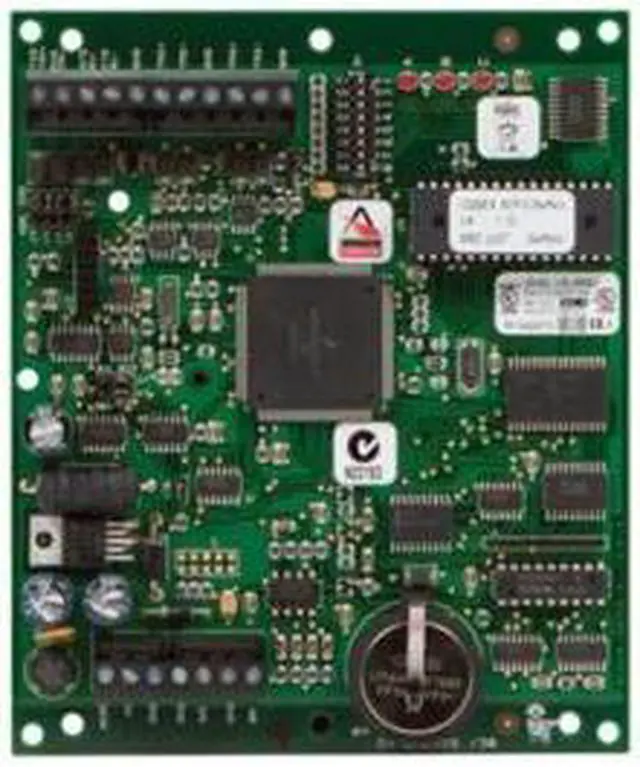

Lenel LNL-500W 38.4Kbps RS-485 12VDC Wireless Reader Interface Gateway
- Brand: Lenel
- Model: LNL-500W
- Type: Interface Gateway
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Lenel LNL-500W 38.4Kbps RS-485 12VDC Wireless Reader Interface Gateway
Brand: Lenel
Model: LNL-500W
Type: Interface Gateway
Network Type: RS-485
DC input: 12 VDC ± 15%. 250 mA
AC Input: 12VAC ± 15%. 400 mA RMS
Voltage: 12 V DC
Power Consumption: 250 mA
Features
Host communications - 38.4 Kbps direct wire (RS-232/RS-485 multidropped), Ethernet TCP/IP, or dial-up communication
12 VAC or 12 VDC input power
Supports up to 16 Schlage Wireless readers
Flash memory for real-time program updates
Status LEDs for heartbeat, upstream and downstream communication
Two dedicated inputs for Cabinet Tamper and Power Failure status
On-board RS-485 termination jumpers
Easy to configure dip switches for address and communication speeds
On-board program configuration and clock battery backup
