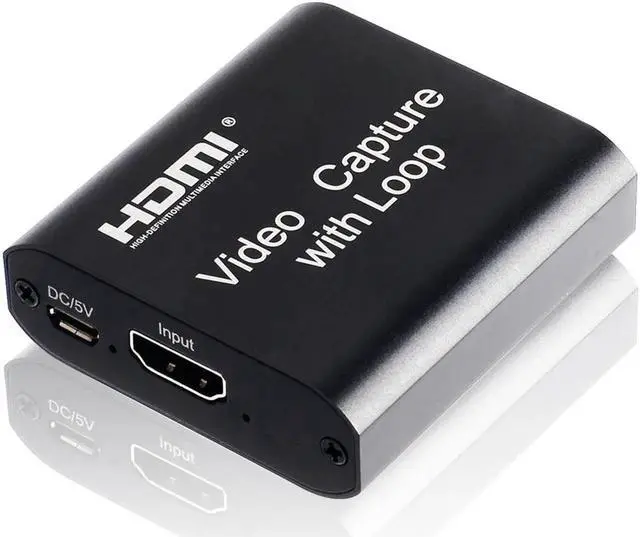

4K HDMI Video Capture Card 1080p Board Game Capture Card USB 2.0 Recorder Box Device for Live Streaming Video Recording Loop Out

Feature:

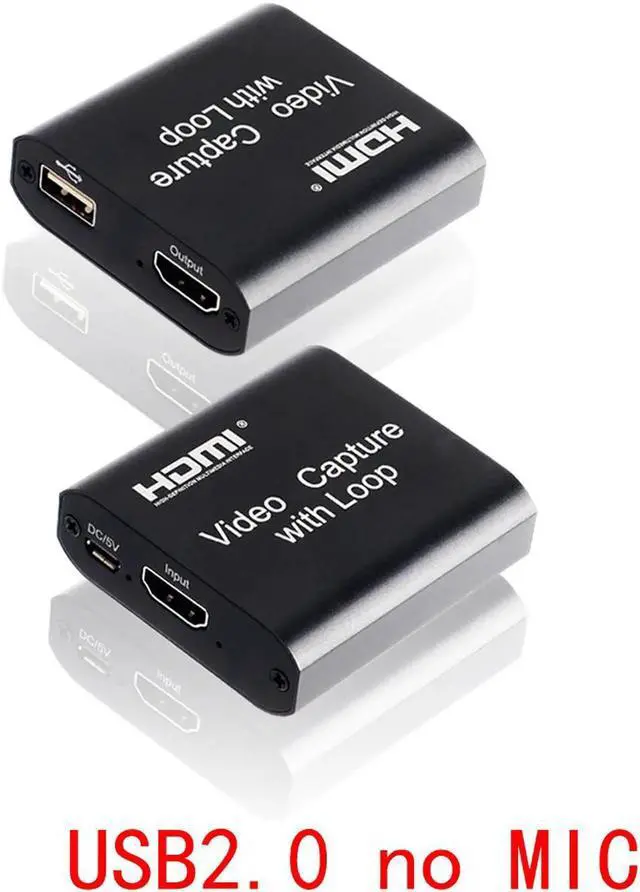

No MIC version:

Description:

The video capture can capture both HDMI video and HDMI audio, sending audio and video signals to computers and smart phones for preview and storage. Also can push to online live platfroms to live at the same time, Suitable for HD acquisition, teaching live streaming, game live streaming, Study video capture, Films capture etc.

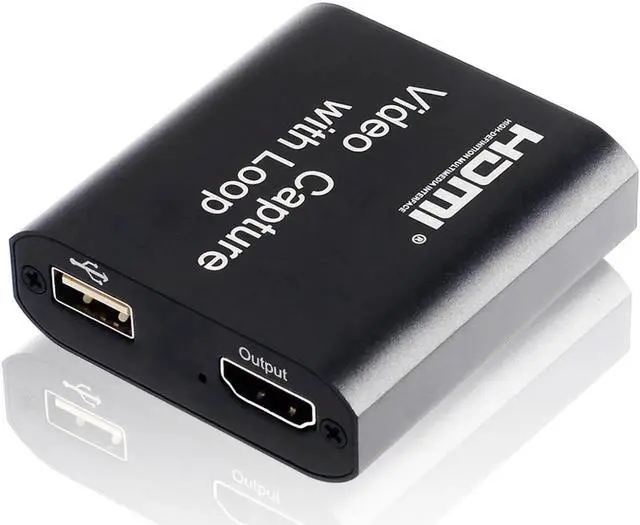

1. Support HDMI loop out;

2. Support input max resolution 4K 30fps, the loop out resolution is same as input;

3. Support capture max resolution 1080P 30fps;

4. Support AWG26 HDMI standard cable: input up to 15 meters,

(1080P and below resolution);

5. Support most acquisition software, such as VLC?OBS ?Amcap, etc;

6. Support Windows?Linux and MacOS;

7. Conform to USB Video and UVC standard;

8. Conform to USB Audio UAC standard;

9. Compact and portable.

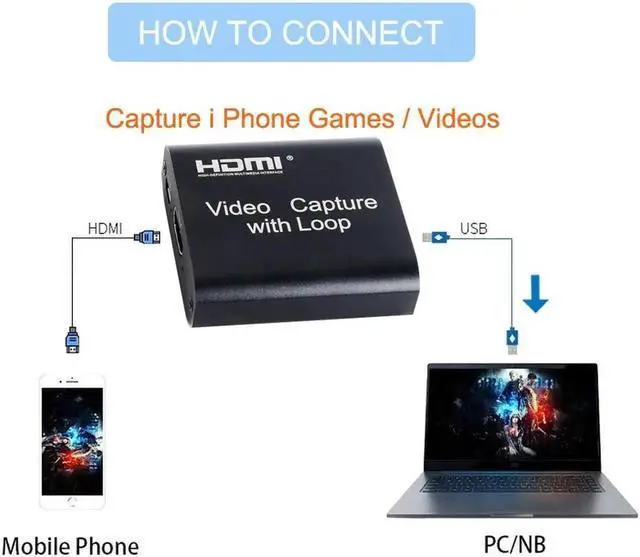

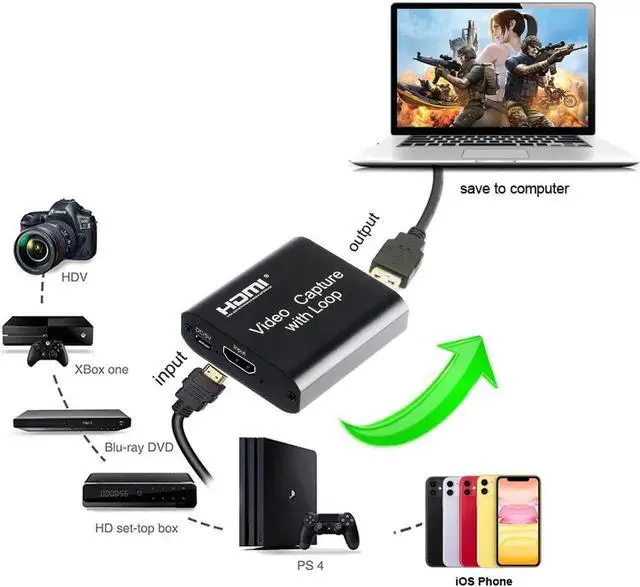

Connection and Operation:

1. Connect the UHD signal source to the HDMI input of the video capture with one HDMI cable.

2. Connect the display device to the HDMI output of the video capture with one HDMI cable.

3. Connect PC USB port to the USB output of the video capture with one USB cable.

4. Operation steps for USB video capture(OBS): Open the software?Choose sources of Video capture Device?Set the size of image?Choose Studio Mode(double window)?Choose Start Recording.

Note:

Computer hardware configuration requirements

CPU: PC i5-3400 or above ;NB i7-3537U 2.0GHZ or above

Graphics card: PC NVIDIA GT630 or above;NC NVIDIA GT735M or above

Run memory: 4G RAM.

With MIC version:

Description:

This USB capture card can collect HDMI audio and video. HDMI audio and video signals can be transmitted to the computer and smartphone for preview and storage.

Suitable for high-definition acquisition, teaching recording, medical imaging, etc.

1. Support input resolution up to 4K.

2. Support output resolution up to 1080P.

3. One HDMI input, One HDMI loop out, Watching and Recording.

4. One Microphone input.

5. One 3.5mm stereo output.

6. Support 8/10/12 bit color depth.

7. Support AWG26 HDMI standard cable, the maximum input transmission distance is 15 meters (1080P and below resolution).

8. Support most acquisition software, such as VLC, OBS, Amcap, etc.

9. Support Windows, Android and MacOS.

10. Complies with USB video UVC specifications.

11. Complies with USB audio UAC specifications.

12. No external power supply, compact size, easy to carry.

Specification:

HDMI resolution: Maximum input support 4K

Video input format: 8/10/12-bit color depth

Video output mode: MJPEG

Video output resolution: Maximum output resolution 1080P @ 60Hz

Support audio format: PCM

Input cable length. =15m, AWG26 HDMI standard cable

Maximum working current: 0.4A / 5V DC

Operating temperature range: (-10 to + 55 ?)

Product size(LxWxH): 68x27x9(mm)

Product weight: 100g

Note:

Computer hardware configuration requirements

CPU: PC i5-3400 or above; NB i7-3537U 2.0GHZ or above

Graphics card: PC NVIDIA GT630 or above; NC NVIDIA GT35M or above

Storage: 4G RAM

Packing List:

1 x Video Capture Card(No Mic Or With Mic Version)
