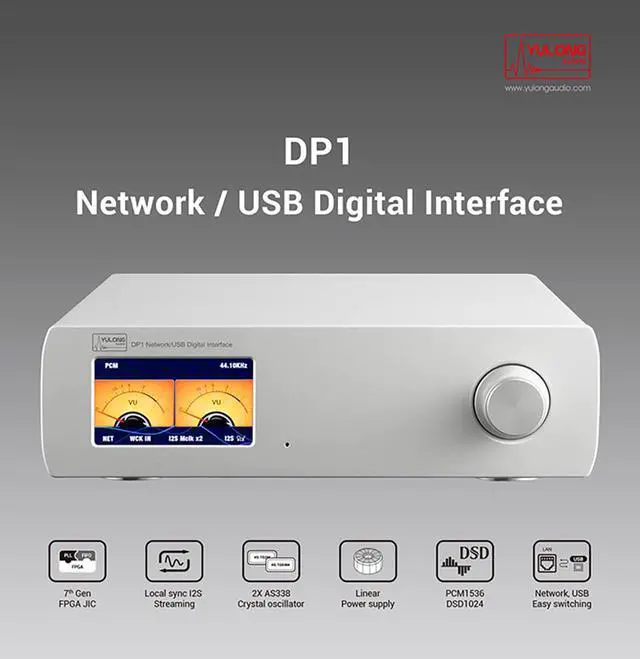

YULONG DP1 Network Streaming Machine USB Digital Interface HD Music DSD1024 Digital Signal Processing (Black)

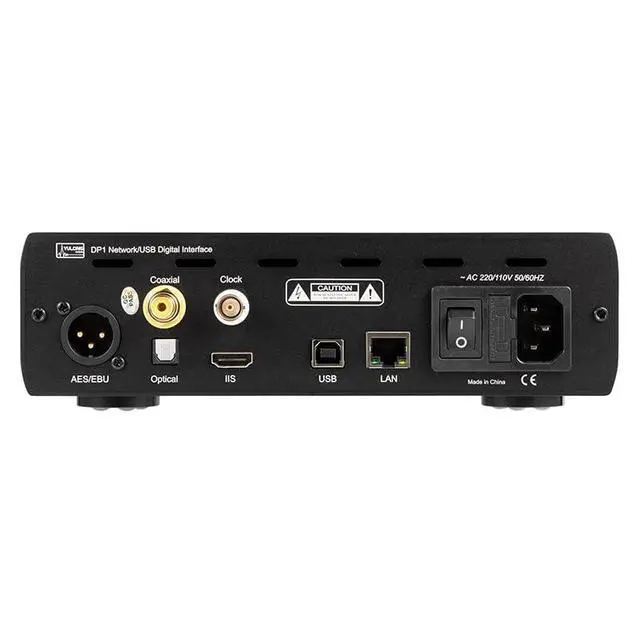

- Input & Output: Dual Accusilicon AS338 low-noise audio synchronization oscillators, supports net, usb, word clock input/output. optical, coaxial, AES outputs support PCM1536, DSD1024 format; Streaming Protocol Support: DP1 supports Airplay2DLNASqueezeliteRoon BridgeHQNaaDaphileLMSSpotify; Voltage Regulation: The DP1 features a built-in 25W linear power supply with an LT1764 as the main regulator. The network/USB port, clock, PLL, audio driver 10, and audio output drivers all use independent secondary precision low-noise linear voltage regulators for power supply; Dual Core: DP1 uses a dual core CPU with optimized power and memory layout for sound quality, streamlining Linux as the internal processor Nuclear; FPGA Power Design: Directly communicate with FPGA to integrate all functions of network stream decoding, USB interface, SPDIF demodulation/encoding, data FIFO, clock PLL into CPU+FPGA for operation
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Technical Specificaiton: NET,
USB input:
PCM: up to 32Bit/1536KHz
DSD: DoP64, DoP128, Native DSD64/128/256/512/1024 AES, Coaxial, output:
PCM: up to 32Bit/384KHz
DSD: DoP64, DoP128
Optical output:
PCM: up to 24Bit/192KHz
DSD: DoP64, DoP128, Native
DSD64/128/256/512/1024 CLOCK input /output: 44.1KH z-768KHz
THD+N: 0.000008 %
Dynamic Range: 140dB
Power consumption: <20W
Dimension: 248mm x 210mm x 60mm (L x D x
H) Weight: 2.5K g
USB input:
PCM: up to 32Bit/1536KHz
DSD: DoP64, DoP128, Native DSD64/128/256/512/1024 AES, Coaxial, output:
PCM: up to 32Bit/384KHz
DSD: DoP64, DoP128
Optical output:
PCM: up to 24Bit/192KHz
DSD: DoP64, DoP128, Native
DSD64/128/256/512/1024 CLOCK input /output: 44.1KH z-768KHz
THD+N: 0.000008 %
Dynamic Range: 140dB
Power consumption: <20W
Dimension: 248mm x 210mm x 60mm (L x D x
H) Weight: 2.5K g
