Cable Matters Receiver Box for HDMI Extender Over Ethernet Cable (HDMI Over Ethernet, HDMI Over TCP/IP) up to 300 Feet

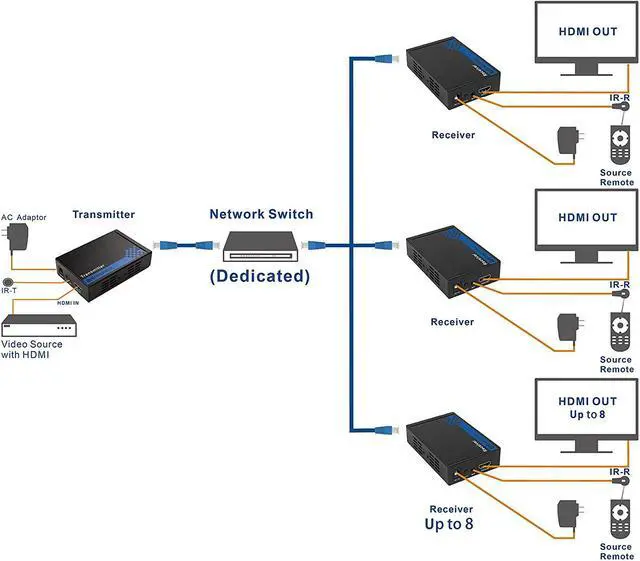

- Add additional displays (up to 8 total) to a single HDMI Extender over Cat 6 Transmitter box with TCP/IP through an unmanaged, dedicated Gigabit Ethernet network switch; Receiver box is surface mountable with included brackets and screws
- Digital integrity multiplied - additional receiver boxes extend the audio/video HDMI connection up to 300 feet between the Extender Transmitter with a source computer, Blu-ray player, media streamer, or gaming console to an HDMI display HDTV, monitor or projector; Compatible with an unmanaged Gigabit network switch without QoS such as the TP-LINK TL-SG1005D Gigabit Desktop Switch; Lab tested with the TRENDnet 5-Port Unmanaged Gigabit GREENnet Switch TEG-S81g
- Control a DVD player or other HDMI video source from a remote location with the included IR cable that forwards commands over a dedicated DDC channel for convenience and security
- Vibrant video & authentic audio- supports video resolutions of 1080p/1080i/720p/576p/576i/480p/480i at 50/60 H
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

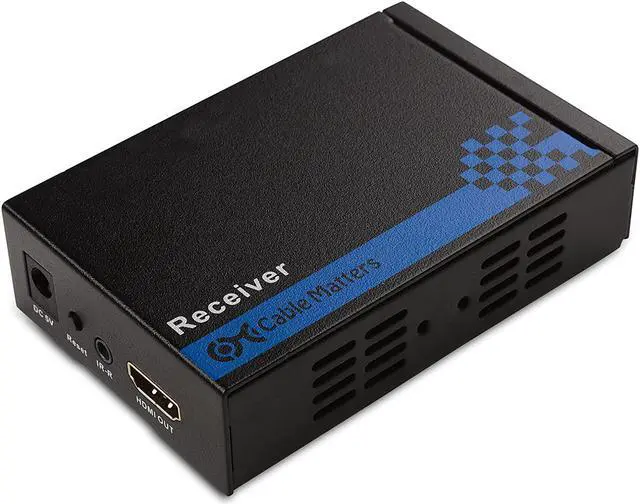

Easily Add More DisplaysThe Cable Matters HDMI Extender Receiver Box is the ideal solution for connecting up to 8 displays. This AC powered receiver with repeater chips provides reliable audio and video transmission over much longer distances than possible with a single HDMI cable. Control the video source with a hand-held remote using the included IR cable.
Important Notes

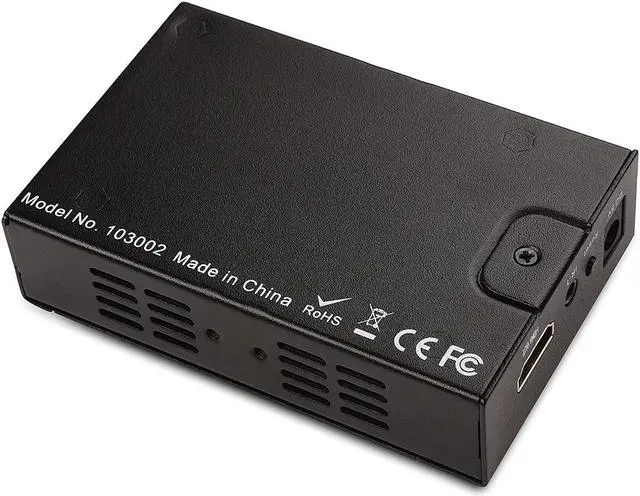

- Receiver Box is only compatible with HDMI Extender Model 103002 (ASIN B00OZV04BK)
- Compatible with an unmanaged, dedicated network switch
- Use shielded cable for longer lengths or in a high RFI/EMI area
Cost-Effective and Easy to DeployPlug & Play installation, no software drivers required.
Use existing Cat5/Cat6 cabling.
Extend & split with an inexpensive network switch
Cost effective alternative than using an HDMI matrix or a splitter
Add more displays with additional receivers.
High Definition VideoSupports up to 1080p @ 60Hz.
LCPM, DTS Digital, Dolby Digital audio.
No separate audio cable required.
Compatible with HDCP compliant equipment.

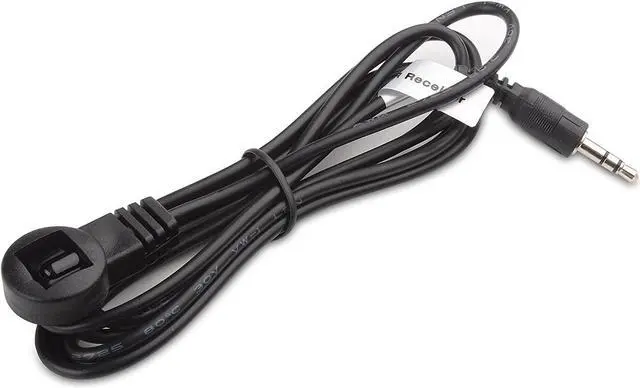

Convenient Remote ControlIncludes IR Tx and Rx cables.
Uses your existing HDMI source remote.
Control the video from the display location.
Surface MountableWeighs less than 8 oz.
Mounts with included brackets.
Compact 4 x 3 x 1" footprint
Check for CompatibilityDisplays must support HDCP, even if the source device does not use HDCP
Not compatible with HDMI to VGA adapters, HDMI capture cards, or A/V streaming mixers like the Roland Streamer
Package Contents1 x HDMI Receiver.
1 x 5V DC Power Adapter (5').
1 x IR Transmitter & Receiver (5').
2 x L Mounting Brackets & Screws.
1 x User Manual.
Important Notes
- Receiver Box is only compatible with HDMI Extender Model 103002 (ASIN B00OZV04BK)
- Compatible with an unmanaged, dedicated network switch
- Use shielded cable for longer lengths or in a high RFI/EMI area
Cost-Effective and Easy to DeployPlug & Play installation, no software drivers required.
Use existing Cat5/Cat6 cabling.
Extend & split with an inexpensive network switch
Cost effective alternative than using an HDMI matrix or a splitter
Add more displays with additional receivers.
High Definition VideoSupports up to 1080p @ 60Hz.
LCPM, DTS Digital, Dolby Digital audio.
No separate audio cable required.
Compatible with HDCP compliant equipment.
Convenient Remote ControlIncludes IR Tx and Rx cables.
Uses your existing HDMI source remote.
Control the video from the display location.
Surface MountableWeighs less than 8 oz.
Mounts with included brackets.
Compact 4 x 3 x 1" footprint
Check for CompatibilityDisplays must support HDCP, even if the source device does not use HDCP
Not compatible with HDMI to VGA adapters, HDMI capture cards, or A/V streaming mixers like the Roland Streamer
Package Contents1 x HDMI Receiver.
1 x 5V DC Power Adapter (5').
1 x IR Transmitter & Receiver (5').
2 x L Mounting Brackets & Screws.
1 x User Manual.
