50M Over IP Network Extender 1080P Transmitter by RJ45 CAT5e CAT6 LAN Extensor Like Splitter Support POE

Product Option:Length:EU POWER ADAPTER.Contact with us if you need other option.

Instruction:

extender provides extension of signals long distances over a single CAT5e/6 cable, it supports high resolution up to 1080P signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Features:

Long range transmission:up to 50m over a single CAT6 cable;

Video resolution:720P@50/60Hz,1920x1080p@50/60Hz;

Audio sampling rate:32kHz, 44.1kHz and 48kHz ;

Audio Format:PCM

Low latency:less than 50 ms.

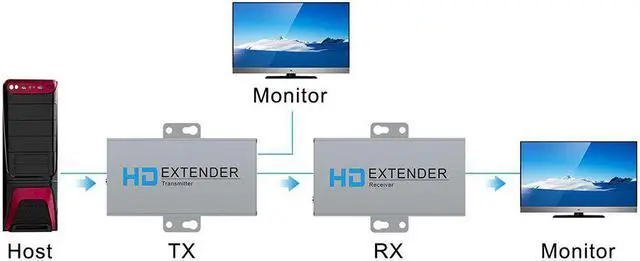

Male to male:one TX to one RX applicataion;

Video standard:compliance with 1.3 and HDCP 1.2 standard;

Local EDID function :match many kinds of display devices;

Built-in automatic adjustment system:make the image smooth, clear and stable;

Built-in ESD protection system:make transmission much safer. Perfect extension adapter for large homes, factories, construction sites, data control centers etc;plug and play

Simple to install, plug and play

Please Note:

1. This extender only support 2.0CH, can not support 5.1CH like DTS or dolby dts. Please set the PCM/LPCM first.

Specifications:

Standards---------- 1.3; HDCP 1.2

Resolution ------1920X1080@60Hz

Connector------A

POE--------Support

Transmission distance--------50M

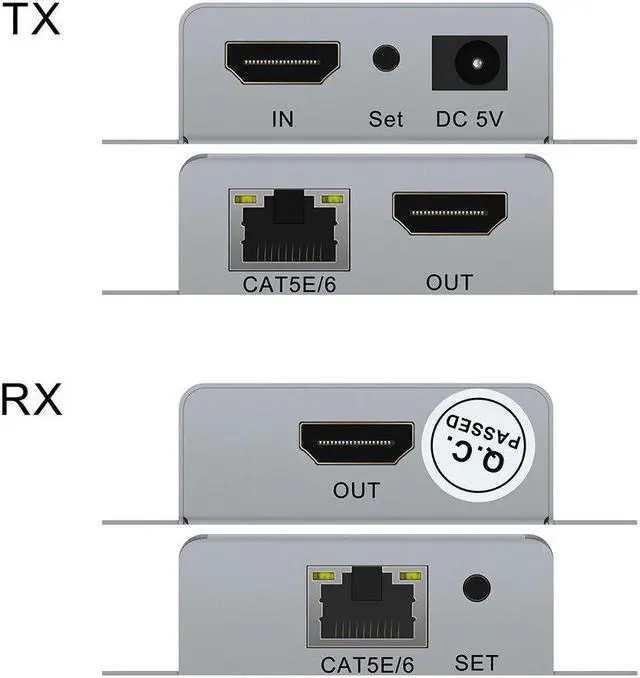

TX Set buttom fuction--------Adjust the Driving Capability fuction: If the screen flickers after extend,you can short press the Tx set button to adapt the distance and Network cable

Packing List:

extender transmitter ........................1 pcs

extender receiver ........................... 1 pcs
