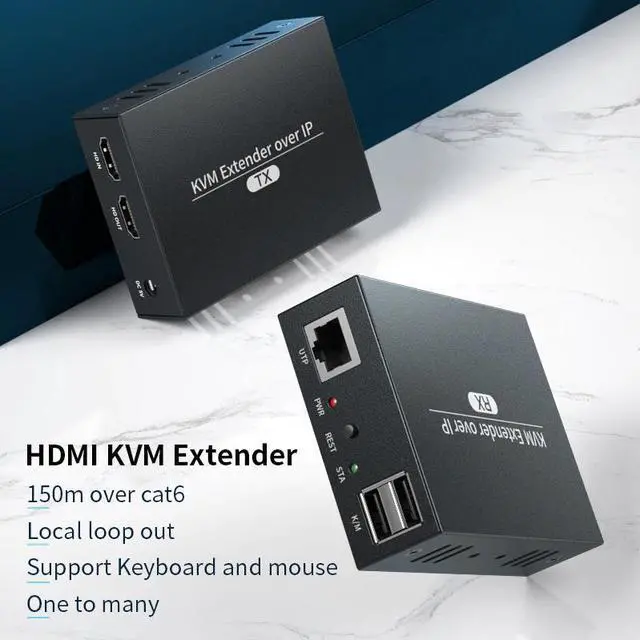

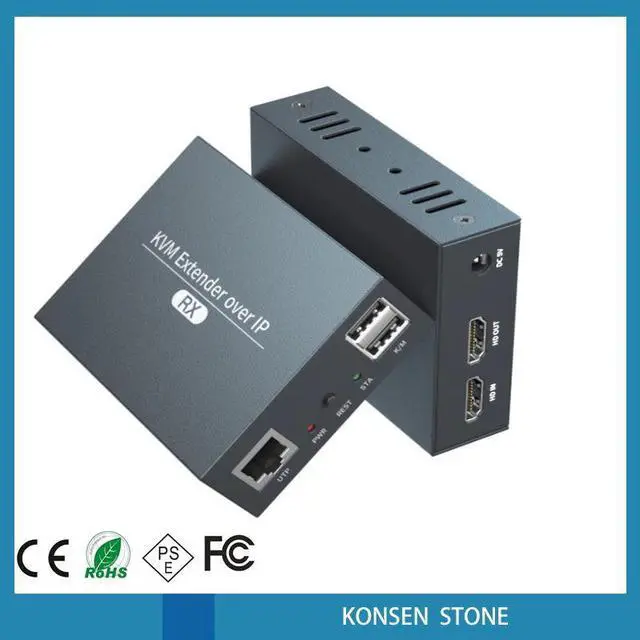

200M KVM Extender Over IP USB Extender via cat6 Rj45 Ethernet Network USB Over UTP/STP Support USB Mouse Keyboard

Product Option:Color:One TX and One RX.Contact with us if you need other option.

2021 Newest KVM Extender Over IP RJ45 Ethernet Network KVM Extender USB 200M Over UTP/STP KVM Extender CAT5 CAT6

Description:

This extender provides extension of signals long distances over a single CAT5e/6/7 cable, it supports high resolution up to 1920x1080@60Hz, Keyboard and mouse signal and loop out transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Features:

Transmission Distance:up to 200m over a single CAT5e CAT6 cable;

Video resolution:up to 480P,720P,1920*1080P@60Hz;

Audio sampling rate:32kHz, 44.1kHz and 48kHz ;

Audio Format:DTS-HD/Dolby-true HD/LPCM7.1/DTS/DSD ;

USB KVM function:Support keyboard and mouse romote control;

Loop out:The transmitter with one local output;

H.264 compressed Technology,less than 50ms delay;

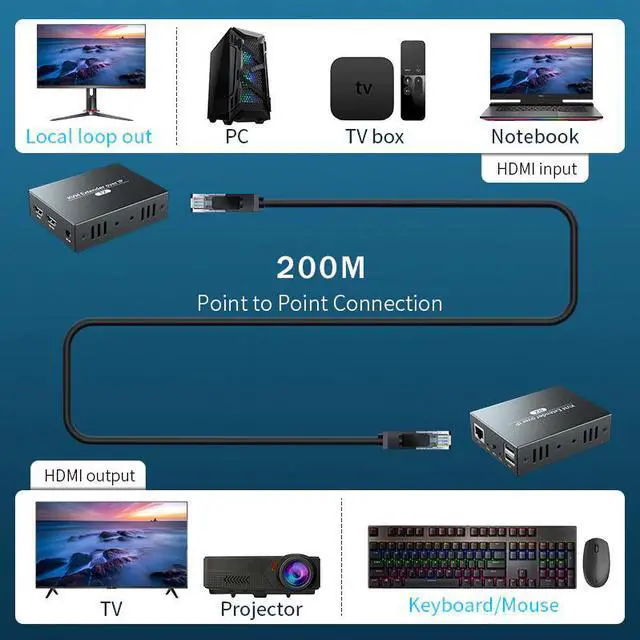

Male to male:one TX to one RX applicataion;

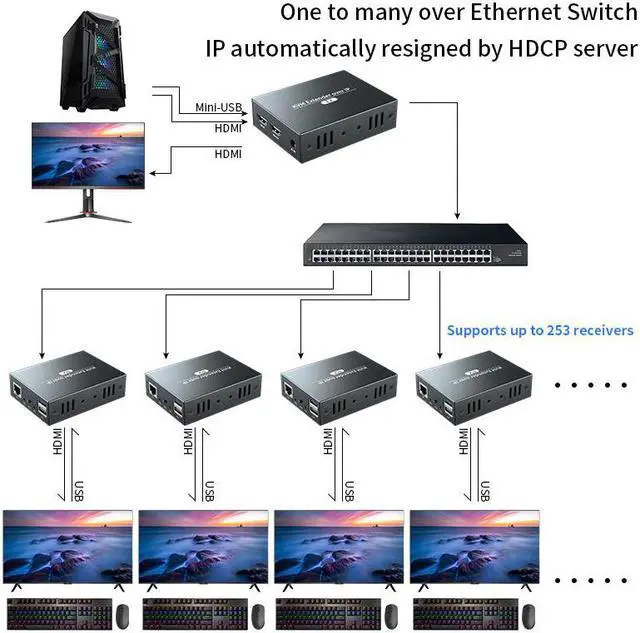

Male to female:TCP/IP,one TX to N RX(Max:253 pcs RX) application with Ethernet switch/Router;

IEEE-568B:standard 802.3 Ethernet 10/ 100/ 1000Mbps;

Video standard:compliance with 1.3 and HDCP 1.2 standard;

Copy EDID function :match many kinds of display devices;

Built-in automatic adjustment system:make the image smooth, clear and stable;

Built-in ESD protection system:make transmission much safer. Perfect extension adapter for large homes, factories, construction sites, data control centers etc;plug and play

Simple to install, plug and play

Specifications:

Video

Standards---------- 1.3; HDCP 1.2

Maximum pixel clock------165MHz

Connector------A
