Wireless HDMI Transmitter and Receiver,1080P Full HD Wireless HDMI Extender Kit 820FT with HDMI Loop-Out and Support IR Remote Streaming from PC,Camera,Laptop,Netflix,Ps4/5 to HDTV/Projector/DSLR

HD Wireless TransmissionThis wireless HDMI transmitter and receiver support up to 1080@60Hz video resolution, transmitting video from the transmitter to the receiver through the 2.4G / 5.8G transmission channels. It enables you to enjoy high-quality, noise-free, and crystal-clear images on a large screen, with impeccable audio.
Note: Real-time gaming may experience a 0.06 -second delay
Transmission distance up to 820ftUse wireless high-speed transmission signals for wireless HDMI transmitter and receiver, which provides faster transmission speeds and stronger anti-interference capabilities. With external dual-gain antennas, it can transmit over long distances, and the open transmission distance can reach up to 820 feet.
Note: The transmission distance can be increased when the product is more than 0.7 meters off the ground
Plug And Play & No DelayWireless HDMI Transmitter and Receiver is quick and easy to set up, no software installation required, get up and running in minutes.
Loop-Out & IR Remote ControlThe extender transmits lossless signal, perfect for movies, TV, video and presentations, the extra HDMI output on the transmitter allows you to add a local monitor for monitoring, the local display has absolutely no delay.
Wide CompatibilityThis wireless video HDMI display kit works with TVs and projectors that have HDMI input. The unit connects wirelessly to most cable, satellite, Blu-ray, set-top boxes, DVRs, laptops, TVs, monitor AV receivers, computer systems and other media via the HDMI output. Ideal for offices, conferences, church projections and home entertainment
Support Max 1TX to 4RXThis wireless HDMI transmitter and receiver can support 1TX to 4RX (Max) for multiple screens, add more
RX as needed (eg: buy 1x2, 1x3, 1x4) 2 TVs, Receiver for 3 TVs, 4 TVs). (RX
ASIN: B09XQRCDQK).

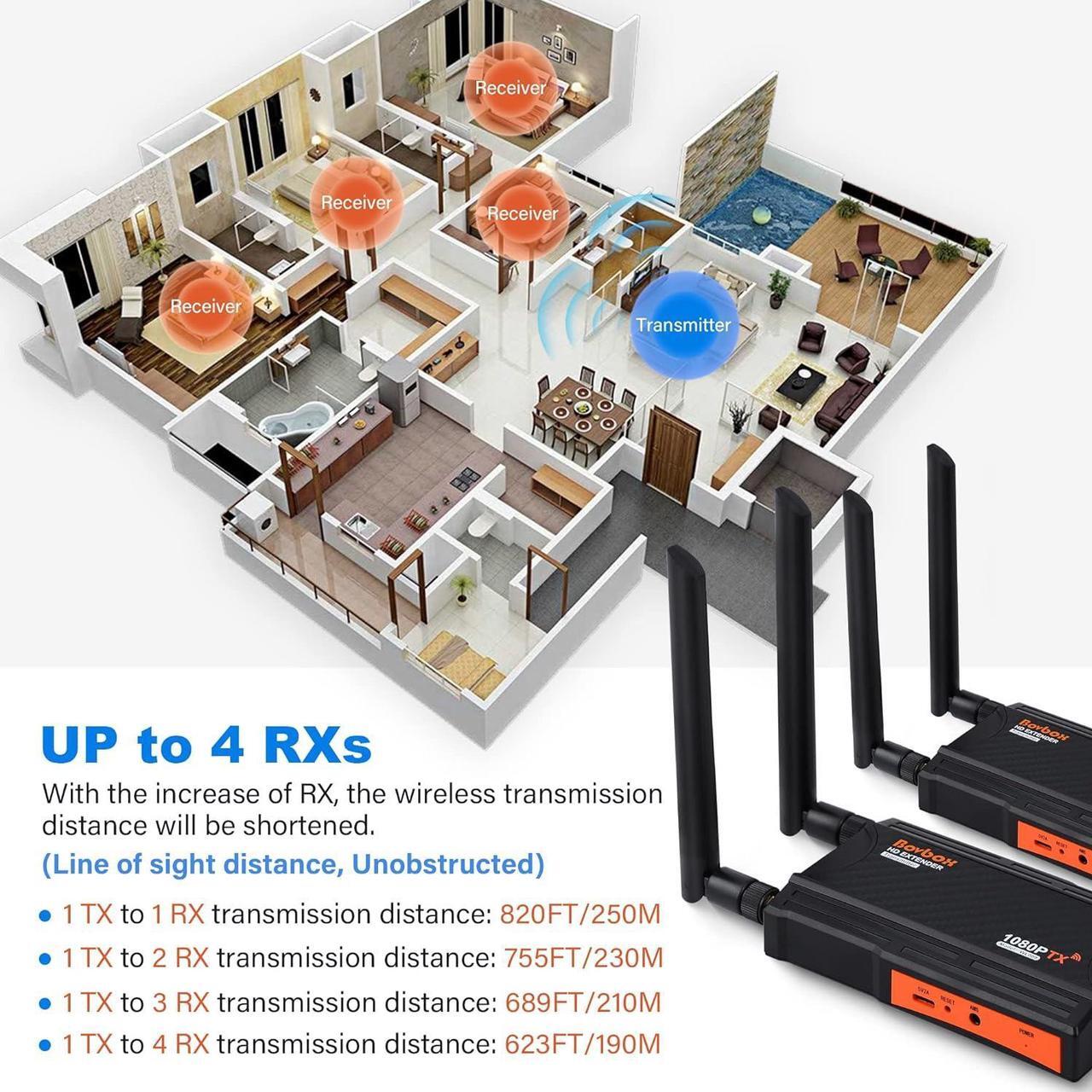

Note: With the increase of RX, the wireless transmission distance will become shorter. In theory, line
of sight: 1 TX to 1
RX transmission distance: 820FT; 1 TX to 2
RX: 755FT; 1 TX to 3
RX: 689FT; 1 TX to 4
RX: 623FT;

Audio Separation
With the RX, you can receive signals from cameras and see video signals through other HDMI devices (HDMI signal has the audio as well). Plugged into headphones, we can monitor live sound through the AMS port on the RX.

The AMS interface on the TX is used to collect external audio, and the sound is transmitted through the TX to the RX for play the collected sound.

At present, if your HDMI OUT port carries ARC, then this product can only transmit video, but cannot transmit audio.

Installation Steps

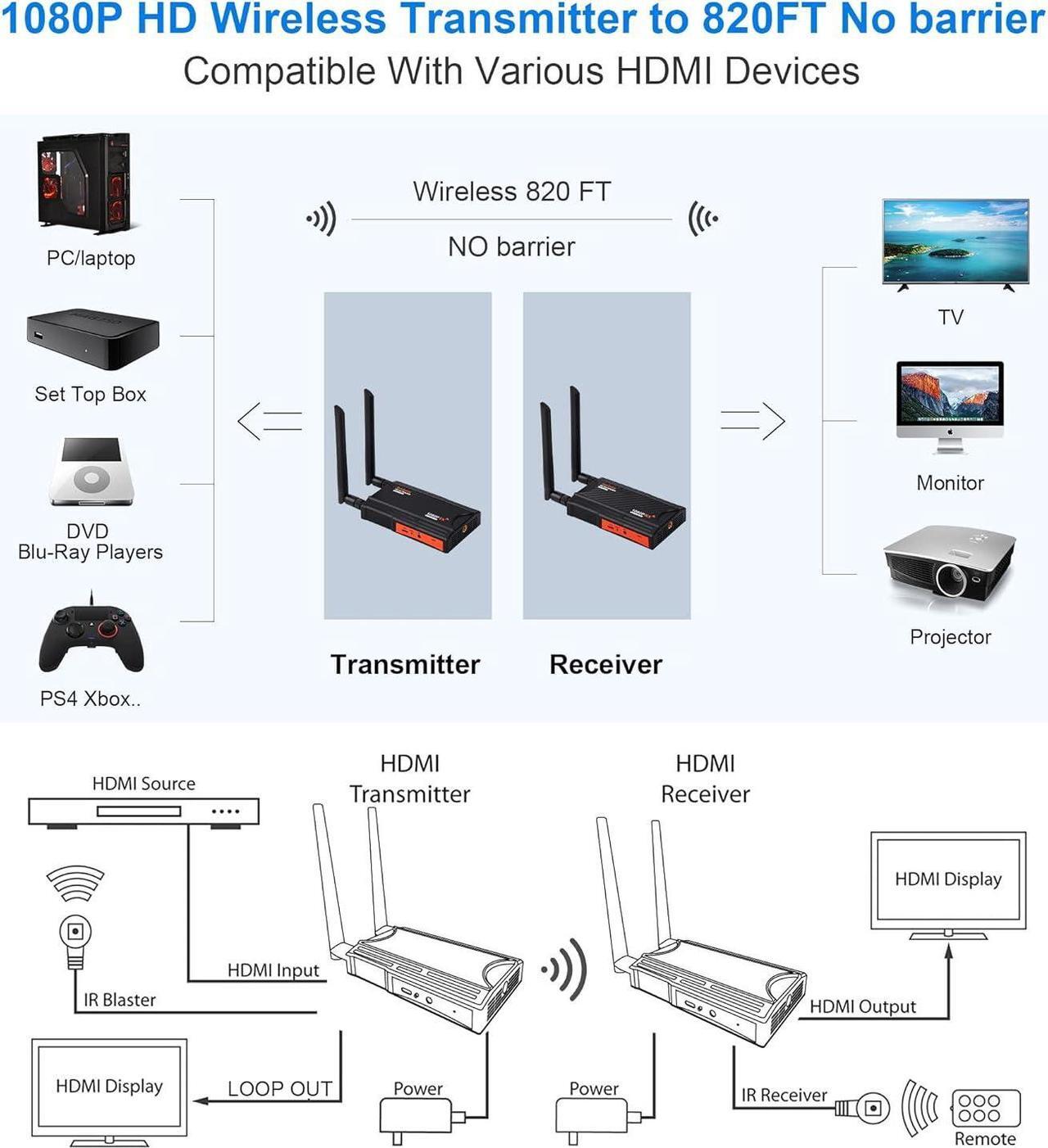

1. First connect the HDMI cable, the signal source connect Sender (transmitter) IN input; local display device connect Sender (transmitter) OUT output.
2. Then connect the receiver to a remote display device (such as a television, a splicing screen and so on).
3.
IR remote control function: pay attention to the infrared head of the sender should face and close to the signal source.
Supports vivid, high-definition videos up to 1080p @60Hz. Compatible HDMI 1.3, HDCP 1.4 (High-bandwidth Digital Content Protection) and Loop out 1080P full HD signal to the local monitor.

Resolution supported: 1080p@60Hz /1080p@60Hz/ 1080p@24Hz / 1080p@25Hz / 1080p@30Hz / 720p@50Hz / 720p@60Hz / 576i@50Hz / 480p@60Hz

Add each new RX, the new RX need to be paired with TX at the first time.
