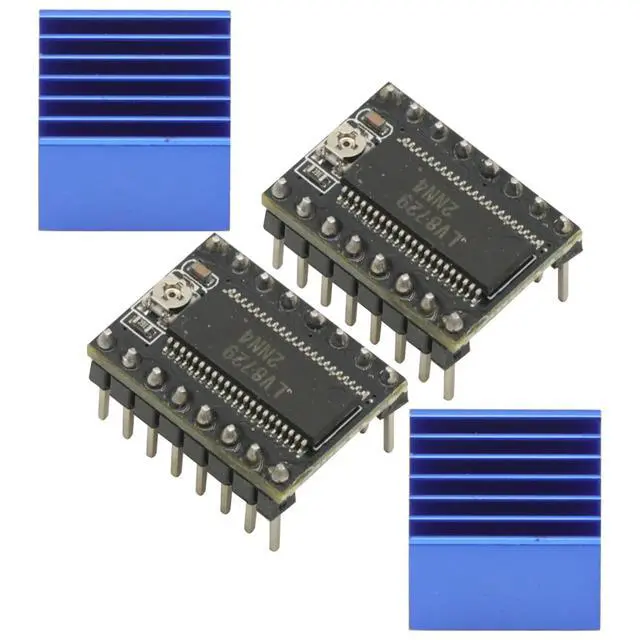

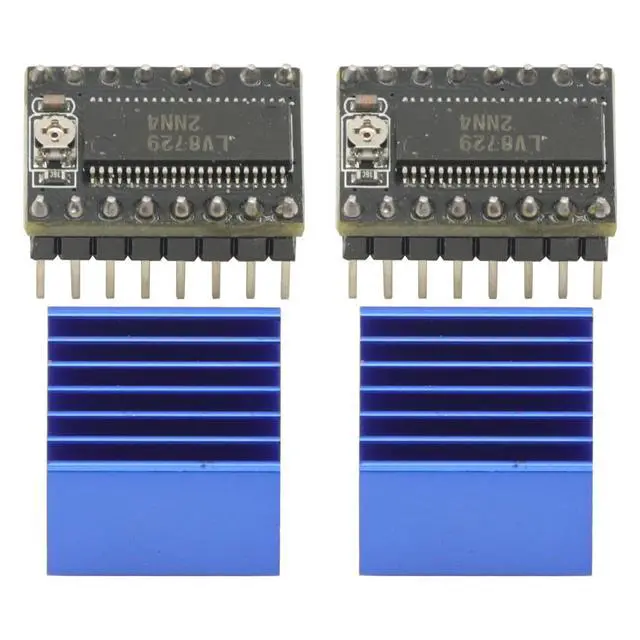

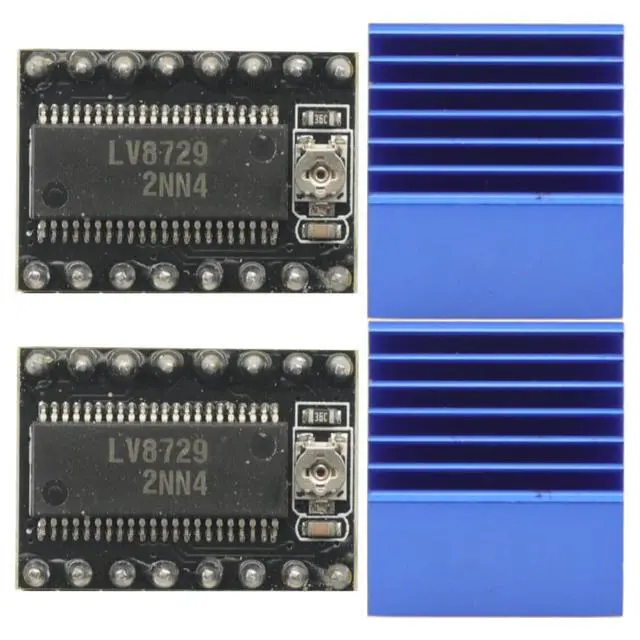

2Pcs LV8729 Stepper Motor Driver 4-Layer PCB Driver with Heatsink Silent Design Support 6V-36V Full Microstep Driver Controll for 3D Printer

Product description LV8729 Stepper Motor Driver 4-layer Substrate Ultra Quiet Driver LV8729 Driver Support 6V-36V Full Microstep Driver Controll LV8729 driver module with 128 subdivisions is a good choice for Nema stepper motor whose current is less than 1.5A, which makes motor steady, quiet and precise.

Specifications

:
Dimensions: 1.5 mm * 2.0 mm (Same with the A4988 and
DRV8825) Maximum drive current: 1.5A (Default 0.8A )
Operating voltage: 6V-36V, the proposed voltage is 12V

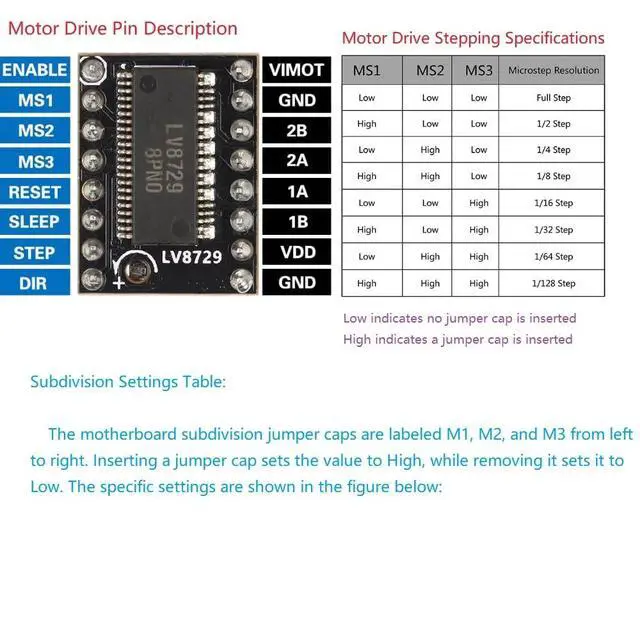

Support subdivisions: 1, 1/2, 1/4, 1/8, 1/16, 1/32, 1/64, 1/128
Product Process: four layer PCB board In the 64 subdivision or 128 subdivision to have a better ultra-quiet effect.

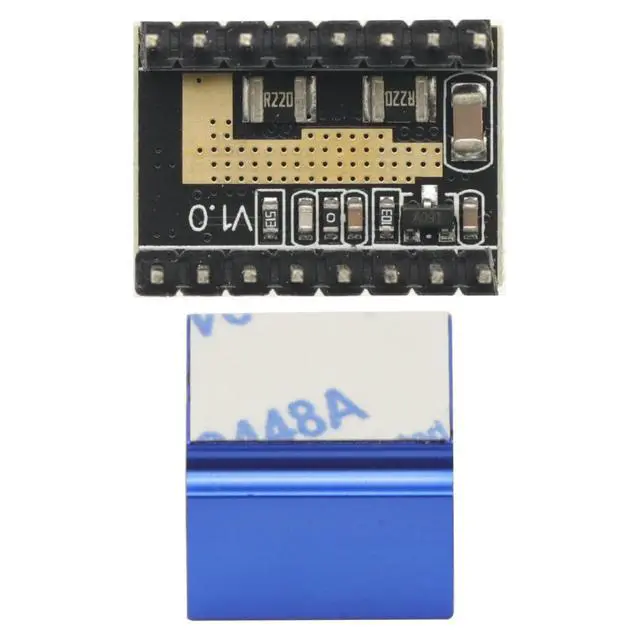

Shipping list: LV8729 * 1pc heat sink with sticker * 1pc
Note: Please make sure the connecting direction is right, or it will probably burn the driver chip and controller board. Recommend to do a good job of cooling for the module. Driver current algorithm and its adjustment:
1.
Driver current algorithm: i=Vref/ 0.5, the default Vref about 0.4V, so the default current 0.8A, and maximum current 1.5A
2. Please DO NOT connect the motors when measuring the voltage, or it\'s easy to burn the drive.
3. Please connect both the power supply and the USB for power when measuring the voltage.
4. Minor adjustment for potentiometer driver. Adjust it again after measurement to avoid burning driver by excessive current.
5. To increase the current by rotating the potentiometer clockwise slowly, and anticlockwise to reduce.

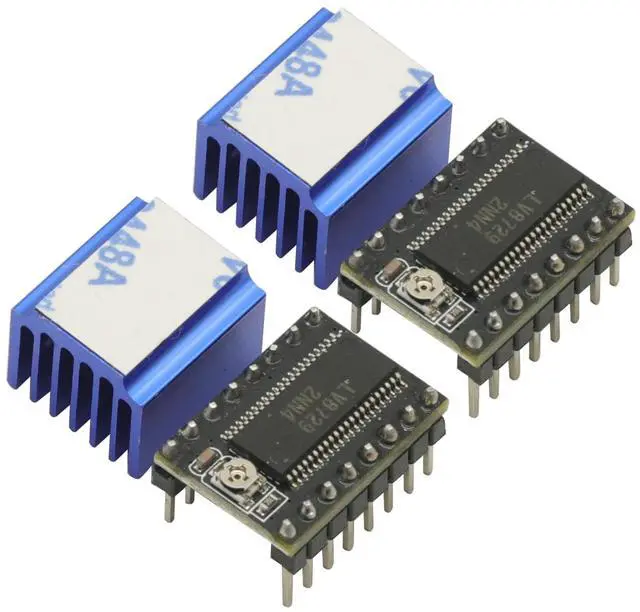

LV8729 Increases Heat Dissipation Tips: To consider heat, LV8729 uses four layers of PCB to dissipate heat, meanwhile, the chip is attached with heatsink, which is default 1A. SinceLV8729 motor drive subdivision is relatively large, in order to the stable operation of the 3D printer, any stepper motor is to actively dissipate heat, for example, using fan, hanging heat sink, or installing a large fan for your cotroller board.
