Tripp Lite 4-Port Mini DisplayPort to HDMI Multi Stream Transport Hub, MDP 1.2, MDP to HDMI, 3840x2160 4K x 2K @ 24/30Hz (B155-004-HD-V2)

Tripp Lite 4-Port Mini DisplayPort to HDMI Multi Stream Transport Hub, MDP 1.2, MDP to HDMI, 3840x2160 4K x 2K @ 24/30Hz (B155-004-HD-V2)


Item Condition: New

Brand: tripp lite
Manufacturer: TRIPP LITE
Item model number: B155-004-HD-V2
Size: 1

Product Information

- Displays the same Image on 4 HDMI monitors, Extends the desktop across all four, or combines all into one large monitor
- Supports UHD video resolutions up to 3840 x 2160 (4K x 2K)
- Supports DTS-HD, Dolby TrueHD and 7.1 -Channel surround Sound

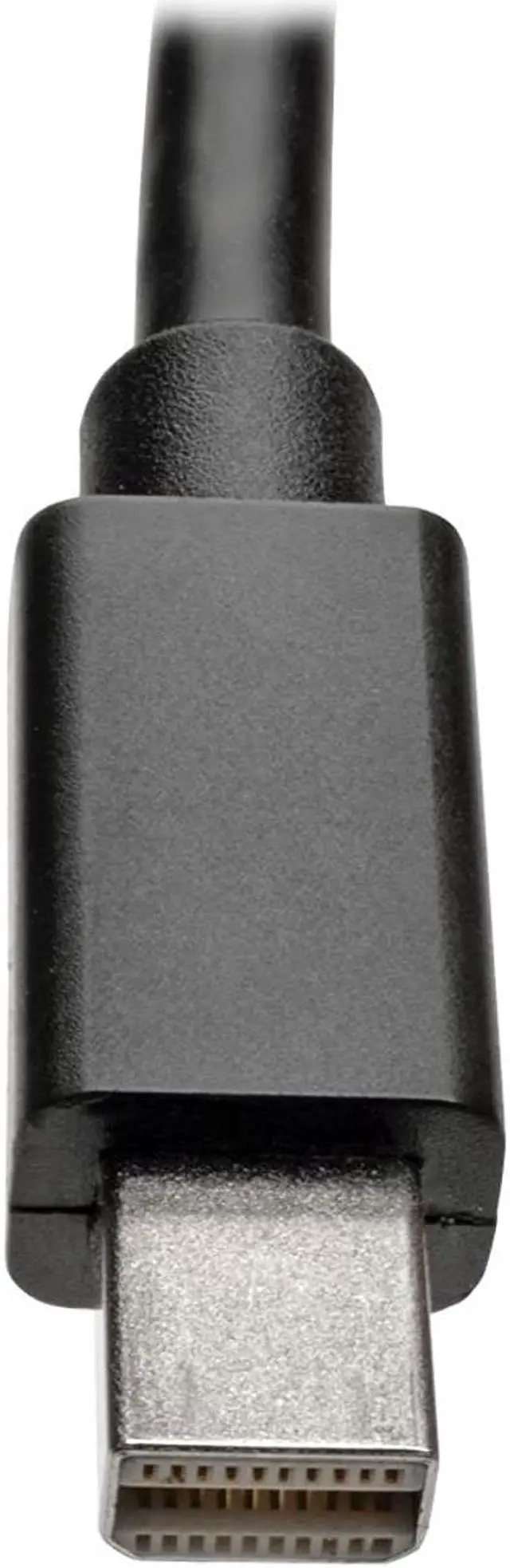

- Works with all operating systems. Built-in 6 inch cable connects directly to Mini DisplayPort source

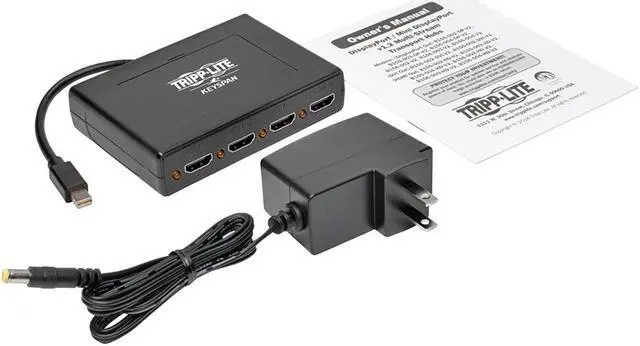

- AC Adapter- Input 100-240V, 50/60Hz, 0.5A. Output- 5V, 2A, 5 feet
- 3-year limited warranty

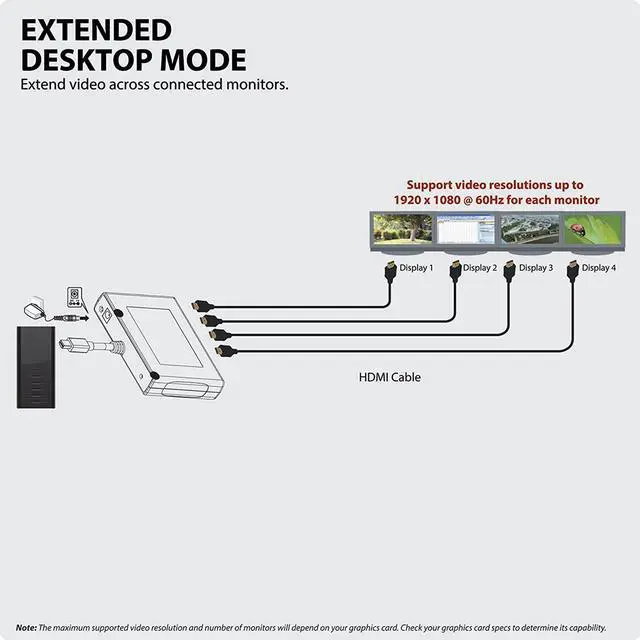

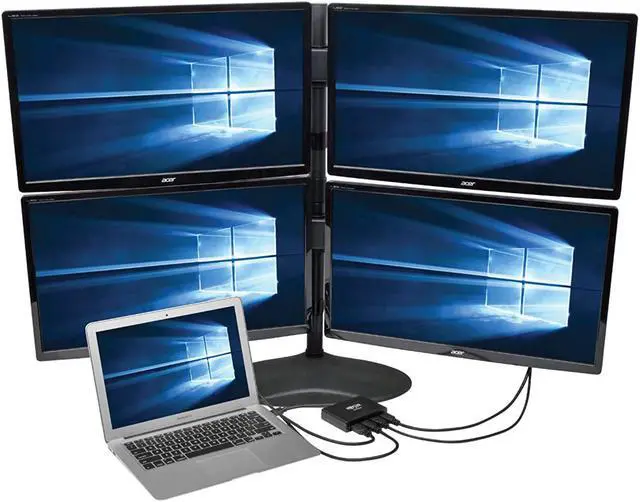

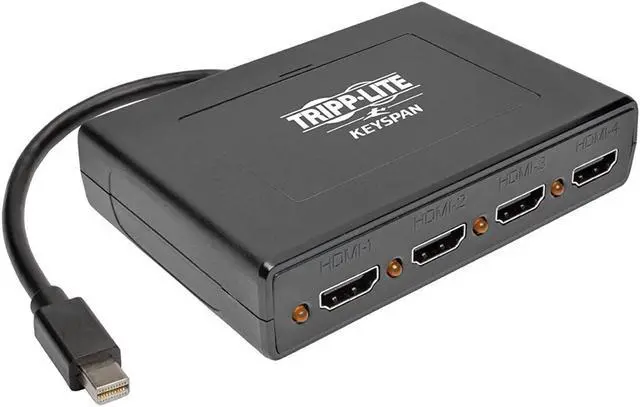

The B155-004-HD-V2 4-Port Mini DisplayPort 1.2 to HDMI MST Hub connects up to four HDMI monitors to the Mini DisplayPort (MDP) output on your computer. Ideal for digital signage in schools, churches, conference rooms, trade shows, hotels and retail outlets, this hub allows you to display the same image on all four monitors, extend the desktop across them, or combine all four as one large monitor in video wall mode.

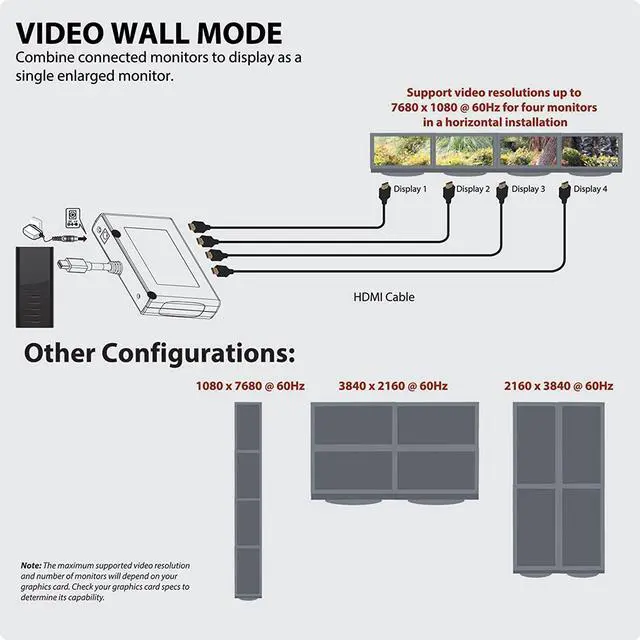

The B155-004-HD-V2 is compliant with DisplayPort 1.2 and backward compatible with versions 1.1 and 1.1 a with the feature set being limited to that of your equipment. It supports high-definition video resolutions up to 1920 x 1080 (1080p) per monitor. In video wall mode, it supports expanded resolutions, such as 3840 x 2160 (4K x 2K) in a 2 x 2 monitor configuration or 7680 x 1080 in a vertical 4 x 1 configuration.

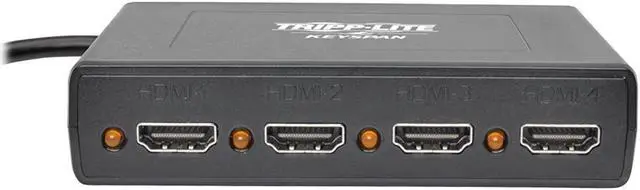

This MST hub also supports HDCP, EDID, DDC and 48-bit Deep Color (16 bits per channel), as well as DTS-HD, Dolby TrueHD and 7.1 -channel surround sound audio. It works with all operating systems. Plug-and-play convenience means no software or drivers are needed. A built-in six-inch cable connects directly to a MDP source. LEDs indicate when the monitors are receiving a signal. The B155-004-HD-V2 complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Computer with DisplayPort 1.2 -compatible graphics card (e. g. AMD Radeon with AMD Eyefinity) required for video wall mode. Backward compatible with most DisplayPort 1.1 a equipment running current graphics drivers with feature set limited to that of your equipment. Compatibility with older graphics cards not guaranteed.
Maximum supported video resolutions and number of monitors depend on your graphics card. Check graphics card specifications to determine its capabilities.
1-Year Limited Warranty 3-year limited warranty
